1) General Description
The machine is built in 1 and 2 steam
group versions and is essentially composed
of the following parts:
• Dispensing tap(s).
2) Description of the various parts
• Steam Boiler
The Steam Boiler consists of a cylindrical
tank, which is made of AISI 300 series
stainless steel. Each unit is subjected to a
hydraulic test, at a pressure of 6 bar, and
has an operating pressure of 1.7-1.8 bar.
The following is a list of effective volumes
and power ratings according to the number
of groups installed:
1 steam boiler 4,6 liters 3600 Watts
Covers are welded at either end of the
cylindrical tank and on one of them there
is a housing for the water heating element,
which allows the steam boiler to reach
operating pressure within approximately
10 minutes. The steam boiler has various
fittings used for safety devices, for
supplying hot water and steam, and for the
heating element.
It consists of AISI 300 stainless steel
tubes. Heating is accomplished through an
immersion-type plated heating element.
• Operating pressure of 1.7-1.8 bar,
controlled automatically
pressure switch.
• The pressure is displayed by means of a
pressure gauge with a scale of 0 to 3 bar.
• Safety device, based on an expansion
type mechanical valve, with counter-acting
spring adjusted to 2.5 bar.
• Testing: hydraulic test at 6 bar performed
on ready-to-use small boilers, at our
factory.
• Dispensing groups
They consist of a precision casting made
of stainless steel. The Modbar steam tap
is operated via a lever handle located on
top of the tap. This handle actuates a
valve that allows steam to pass through
the steam wand. To dispense steam, move
the lever handle from the closed position
to the open position.
• Exterior cover
The exterior consists of painted and
stainless sheet steel panels. To provide
good aesthetics, to optimize ergonometrics
for the operator and to reduce the chance
of damage to a minimum.

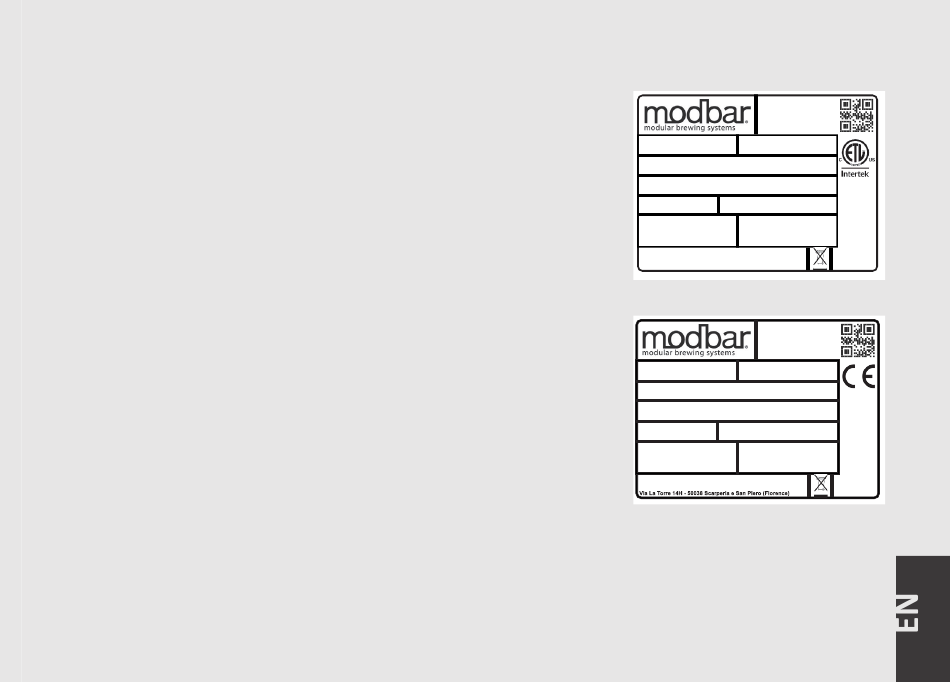

• Machine ETL plate:
through a
MODEL:
New Steam System
208 Vac / 13A / 2,704W / 60hz. / 1-Phase
220-240 Vac / 14,4A / 3,306W / 60hz. / 1-Phase
CAPACITY: 4.6L
WATER SUPPLY:
3.8 l/min
MIN 0.24 MPa - MAX 0.6 MPa
CONFORMS TO UL STD 197
CERTIFIED TO CSA STD C22.2 NO.109
• Machine CE plate:
MODEL:
New Steam System
220-240 V / 50/60Hz
14.4A / 3306W
CAPACITY: 4.6L
WATER SUPPLY:
3.8 l/min
MIN 0.24 MPa - MAX 0.6 MPa
CONFORMS TO UL STD 197
CERTIFIED TO CSA STD C22.2 NO.109
SERIAL #:
PR000000
MFG. DATE:
08/01/2018
MAX. PRESSURE: 0.25 MPa
READ OPERATING
MANUAL BEFORE USING
THIS EQUIPMENT
MADE IN
ITALY
SERIAL #:
PR000000
MFG. DATE:
01/08/2018
MAX. PRESSURE: 0.25 MPa
READ OPERATING
MANUAL BEFORE USING
THIS EQUIPMENT
MADE IN
ITALY
