Seite 1

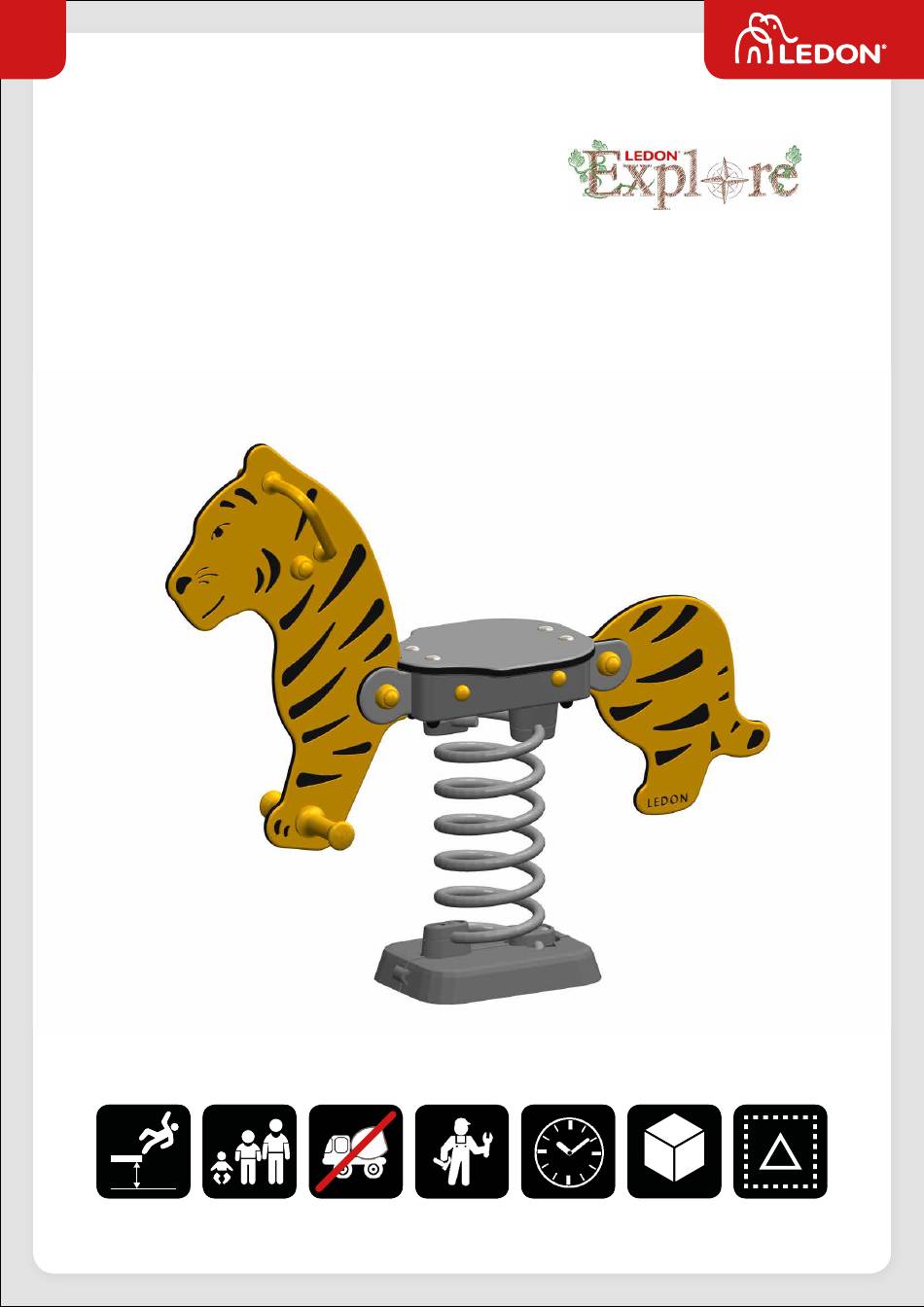

Revision: 2.0 EX010 Date: Apr. 09. 2019 Tiger Assembly instructions Montageanleitung • Montagevejledning (LxW) (LxWxH) 50 cm 106 x 27,5 x 87 cm 342 x 227,5 cm...
Seite 2
Good advice and tips Ein paar gute Ratschläge und Tipps • Gode råd og vejledning • Take all components from the pallet and place them on the ground • Compare with components list – is everything there? • Be at all times precise when measuring •...
Seite 3
Clearance and safety surfaces Platzbedarf und Fallschutzunterlage • Pladshensyn og faldunderlag Safety surface in accordance with EN 1176 Fallschutzunterlag gemäß EN 1176 Faldunderlag i overensstemmelse med EN 1176 (*) Areas are accurately calculated values which are difficult to achieve in practice. Height •...
Seite 4
Components overview Bauteileübersicht • Komponentoversigt Bolt bag M10x100mm BB M10x70mm MB M10x120mm MB M10 LN M10 Not top - Black Yellow top Yellow washer 400,10 2155172 2155173 400,002 2450089 37215 4040010...
Seite 5
Site preparation Vorbereitung • Pladsforberedelse Digging depths • Grabtiefen • Gravedybder: 55cm 227,5 cm 40 cm 93,5 cm 93,5 cm...
