Seite 1

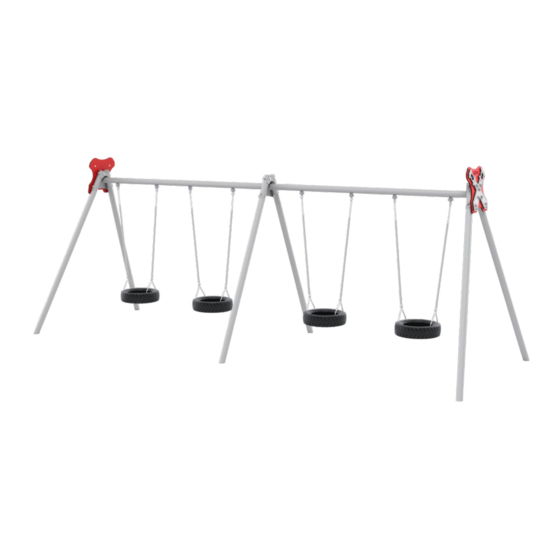

Assembly instructions Version: 1.0 Montageanleitung • Montagevejledning Date: April 1, 2019 1185 EX/EXA/LC 1185-0 EX/EXA/LC Metal swing frame Metallschaukelgestell • Metalgyngestativ 1185EX 1185EXA 1185LC (LxW) (LxWxH) 129 cm Yes • Ja 635 x 227 x 224* cm 635 x 706 cm * Height without decoration –...
Seite 2
Good advice and tips Ein paar gute Ratschläge und Tipps • Gode råd og vejledning • Take all components from the pallet and place them on the ground • Compare with components list – is everything there? • Be at all times precise when measuring •...
Seite 3
Clearance and safety surfaces Platzbedarf und Fallschutzunterlage • Pladshensyn og faldunderlag Safety surface in accordance with EN 1176 If seats are placed at different heights, than specified in the installation instructions, compliance with the EN1176 safety rules cannot be guaranteed. Fallschutzunterlage gemäß...
Site preparation Vorbereitung • Pladsforberedelse Scale • Maßstab • Målestok: 1:50 Digging depth Safety surface Grabtiefe • Gravedybde: Fallschutzunterlage 80 cm Faldunderlag 205 cm 205 cm 706 cm 205 cm 60 cm 60 cm...
