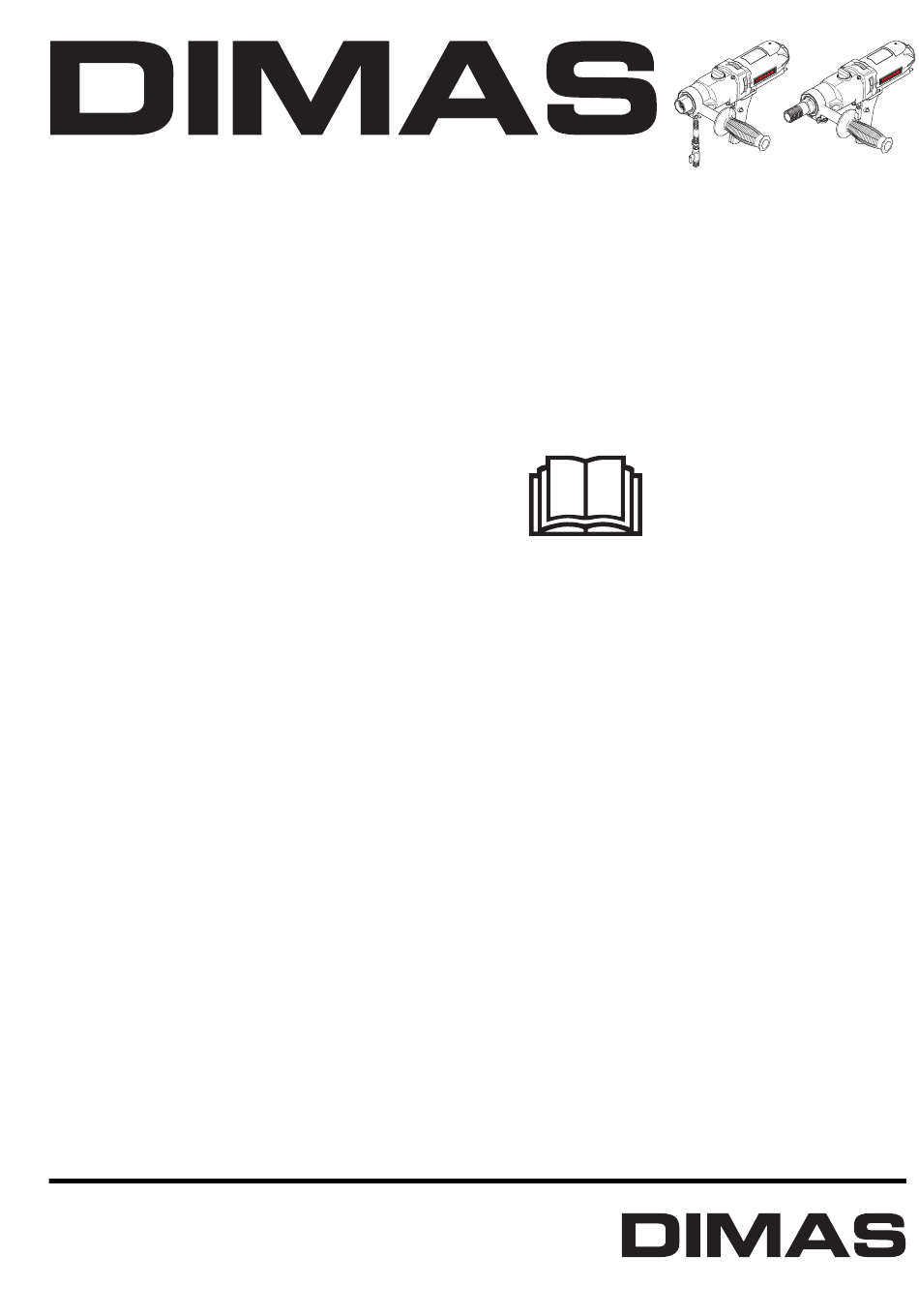

DIMAS DM 225
DIMAS DM 225 D
Operator's manual
Read these instructions carefully and
make sure you understand them before
using DM 225/DM 225 D.
Manual de Instrucciones
Antes de utilizar DM 225/DM 225 D lea bien el
manual de instrucciones hasta
comprender su contenido.
Bedienungsanweisung
Lesen Sie die Bedienungsanweisung
sorgfältig durch und machen Sie sich
mit dem Inhalt vertraut, bevor Sie
DM 225/DM 225 D benutzen.
Manuel d'utilisation
Lire attentivement et bien assimiler le
manuel d'utilisation avant de se servir
DM 225/DM 225 D.
Werbung
Verwandte Anleitungen für DIMAS DM 225
Inhaltszusammenfassung für DIMAS DM 225
- Seite 1 Read these instructions carefully and make sure you understand them before using DM 225/DM 225 D. Manual de Instrucciones Antes de utilizar DM 225/DM 225 D lea bien el manual de instrucciones hasta comprender su contenido. Bedienungsanweisung Lesen Sie die Bedienungsanweisung sorgfältig durch und machen Sie sich...
- Seite 2 Read, understand and follow all Always use eye and ear Read all the operating instructions warnings and instructions in these protectors when using the before using or carrying out service procedures on the machine. operating instructions and on the machine. machine.
- Seite 3 WARNING! Under no circumstances may the machines be modified from the original designs without the manufacturer’s approval. Unapproved modifications can result in serious personal injury or even death. WARNING! These machines can be dangerous if they are used improperly or without due care and such use can lead to serious accidents or, in the worst case, fatal accidents.
- Seite 4 Contents Safety Instructions __________________________________________________________________ 6 Presentation ______________________________________________________________________ 10 Technical Data ____________________________________________________________________ 11 What Is What? ____________________________________________________________________ 12 Operation ________________________________________________________________________ 13 Care and Maintenance ______________________________________________________________ 19 EU Declaration of Conformity to Directive _______________________________________________ 22 Índice Instrucciones de seguridad ___________________________________________________________ 7 Presentación _____________________________________________________________________ 10 Datos técnicos ____________________________________________________________________ 11 Componentes de la máquina _________________________________________________________ 12 Manejo __________________________________________________________________________ 13...
- Seite 5 During the design and manufacture of Dimas products, great importance is placed on safety, as well as effectiveness and ease of use. This machine is for drilling in concrete, brick and various stone materials. All other use is improper.
- Seite 6 También es posible prevenir accidentes utilizando el sentido común. En el diseño y fabricación de los productos Dimas se ha puesto un gran énfasis en la seguridad, además de la efectividad y la facilidad de manejo.
- Seite 7 Darstellung aller möglichen Gefahrensituationen enthalten, die bei der Benutzung des Geräts aufkommen können. Wer jedoch stets den gesunden Menschenverstand einsetzt, kann Unfällen selbst vorbeugen. Bei der Konstruktion und Herstellung von Dimas Produkten wurde neben der Leistungsfähigkeit und Benutzerfreundlichkeit größtes Gewicht auf die Sicherheit gelegt.
- Seite 8 Lors de la conception et de la fabrication des produits Dimas, un soin particulier a été apporté à la sécurité des machines, outre leur efficacité et leur simplicité d’utilisation.
- Seite 9 Fig. 1 Fig. 2 Presentation The DM-225 and the DM-225 D are electric handheld drills, The machines are equipped with Softstart™, an electronic intended for drilling concrete, brick and various stone current limiter, and Smartstart™, which reduces the motor materials. They are designed for drilling in confined spaces speed.
- Seite 10 Fig. 3 Technical data (GB, US, CAN) Rated Voltage _____________________________ 100-120V Spindle Thread ____________________________ G 1/2" Rated Power _____________________________ 1800 W Water Connection _________________________ G 1/4" Rated Current ____________________________ 15 A Weight __________________________________ 5,2 kg Max Drill ø with Rig ________________________ 130 mm(5") Stand Max Drill ø, Hand-held ______________________ 60 mm (2 1/2") The DM-225 and the DM-225 D are suited to...
- Seite 11 Fig. 4 What Is What? Button for locking the switch a. Drill spindle g. Spirit level (3 pcs) b. Cooling system connector h. Inspection hatches c. Screws holding together the gearbox and the motor (4 screws) Gear knob d. Smartstart™ Leakage hole e.
- Seite 12 Fig. 5 Operation Before Starting • The power connection is made using a protected, Make sure that: earthed outlet with an output voltage that agrees with the voltage that is stated on the plate on the top of the • No unauthorized persons are near the work area.
- Seite 13 Fig. 6 Fig. 7 • The right clothes and protective equipment are in use. Starting the Machine 1. Set the working speed by turning the drill spindle while • The water-cooling or dust extractor is attached to the moving the gear knob to the desired position (Fig. 7). machine (b in Fig.
- Seite 14 Drilling When drilling in roofs and the like: Changing speed: • Use a water collector to avoid water penetrating into the machine. • Speed changes may only be made when the machine is switched off. • The machine must be covered with plastic or the like in order to prevent water penetrating into the machine.
- Seite 15 Using the Machine Consider the following when using the machine: • Keep your hands at a safe distance from the drill spindle • When using Smartstart™, the machine has a very low and drill bit when the machine is running. power output.
- Seite 16 Slip clutch: Electronic overload protection: The machine is equipped with an electronic and a This protection comes into effect when the motor has been mechanical slip clutch. The electronic clutch makes the overloaded for a short time. If the machine gets stuck in the motor pulse when the machine is overloaded above a material, the power is cut immediately.
- Seite 17 Fig. 8 Changing the Drill Bit In order to change the drill bit, do as follows: 1. Pull out the plug. 4. Apply water-resistant grease to the thread of the new drill bit. 2. Get: 5. Attach the drill bit using the open-end spanners (Fig. 8). •...
- Seite 18 Fig. 9 Care and Maintenance Electricity Supply • Inspect all cables, extension cables and outlets regularly The lifetimes of the DM-225 and the DM-225 D can be in order to detect any damage or faults early. extended considerably if they are used, cared for and maintained in the proper manner.
- Seite 19 Fig. 10 Fig. 11 Changing the Gearbox Oil 3. Remove the four screws (c in Fig. 10) that hold together The oil in the gearbox shall be changed after every 400 the motor and the gearbox. hours of operation. Do as follows: 4.
- Seite 20 Fig. 12 Fig. 13 5. Pull the carbon brush out from the holder (III in Fig. 13). 6. Insert the new carbon brush. Check that is slips easily Changing the Carbon Brushes into the holder. If not, clean the holder. The carbon brushes shall be removed and inspected weekly if the machine is used daily.
- Seite 21 EU Declaration of Conformity to Directive Dimas AB, Box 2098, SE-550 02 Jönköping, Sweden, tel: +46 36 570 60 00, hereby declares that the drill motor DIMAS DM 225/ DM 225 D, from 01001 and upwards, is manufactured in accordance with the Council’s directive 98/37/EG concerning machines, 73/23/EEG ”Low Voltage Equipment Directive”...
- Seite 22 531 07 99-01 2003W09...
