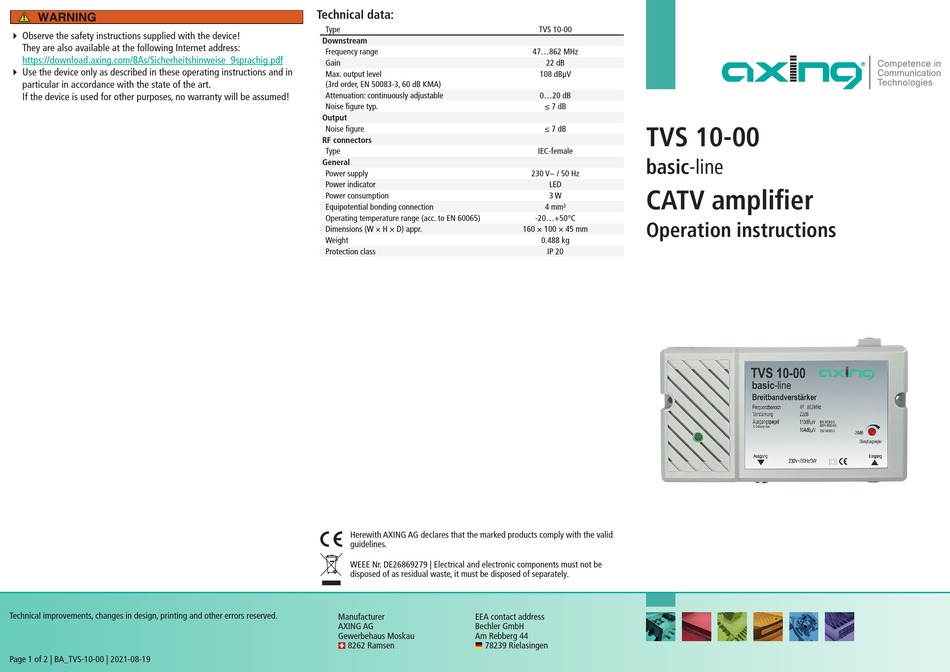

axing TVS 10-00 Betriebsanleitung Seite 3

 Observe the safety instructions supplied with the device!
They are also available at the following Internet address:
https://download.axing.com/BAs/Sicherheitshinweise_9sprachig.pdf
 Use the device only as described in these operating instructions and in
particular in accordance with the state of the art.
If the device is used for other purposes, no warranty will be assumed!
Technical improvements, changes in design, printing and other errors reserved.
Page 1 of 2 | BA_TVS-10-00 | 2021-08-19
Technical data:
Type
Downstream
Frequency range
Gain
Max. output level
(3rd order, EN 50083-3, 60 dB KMA)
Attenuation: continuously adjustable
Noise figure typ.
Output
Noise figure
RF connectors
Type
General
Power supply
Power indicator
Power consumption
Equipotential bonding connection
Operating temperature range (acc. to EN 60065)
Dimensions (W × H × D) appr.
Weight
Protection class
Herewith AXING AG declares that the marked products comply with the valid
guidelines.
WEEE Nr. DE26869279 | Electrical and electronic components must not be
disposed of as residual waste, it must be disposed of separately.
Manufacturer EEA contact address
AXING AG Bechler GmbH
Gewerbehaus Moskau Am Rebberg 44
8262 Ramsen 78239 Rielasingen
TVS 10-00
47...862 MHz
22 dB
108 dBµV
0...20 dB
≤ 7 dB
TVS 10-00
≤ 7 dB
IEC-female
basic-line
230 V~ / 50 Hz
LED
CATV amplifier
3 W
4 mm²
-20...+50°C
Operation instructions
160 × 100 × 45 mm
0.488 kg
IP 20
