EN

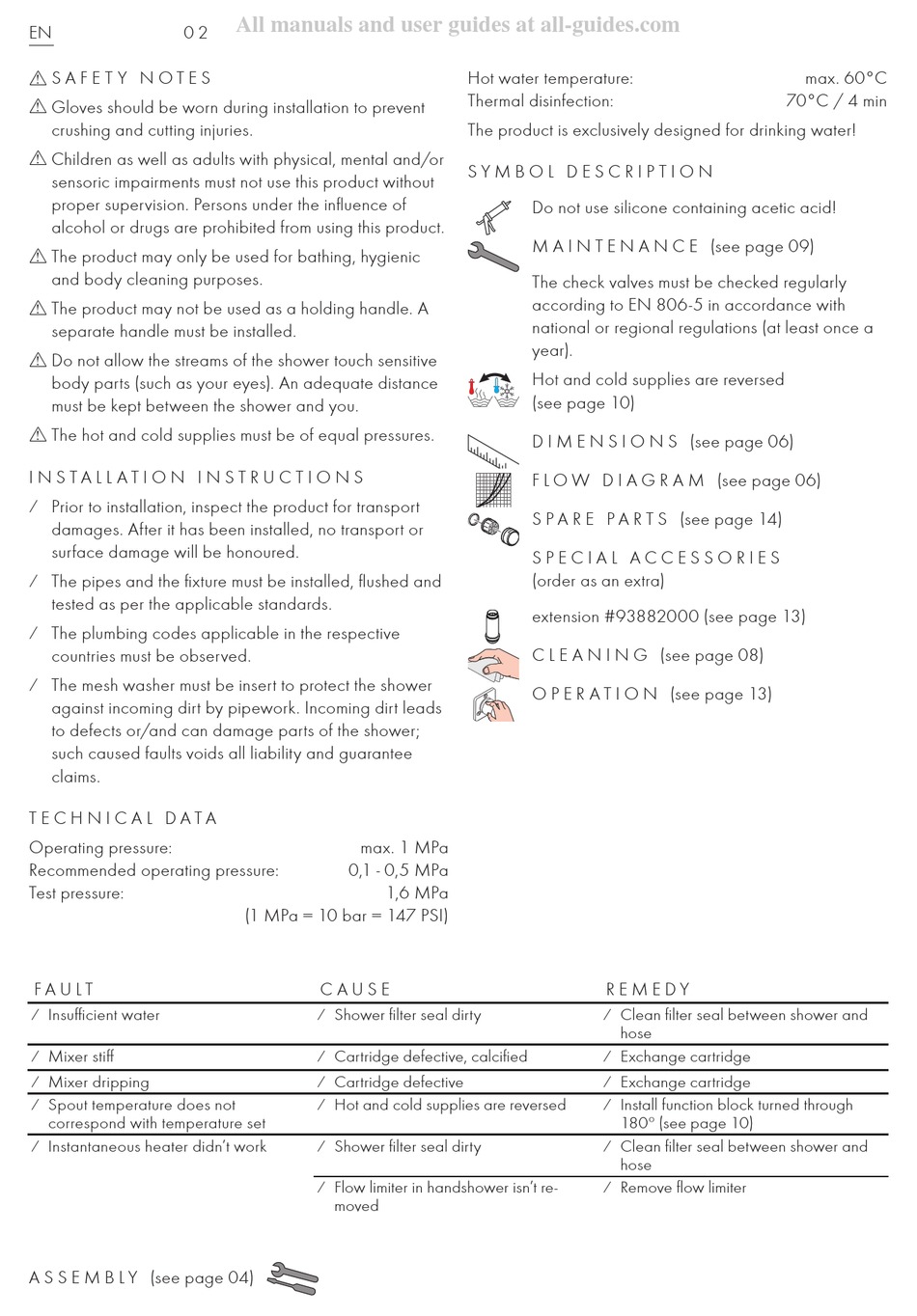

0 2
S A F E T Y N O T E S
Gloves should be worn during installation to prevent
crushing and cutting injuries.
Children as well as adults with physical, mental and/or
sensoric impairments must not use this product without
proper supervision. Persons under the influence of
alcohol or drugs are prohibited from using this product.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The product may not be used as a holding handle. A
separate handle must be installed.
Do not allow the streams of the shower touch sensitive
body parts (such as your eyes). An adequate distance
must be kept between the shower and you.
The hot and cold supplies must be of equal pressures.
I N S T A L L A T I O N I N S T R U C T I O N S
⁄ Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
⁄ The pipes and the fixture must be installed, flushed and
tested as per the applicable standards.
⁄ The plumbing codes applicable in the respective
countries must be observed.
⁄ The mesh washer must be insert to protect the shower
against incoming dirt by pipework. Incoming dirt leads
to defects or/and can damage parts of the shower;
such caused faults voids all liability and guarantee
claims.
T E C H N I C A L D A T A
Operating pressure:
Recommended operating pressure:
Test pressure:
F A U L T
⁄ Insufficient water
⁄ Mixer stiff
⁄ Mixer dripping
⁄ Spout temperature does not
correspond with temperature set
⁄ Instantaneous heater didn't work
A S S E M B L Y (see page 04)
All manuals and user guides at all-guides.com
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
(1 MPa = 10 bar = 147 PSI)
C A U S E
⁄ Shower filter seal dirty
⁄ Cartridge defective, calcified
⁄ Cartridge defective
⁄ Hot and cold supplies are reversed
⁄ Shower filter seal dirty
⁄ Flow limiter in handshower isn't re-
moved
Hot water temperature:
Thermal disinfection:
The product is exclusively designed for drinking water!
S Y M B O L D E S C R I P T I O N
Do not use silicone containing acetic acid!
M A I N T E N A N C E (see page 09)
The check valves must be checked regularly
according to EN 806-5 in accordance with
national or regional regulations (at least once a
year).
Hot and cold supplies are reversed
(see page 10)
D I M E N S I O N S (see page 06)
F L O W D I A G R A M (see page 06)
S P A R E P A R T S (see page 14)
S P E C I A L A C C E S S O R I E S
(order as an extra)
extension #93882000 (see page 13)
C L E A N I N G (see page 08)
O P E R A T I O N (see page 13)
R E M E D Y
⁄ Clean filter seal between shower and
hose
⁄ Exchange cartridge
⁄ Exchange cartridge
⁄ Install function block turned through
180º (see page 10)
⁄ Clean filter seal between shower and
hose
⁄ Remove flow limiter
max. 60°C
70°C / 4 min
