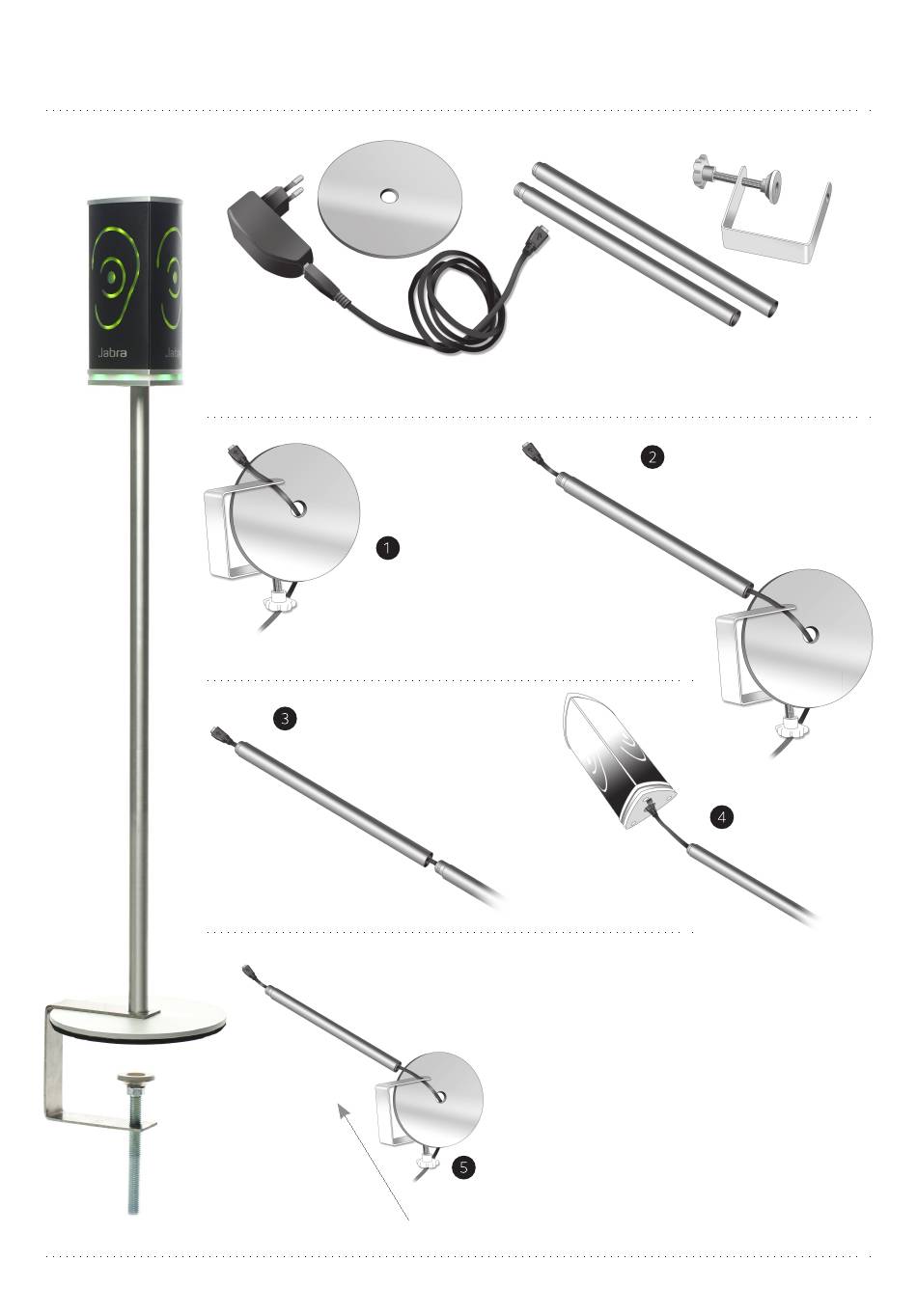

Mounting the Jabra Noise Guide to the table stand
UK · Quick star t · Jabra Noise Guide
1
All manuals and user guides at all-guides.com
Contents:
• Base
• Table grip
• Tube A
• Tube B exstension tube
Pass the cable through the disc
base, and then through the hole
in the table grip.
If the exstension tube is need-
ed, pull the cable
through tube B.
B
B
A
4. Assemble tube A and B. Screw tube AB onto
the base disc and connect the Jabra Noise
Guide to the power cable. Screw the Jabra
Noise Guide onto the tube. Mount to a flat sur-
face and tighten the screw on the table grip.
5. Please ensure that the cable comes out where
there is a hole in the disc base so the cable is
not pinched. IMPORTANT! In order to prevent
damage to your Jabra Noise Guide, we recom-
mend that you always use the table grip as
shown in this picture.
A
Insert the micro USB pin
and pull the cable through
tube A.
A
B
