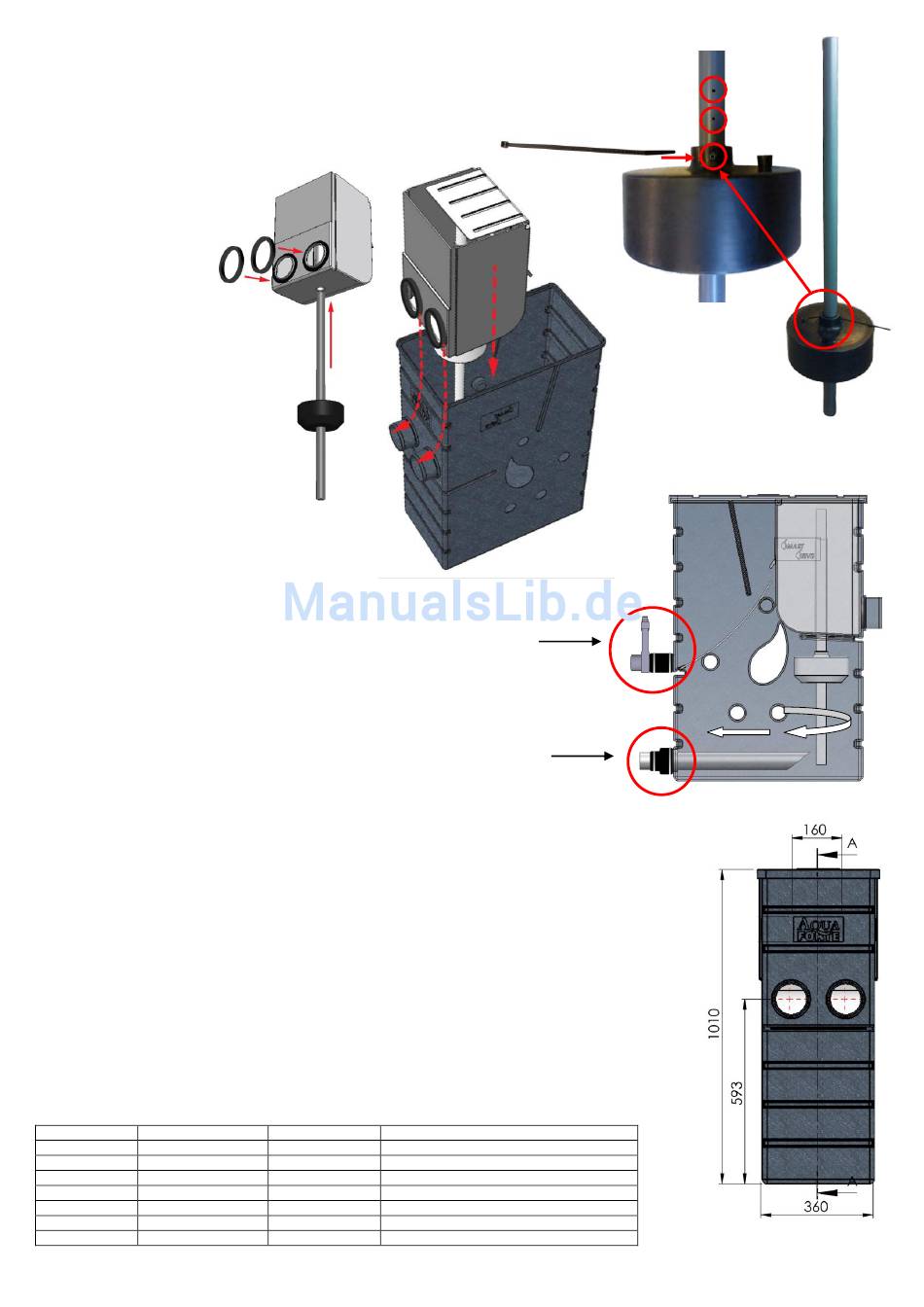

Mounting the floater
The floater height on the supplied PVC pipe will determine the water level underneath the sieve
screen when the pump is running. You can fasten the float with the supplied cable tie wrap. Before
you secure the tie wrap, first test the correct height by just sticking the tie wrap through the holes of
the float and PVC pipe! The highest position is for high flow rates (20-25m³/h), lowest position is for
low flow rates (± 5m³/h). The PVC pipe has 4 holes.
Mounting the
inner container
The inner container must
be sealed at the pipe
connections with the
supplied rubber foam rings.
Fix them around the pipe
connections of the inner
container and lower the
container with the float
pipe into the SmartSieve.
Firmly push the inner
container into the pipe
connections for maximum
sealing results. You can
check with your fingers on
the inside of the container
if the rubber rings are
positioned correctly.
Waste outlet
The SmartSieve comes with a 63mm (2") waste outlet that can be connected to the
supplied 50mm slide valve with the supplied flexible socket.
Pump connection
The SmartSieve comes with a flexible reducer fitting of 90 x 63mm (3" to 2"). The
90mm/3"part fits on the pump outlet of the SmartSieve and the 63mm/2" part can
be used to push a 63mm/2"pipe through towards the end of the SmartSieve to
prevent the pump from sucking in air bubbles.
Maintenance
It is recommended to monitor the SmartSieve every day. Maintenance is very easy because of the waste
outlet. In fact maintenance is about two operations:
1. To remove the waste that is on the surface of the sieve (every day).
2. To remove the waste that has gone into the profile wires of the sieve (only when necessary).
1. Removing the waste that is on the surface of the sieve is very easy by opening the waste outlet and to
rinse the waste away with a normal hose pipe. Another method to have water run over the screen is to
open the adjustable weir (G) which will flood the screen with water. When the adjustable weir is in a fully
open position already because of the pump speed you can push it closed for a short while and open it
again.
2. To remove the waste that has gone into the profile wires of the sieve you will need a hose pipe with a
powerful spray nozzle or a high-pressure machine. For this way of cleaning you have to place the sieve in
an upright position or take the sieve out of the unit.
Note: when you use the sieve for the very first time the surface of the sieve can also be covered
with a very thin film. Make sure you will clean the sieve very thorough with alcohol before using it
Technical Specifications
SIZE
HOUSING 67 x 36 x 101 cm
110 mm (4") outer Ø
INLET
90 mm (3") outer Ø
PUMP OUTLET
63mm (2")
WASTE
SIEVE BEND 450 x 345 mm
CAPACITY
WEIGHT
AquaForte is a trademark of Sibo BV Veghel www.aqua-forte.nl copyright Sibo BV version 1.01 2013
MATERIAL EXTRA INFO
PE
2 x 110 mm (4") inlet
PE
Comes with 90/63mm (3 x 2") flex. fitting
PE
Comes with 63/50mm (2 x 1½") flex. fitting
PVC Slidevalve
SS 304 300 micron
Max. 25 m³/h
±15 Kg. Incl. screen
.
