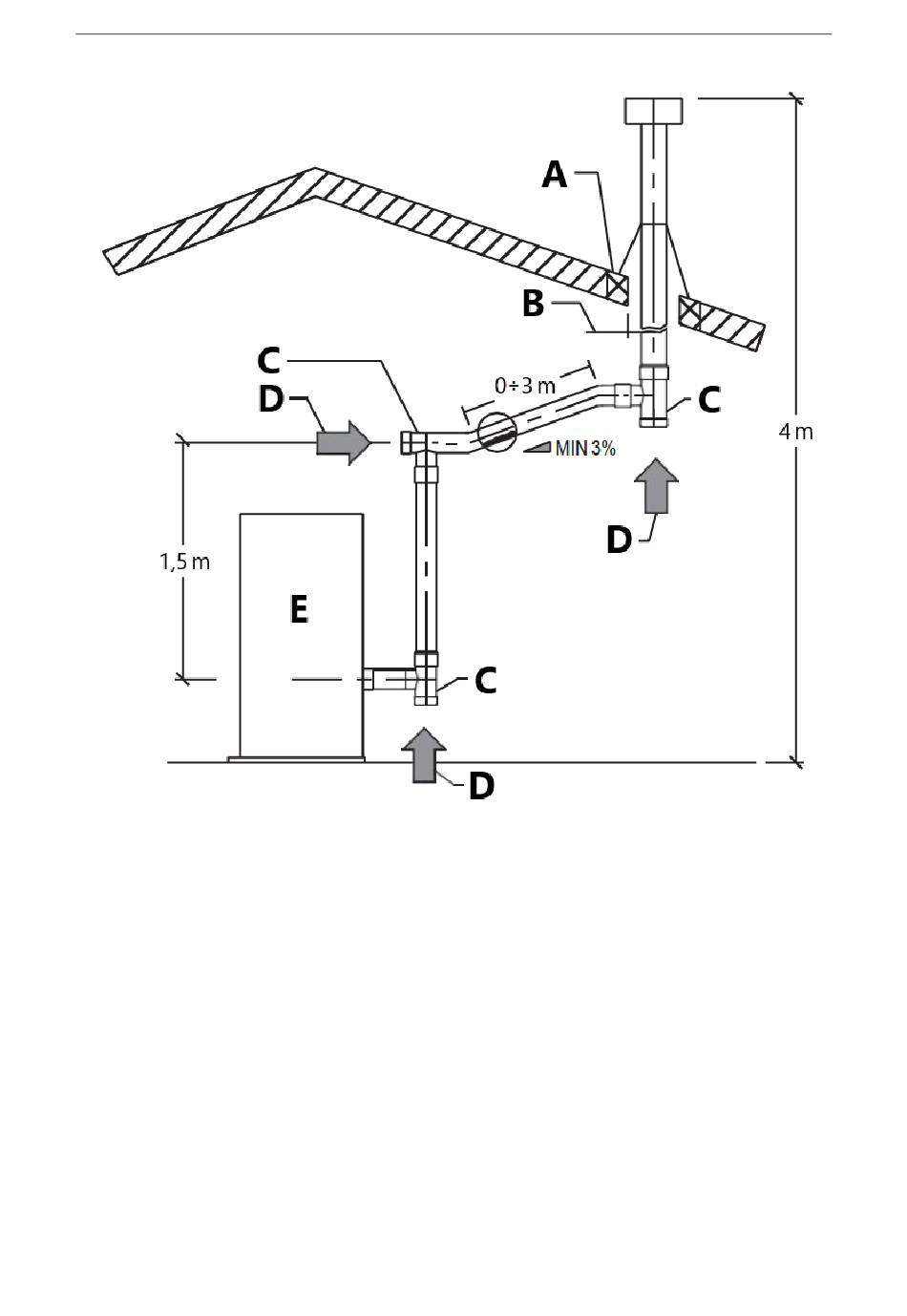

A - Insulting material
B - See vent manufacturer's instructions
C - Tee
D - Direction of cleaning
E - Pellet stove
Interior ventilation installation
This kind of installation provides the natural draft that results from a vertical rise avoiding
smoke being released into the house when electricity to the unitis interrupted while burning
or smoldering pellets remains in the burn grate.
General vent layout is shown in figure and the procedure is as follows:
Position the appliance in desired location according to appliance installation requirements.
- Use a plumb line to determine location of PL Vent penetration of ceiling.
EN
Fig. 9
