SCANGRIP CANVIK BASIC Bedienungsanleitung Seite 32

9.2
9.4
9.1
9.3
9.6
3
9.7.1 9.7.2

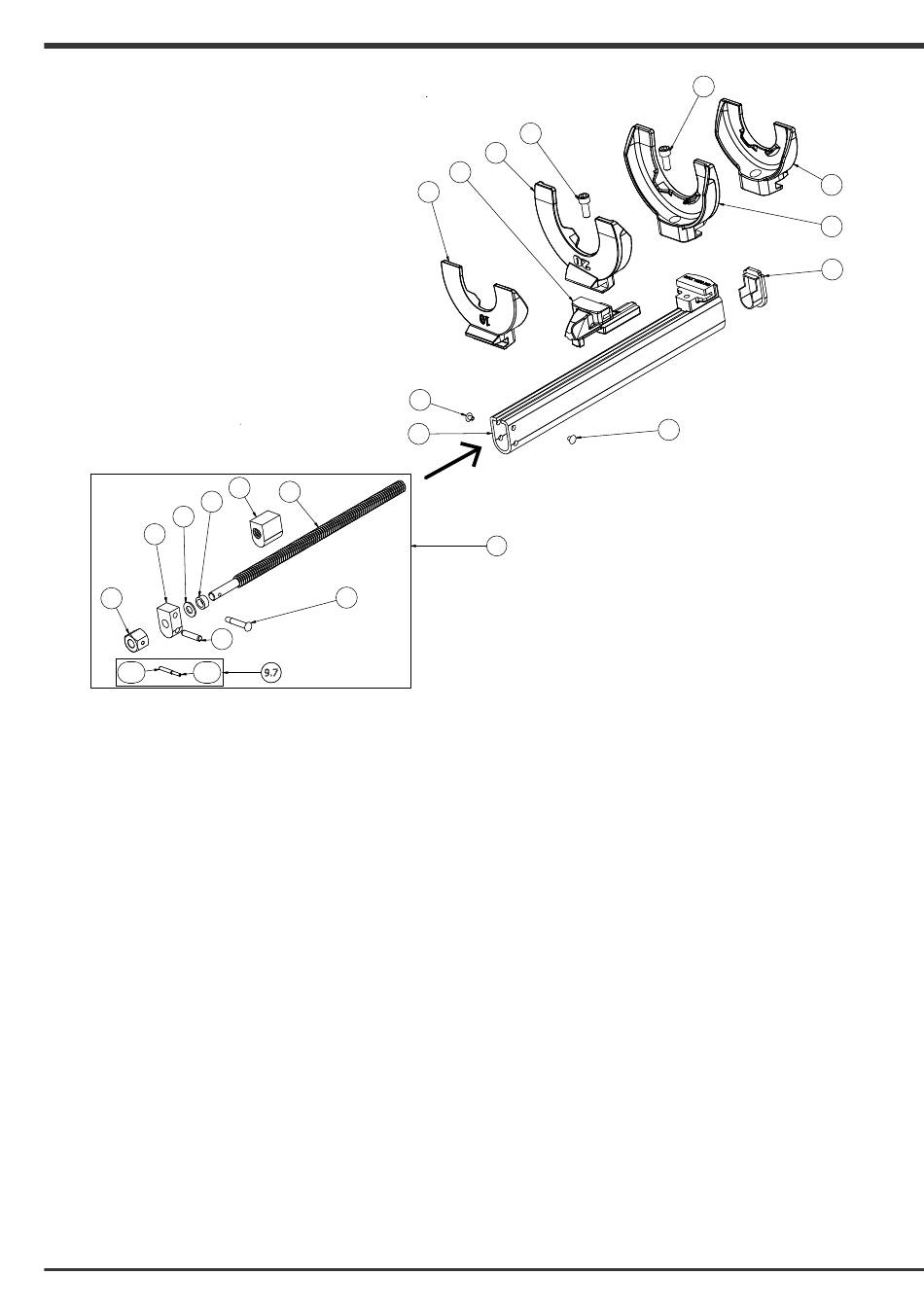

ITEM PART NO
1. 2 x 90.0020
2. 2x 87.1191.03
3. 1x 99.2250.09
4. 1 99.2250.07
5. 1x N/A
6. 1x 87.1191.11
7. 1x 87.1192
8. 1x 87.1191.02
9. 1x 87.1191.R
9.1 1x 99.2250.16
9.2 1x 99.2250.12
9.3 1x 99.2250.15
9.4 1x 99.2250.17
9.5 1x 99.2250.01
9.6 1x 87.1191.13
9.7 1x 87.1191.14
9.7.1 1x 113.505
9.7.2 1x 113.405
10 2x 90.0010
10
5
7
9.5
4
9.7
DESCRIPTION
Spring holder 145-195mm
Cylinder head cap srew
Spring-type straigth pins 8 x 36
Rivet 8x45mm
Polymer pin insert
Endcap
Spring compressor body 1500 kg
Mowable jar holder
Repir kit
Washer A
Nut-piece for compressor
Bearing-peace for compressor
Spacer for compressor
Spindle for compressor
Hexagon nut for compressor
Safety pin
Spring-type straight pins - slotted, light duty
Spring-type straight pins - slotted, light duty
Spring holder 80-145mm
2
1
8
9
2
10
1
6
5
