KNOW YOUR HEDGE CUTTER ATTACHMENT
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
HEDGE CUTTER ATTACHMENT. Compare the illustrations with your attachment to familiarize
yourself with the location of the various controls and adjustments. Save this manual for future refer-
ence.

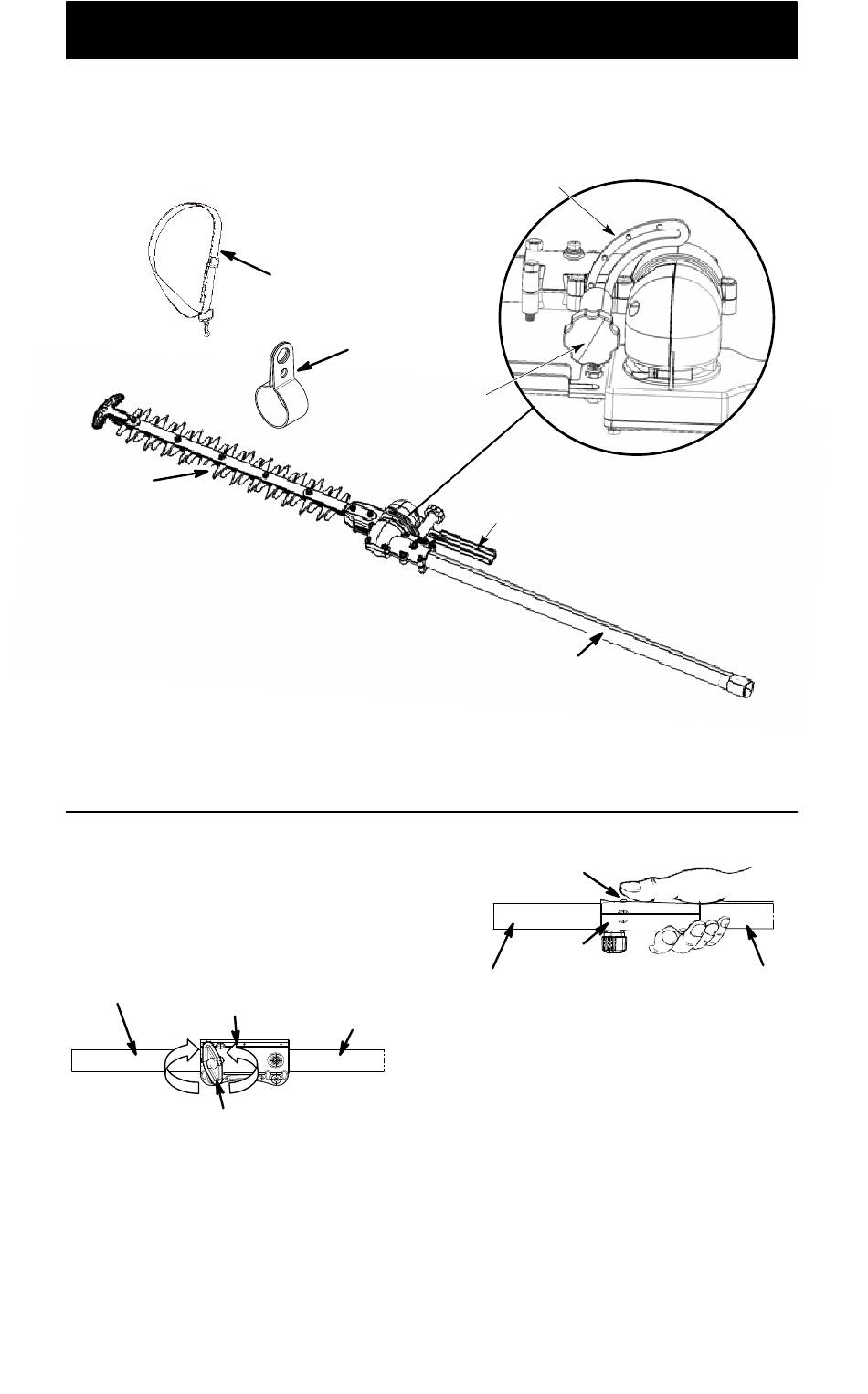

Blade
BLADE
The BLADE is designed to cut hedges.
REMOVING ATTACHMENT
CAUTION:
When removing or installing at-
tachments, place the powerhead and attach-
ment on a flat surface for stability.
1. Loosen the coupler by turning the knob
counterclockwise.
Lower
Attachment
Coupler
TIGHTEN
Knob
OPERATION
Angle Adjustment Track
Shoulder strap
Clamp Ring
Fixed Knob
Upper Shaft
LOOSEN
Angle
Adjustment
Holder
Shaft
ANGLE ADJUSTMENT HOLDER
The ANGLE ADJUSTMENT HOLDER is
used to adjust the angle of the hedge cutter
to suit the area you are trimming.
2. Press and hold the locking/release button.
Locking/Release
Button
Coupler
Lower Attachment
3. While securely holding the upper shaft,
pull the attachment straight out of the cou-
pler.
5
Upper Shaft
