HOTRONIX ®
F USION I Q
™
ITEM # PART NAME PART #
1 120V Locking Power Cord 2-1671
2 Fusion IQ Controller 1-2463
3 Fusion Overlay NextGen 1-2198-1
4 Fusion Control Housing 1-2197
5 Fusion IQ Power Board —
6 Fusion IQ Power Bracket 1-2473
7 Screw, Sheet Metal #6 x 1/2" 3-1011-235
8 Fusion IQ Latch 1-2474
9 Spring, 1/4" x 1", 1.7lbs/in 1-2485
10 Power Switch 1-2087
11 Power Inlet 1-1759
12 Screw, Machine #6-32 x 1/2" 3-1011-19
13 Nut, #6-32 Hex with Lockwasher 2-1006-50
14 Touchscreen Stylus Holder 1-2386
15 Touchscreen Stylus 1-2385
16 Circuit Breaker 20A (STX XF XRF) 1-1331
17 Thumbscrew #8-32 x 17/32" 1-2200
19 Fusion Inner Lift Arm (Silver, Thick) 1-2207
20 Fusion Outer Lift Arm (Thin Blue) 1-2208
21 Screw, Button Socket Head 1/4"-20 X 5/8" 3-1011-241
23 Fusion Bearing Cap 1-1301
24 Screw, Shoulder 3/8" x 1-1/4" w/ 5/16"-18 Thread 3-1011-55
25 Washer, 3/8" SAE Narrow 2-1006-46
26 Nut, Hex Nylok 5/16"-18 2-1006-20
28 Fusion Handle Spacer 1-2434
29 Foam Grip Blue 8" 1-2116
30 Screw, Socket Button Head , 3/8-16 X 3/4" 3-1011-244
31 Proximity Magnet (Modified) 1-1219
32 Magnet, Neodymium 0.75 x 0.125 w/ #8 Countersink 1-2414
33 Machine Screw Countersunk Phillips 8-32 x 0.3125 1-2413
34 Fusion Adjustment Spindle 1-1010-2
35 Washer, Spherical 5/8" 2-1006-92
36 Shim, Steel, 5/8" ID 1" OD 1/8" Thick 1-2217
37 Adjustment Knob 1-1012
38 E-Clip 1/2" Shaft 1-1019-1
39 Fusion Adjustment Casting Kit 3-6943
40 Proximity Switch 1-1211
43 TRIAC 1-1059
44 Ball Plunger 3/8"-16 x 5/8" 1-2201
45 Screw, Machine #6-32 x 1/4" 3-1011-25
46 Screw, Machine #8-32 x 1/2" 3-1011-159
47 Nut, Hex 3/8"-16 2-1006-18
48 Lift Link XS & Fusion 1-1024
49 Fusion Upper Casting 2-1664
51 Upper Casting Bearing Spacer —
53 Fusion Stop Collar 1-2203
56 Spindle Creep Plate —
57 Rubber Washer, 5/8" Screw Size 1-2445
58 Swing Knob Black 2in Threaded 1-1054
59 Screw, Pan Phillips #4-40 x 1" 3-1011-130
60 Nut, #4-40 with Tooth Washer 2-1006-51
14

ERSATZTEILLISTE

QTY ITEM # PART NAME
1 61
1 62 Spring Plunger, 3/8"-16 Hand Retractable
1 63 Steel Pin, 1/2" x 4.38"
2 64 Hub Cap 1/2"
1 65 Bushing, Flange 1in
2 66 Screw, Machine #8-32 x 3/4"
2 67 Nut, Hex #8-32 w/ Tooth Washer
1 68 Clamp, Cable 7/16" Black
3 69 Screw, Socket Head Cap Low Profile 1/4-20 X 3/4"
2 70 Lever Nut 3 Conductor
1 71 Heat Platen 16 x 20 1800W Manual Fusion (Ears)
1 72 Insulation 16 x 20
1 73 Heater Cover 16"x20" Fusion
1 75 Fusion Guide Tube
1 77 Pin, Clevis 3/8" x 1-3/8"
1 78 Retaining Clip, Rue Ring
2 79 Temperature Probe
2 80 Thermostat Disc
2 81 Screw, SS Sheet Metal #4 X 1/4"
8 82 Screw, SS Phillips #8-32 X 1/4"
4 83 Washer, Plastic Finishing
2 84 Screw, Flat Head Phillips #10-24 x 7/16"
6 85 Adapter Harness (Not Shown)
2 86 Platen, 16x20
1 87 Silicone Pad 16 x 20 Blue
1 88 Adapter Plate
3 89 Quick Release Pin
1 90 Washer, Flat 1/4" SAE
1 91 Washer, Split Lock 1/4"
1 92 Screw, Socket Head Cap 1/4"-20 x 1"
1 93 Fusion Quick Release C-Frame
1 94 Quick Release Clamp, Manual Presses
1 95 Draw Handle
1 96 Fusion Slide Cover
1 98 Screw, Sheet Metal #8 x 1/2"
1 99 Screw, Slotted Pan #10-24 x 1/2"
2 100 Fusion Draw Hold-Out Bracket
1 101 Washer, #6 Stainless Oversized
2 102 Magnet, Neodymium 0.50 x 0.25 w/ #6 Countersinks
2 103 Screw, Countersunk Phillips #6-32 x 3/4" Stainless
1 104 Fusion Base Casting
3 107 Slide Rail
2 108 Rubber Foot
1 109 Fusion Stop Plate
1 110 Needle Bearing Inner Race
1 111 Spindle Race Spacer
1 112 Screw, Socket Head Cap 1/4"-28 x 3/4"
1 113 Screw, Countersunk Phillips #10-24 x 3/8"
1 114 Magnet, Neodymium 0.625 x 0.25 w/ #6 Countersink
2 115 Screw, Countersunk Sheet Metal #6 x 1/2" Stainless
2
HOTRONIX ®
F USION
PART # QTY
1-2073 2
1-2206 1
2-1055-27 1
1-1107-1 2
1-2282 1
3-1011-155 1
2-1006-52 2
1-1105 1
3-1011-245 2
1-2365 3
2-1002 1
1-1020 1
1-2189 1
1-2194 1
1-1017-1 2
1-1043-2 2
1-1272-1 1
1-2076 1
3-1011-98 4
3-1011-87 1
1-1063 4
3-1011-217 4
1-2318 1
2-1029 1
1-2136 1
3-1336 1
1-2215 1
2-1006-25 4
2-1006-44 4
3-1011-191 4
3-1335 1
1-2332 1
1-2182 1
Kit 3-1294 1
3-1011-108 4
3-1011-66 6
— 1
2-1006-11 2
1-2487 1
3-1011-252 1
4-1175 1
1-1749 2
1-2199-1 4
— 1
1-2261 2
1-2433 1
— 3
3-1011-69 8
1-2486 1
— 1

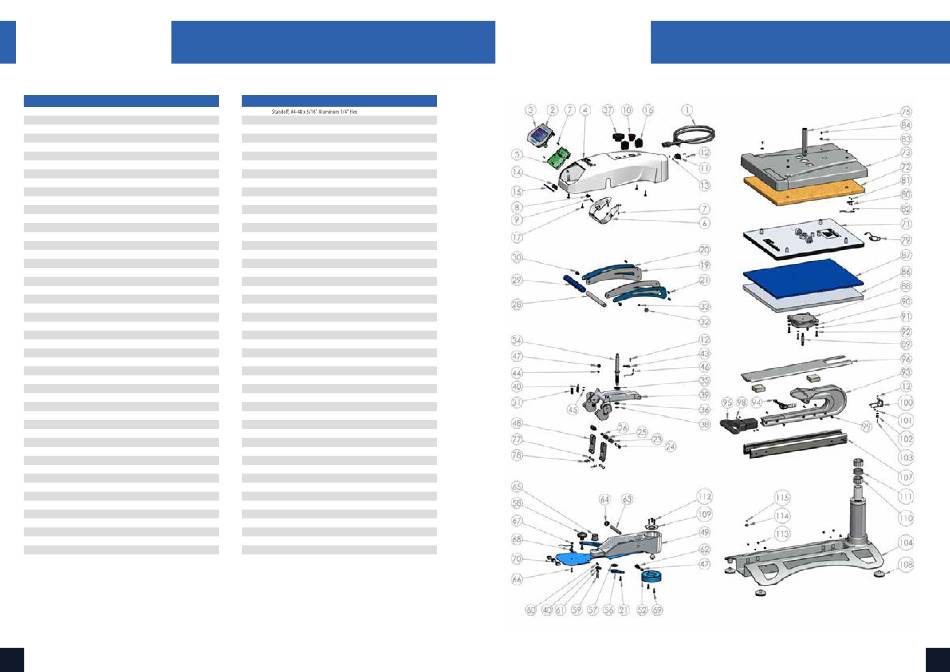

EXPLOSIONSZEICHNUNG

I Q
™
15
