Note: All gaskets are pre-fitted on all needed plates. Use a punch or nail to make holes in the Foam
Gasket for bolt installation.
TOP TIP:
Place the top plate on a table edge with the gaskets facing up.
Note: Align the three middle holes along the Top Plate (16) first, then align the remaining holes
when assembling. Leave all connections loose until all bolts are in place. Use the Flange Bolts (47),
Flat Washers and Nuts to secure the sections in place.
1. Attach the Front Cabinet Plate (17), and the Back Cabinet Plate (19) to the top edges of the top
plate (16) overlapping the front and back flanges over the edges of the top plate (16). (See
Detail 1 on page 10)
2. Place the Left Cabinet Plate (18) over the edges of the Front and Back Cabinet Plates and the
Top Plate.
3. Place the Door Frame to the other side of the Front and Back Cabinet Plates and Top plate
and secure with bolts (47), nuts and flat washers. Align the holes of the Door Hinge and Door
(24/13) along the back edge of the Cabinet Back Plate (19) and secure in place with bolts and
nuts pre-assembled on door and hinge assembly.
4. After all panels are in place, tighten all connections.

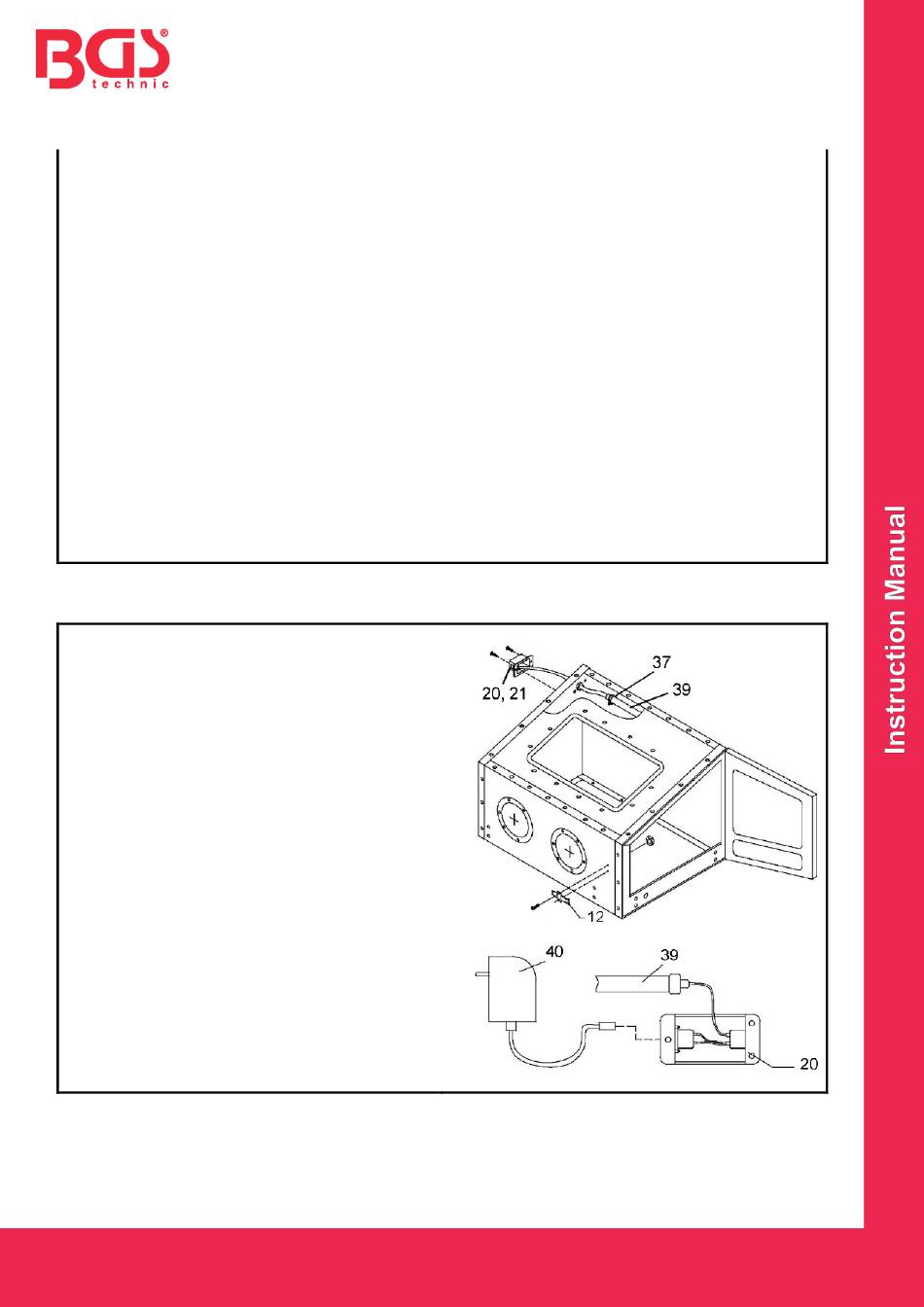

Light and Switch
1. Place the Light (39) in the Light Clamps (37)
and secure with the pre-assembled bolts and
nuts.
2. Guide the wire of the Light through the hole
of the Cabinet Left Plate (18).
3. Insert the end of the wire into the switch
housing (21).
Connect the light wires to the switch.
-BLUE light wire to BLUE switch wire
-BROWN light wire to BROWN switch wire
4. Install the Switch (21) and Switch Cover (20)
on the Cabinet Left Plate (18) with the Bolts
pre-assembled on the switch housing. Install
the Door Lock (12) on the Cabinet Front
Plate (17) with the bolts and nuts pre-
assembled on the Door Lock.
