1
x8
x1

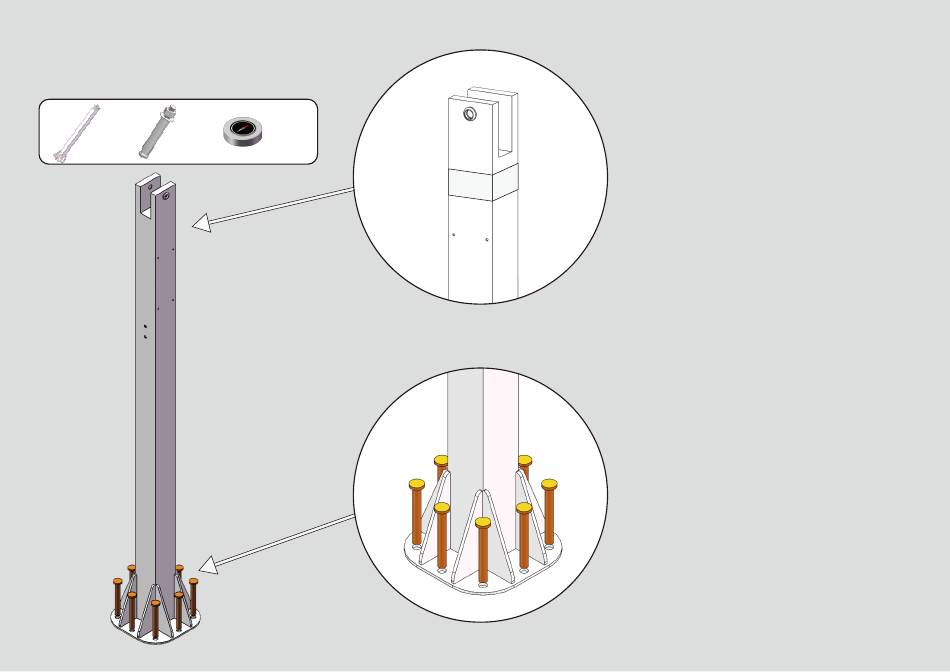

Expansion
Main Pole
Bolt
x1
Compass
There are 4 signs on the main pole
that indicate directions (South, North,
West, East). Use the compass to
E a s t N o r t h
place the main pole corectly so that
the the tracker can track the sun
properly.
The main pole must be installed on
solid concrete ground or pier with the
expansion bolts.
The solid ground base must be larger
or equals to a 600*600*700mm cube.
Recommend concrete material (kg/m³):
Cement(450kg)+Water(183kg)+Sand(600kg)+
Gravel (1192kg)
