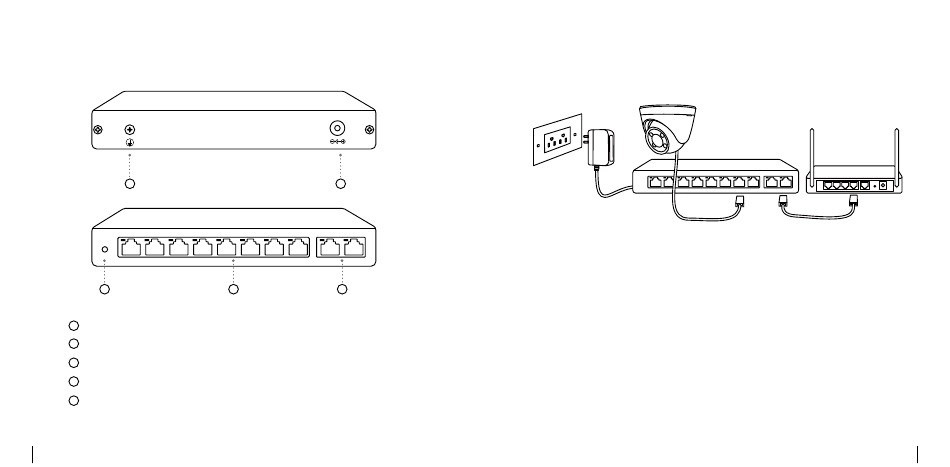

Product Introduction

1
PoE Switch
PoE Switch
POWER
POWER
3
Grounding Screw
1
DC Port
2
Power LED
3
10/100Mbps Downlink PoE+ Ports (Max. 30W per port)
4
Gigabit Ethernet Uplink Ports
5
3
DC IN
DC IN
2
PoE UPLINK
PoE UPLINK
4 5

Connection Diagram

1. Power on the PoE switch with the provided power adapter.
2. Connect one end of an Ethernet cable to the uplink port on the PoE
switch, and the other end to a router.
3. Connect your devices to the PoE+ ports on the switch via another
Ethernet cable.
