Instruction manual
for
CHROMOFLEX
Pro FILE
Series
Item.-No. 66000341 CV – 1-channel
Item.-No. 66000342 CV – 2-channel
Item.-No. 66000343 CV – 3-channel
Item.-No. 66000344 CV – 4-channel
1. Usage
®
CHROMOFLEX
Pro
series was designed so that sophisticated illuminations
in the field of decoration and wellness can be attained even without
programming. The unit is equipped with various colour effects by default such
as: colours, calming colour changes, even show effects. Some of them can be
edited or set as standard effects by radio control.
For control and settings either
CHROMOFLEX
(item.-No. 66000336,66000337),
CHROMOFLEX
No. 66000045),
®
CHROMOFLEX
Pro
®
CHROMOFLEX
Pro
USB dongle (for PC/ item no. 66000036) are necessary.
The modules were designed for indoor use in dry places. The LEDs might also
be used in wet environments or outdoors, if suited for that purpose. For outdoor
use we also offer optional housings.
Important: The modules must be operated with a power supply that is matched
to the used LEDs! Non-LED loads (especially inductive loads like motors, coils,
etc.) might damage or destroy the module.
If any of the before mentioned points is not observed short circuit or electric
shock might occur.
®
CHROMOFLEX
Pro
series operates on a frequency of 868.3 MHz (licence-
free in EU, Switzerland, Norway and Iceland).
2. Technical Data CV
Operating voltage: 8V to 26V DC
Protection class: III
Output current 1 channel: max. 3A / channel
Output current 2 channels: max. 1.5A / channel
Output current 3 channels: max. 1A / channel
Output current 4 channels: max. 1A / channel
Dimensions (L/W/H): 37 / 13 / 8 mm
3. Safety instructions
The modules might produce some heat. Care must be taken to provide
unrestricted air ventilation.
The unit is equipped with a limited protection against reverse polarity.
Connecting the power in reverse polarity can destroy the module, even if
connected for a short time only.
Important: It is guaranteed by design that the units will never generate any
higher voltage than the supply voltage. The module is the ideal solution for use
in low-voltage areas, like pools, steam baths, SPAs, etc.
Electronics must not be modified. Observe the official regulations for electrical
devices (like DIN, VDE, EN), especially when LEDs are used in wet areas!
This product is not a toy, keep away from children!
We decline any liability, loss or damage caused by improperly used modules!
Guarantee is also lost in such cases.
LEDs can get quite hot. We strongly recommend ensuring maximum operating
temperature is not exceeded, because this might reduce the expected life time
of the LEDs significantly.
WARNING 1: LED light may have very high intensity even when dimmed. Some
modern LEDs are classified by the lasers marking obligation. Particularly in
connection with optics also weak LEDs may be very dangerous. Staring into
LEDs may cause irreparable damage to the eye's retina. Hence: NEVER
STARE INTO THE BEAM. Use diffusers to spread the intensity!
WARNING 2: Please be aware of the fact that LED light may cause side effects.
This light changes intensity very fast! Changing light may affect the perception
and is also known to trigger epileptic seizures in persons who are
photosensitive.
4. Installation
The electric wiring/connection must comply with all current and valid national
requirements, be constructed by a certified electrical tradesman, and comply
with all the requirements set forth in this planning manual.
Attention: Disconnect the system and the device before beginning any
work!
Assembly site
The unit is suitable for assembly in profiles, it is important not to shield the
antenna, it can affect wireless signal range.
In operation the unit might produce heat. Care must be taken to provide
unrestricted air ventilation.
5. Connection
Connecting the LEDs / Power Supply
Important: The module must be operated with a power supply that is suitable for
the used LEDs!
Important: Improper power supplies may lead to malfunctions and unwanted
flickering effects or overheating. We strongly recommend using high-quality
(stabilized) switching power supplies!
We warn against using non-stabilized power supplies. We recommend
switching power supplies. Even LED power supplies are not recommended,
because some are already equipped with control electronics for constant
current, which will destroy the electronics of
One power supply can be used for several units in parallel if the maximum output
power of the supply is observed.
V1.2 / 18.07.2014 Subject to technical changes
®
®
Pro
Glas Touch RGBW
®
Pro
remote control (item.-
Wallswitch (item no. 66000373)
CHROMOFLEX
®
Pro
.
This model does not have any internal current regulator. Supply voltage is
passed through and the voltage of the power supply must match the voltage of
the LED strip.
Note: LED stripes of 10 volts, 12 volts and 24 volts are offered on the market.
Depending on the length the LED stripes might need very high currents.

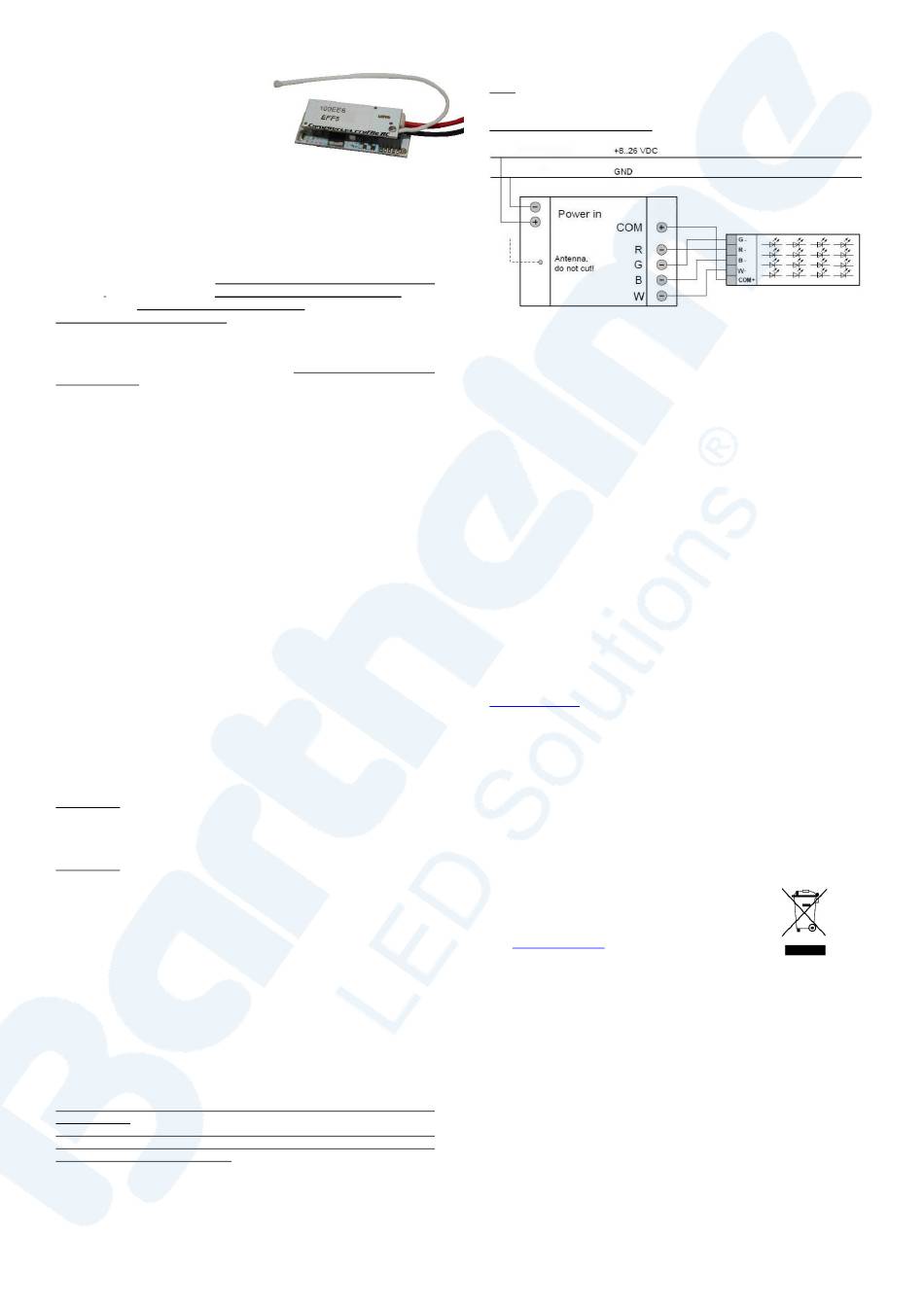

Example: connection 4 channel
or
6. Operation
Please operate this unit only when it is working properly.
In case of an error, switch off the unit immediately. Do not operate the unit until
the unit was verified electronically by a qualified electrician.
A case of error is:
- Visible signs of damage on the unit
- The unit is not operating properly
- fume rising or crackling sounds from the unit
-Visible signs of overheating
Maintenance and service which require access to live components inside the
unit must be carried out by an authorized electrician.
Warning: risk of electric shock!
How to avoid malfunctions or fire risk:
-Do not affect air circulation by covering the unit.
-Do not attach anything to the unit e.g. decoration items etc.
-Do not let your children play unattended with electrical equipment. Children
cannot always perceive possible dangers correctly.
7. Contents
Every
CHROMOFLEX
instructions are an integral part of the equipment to which they relate and must
be handed to the user.
®
CHROMOFLEX
Pro
®
CHROMOFLEX
Pro
USB dongle (66000036) und the
Pro
(66000373) are optional accessories.
Important note: manuals for any
www.barthelme.eu
. Please look for updates before installation.
8. Additional technical data
Current consumption of one unit (without LED): about 10 – 20mA
Ambient temperature: 0°C - max. +50°C (in dry conditions only with sufficient
air circulation for heat dissipation, non-condensing)
Radio frequency: 868.3MHz (licence-free in EU, Switzerland, Norway and
Iceland).
Modulation system: The
system, called „Vector-Fractal-Modulation" or „VFM". This modulation system
was optimised for minimising load on power supplies and has considerable
advantages compared to traditional systems. The modulation frequency is in the
range from 120Hz up to (max.) 240Hz. Patent pending.
9. Contact
Josef Barthelme GmbH & Co. KG
Oedenberger Str. 149
D-90491 Nürnberg, Germany
Tel: +49 (0) 911 42 476 0
Mail
info@barthelme.eu
2 / 2
®
Pro FILE
unit is shipped with this manual. The
Glas
Touch
RGBW
(66000336,
remote control RGB (6600045),
CHROMOFLEX
®
CHROMOFLEX
Pro
®
CHROMOFLEX
can be downloaded at
®
CHROMOFLEX
Pro
modules are based on a digital
CHROMOFLEX
66000337),
®
push button
®
Pro FILE
