GB
OWNER MANUAL
FX battery sprayer
h
c
g
1. APPLICATION AND USE
Battery sprayer FX is designed to carry out the protection treatment with water
solutions of fertilizers, insecticides, fungicides, herbicides. It is also dedicated to the
application of ecological preparations based on paraffin oil and plant preparations. It is
recommended to use one sprayer for the selected group of agents.
CAUTION !!! Do not use a chemically active agents, including acids and bases,
disinfectants, impregnation, containing solvents, cleaners and petroleum resources.
Failure to follow this instruction may result in damage to the sprayer or permanent
harm to health.
2. EQUIPMENT OF THE FX SPRAYER
The set contained in the package is presented in Fig.3. a. Container with belt, hose
with springs and feeding valve integrated with handle, b. Battery pack 3,4Ah with
control package, c. Charger 12,6V; 3A for charging the package, d. Telescopic lance
with adjustable nozzle MR 1,5 mm, e. Funnel with strainer, f. Additional parts and
gaskets and silicone grease, g. User's manual with a warranty card, EU DECLARATION
OF CONFORMITY.
Marolex Sp. z o.o. reserves the right to change the equipment of the sprayer.
3. PREPARATION AND OPERATION OF THE FX SPRAYER
1. Before you start working with the sprayer, read these operating instructions.
2. Before starting work, prepare sprayer and check the tightness and correct operation
of the sprayer using clean water. For this purpose, fix the lance with the feeding valve
h i
integrated with the handle Fig. 1., remove the battery pack with the control panel
Fig. 4b., remove the safety foil Fig. 4b. and insert the package so that the click sound
is heard Fig. 4a., then check the battery charge level by pressing the TEST button
Fig. 6a. The LED indicators on the panel will light up, showing the level of charging.
Before pouring water, make sure that the pump filter Fig. 1f. is properly inserted and
locked Fig. 5a. Unscrew the tank nut Fig. 7., pour clean water and screw the nut.
Press the button ON/OFF on the control panel Fig. 6a., the diodes will start to flash
Fig. 6a, b, c., press the feeding valve button Fig. 11a. from the nozzle, air should first
come out, then water.
c 3. In order to start working with the sprayer: empty the tank from water, then pour
in solution prepared in advance according to the producer recommendation, don't
exceed the level indicated on the scale Fig. 7., tighten the tank nut Fig. 7. Press the
button ON/OFF on the control panel Fig. 6a., then, direct the lance to the place where
spray will be carried out and press the feeding valve button Fig. 11a., start spraying.
Continuous sprayer operation is possible by pressing the feeding valve button and
moving it forward Fig. 11a. After finishing work, release the feeding valve lock by
d
moving the button backwards. Fig. 11a. and switch the control package off with the
ON/OFF button Fig. 6a.
4. Nozzle replacement:
– replacement of a cone 1.5 mm (yellow) nozzle with 1.0 mm (green) nozzle. To do this,
unscrew the yellow nozzle cap and screw the green nozzle cap Fig. 10a.
– replacement of the cone nozzle with a flat-stream nozzle. To do this, unscrew
the nozzle cap Fig. 10a., then unscrew the black nut, take out the core and O-ring
c d
Fig. 10b., insert the flat-stream nozzle into the black nut Fig. 10c., then insert the
O-ring and tighten.
5. The battery pack 3.4Ah with the control panel is an exchangeable element available
in the sales offer.
4. CHARGING THE BATTERY
c
In order to charge the battery, stick the included charger into the charging socket in
the control package Fig. 4c., and then connect it to the power supply 230V 50 Hz.
It is possible to charge the battery when the package is in the sprayer, as well as
independently outside the sprayer. After connecting the charger, the diodes will start
to flash, the charging cycle is in progress. Fig. 6. The battery is fully charged when
all the LED indicators are on. If the battery has a low level of charging and only the
9 red indicator light is on, it means that the sprayer battery needs to be charged before
starting work. Charging should be stopped only when the battery is fully charged.
The sprayer should be stored with a charged battery, what should be periodically
checked by pressing the TEST button Fig. 6a. Prolonged storage of the sprayer with
a discharged battery may damage the battery.
WARNING! The control package can be charged only with the included charger
or 12.6V, 3A charger. If you try to use the charger with other parameters, the panel
may be permanently damaged or the battery will not get charged.
The sprayer once used for plant protection
chemicals, can not be used for other purposes !!!
a
5. WORK SAFETY REGULATIONS
1. Children, pregnant women, people taking medicines or other drugs restricting the
concentration powers or drinking alcohol are forbidden to operate the sprayer.
2. Before first spraying check the tightness and correct operation of the sprayer using
clean water.
c
3. When working with chemicals (also during liquid preparation and destroying the
packages) it is necessary to wear protective clothing (rubber boots, gloves, a coat,
a cap and a mask).
4. It's forbidden to work with chemicals on an empty stomach and eat or drink during
working. It's forbidden to drink alcohol one day before and one day after working with
chemicals.
5. It's forbidden to pour the liquid remains to the open water reservoirs or biological
sewage treatment plants. These notes apply also to the water after cleansing the
container and other parts of the sprayer.
6. Expendable sprayer should be handed over for utilization.
6a. The used battery pack with the control panel should be given to a collection point
for used electrical and electronic equipment and batteries.
7. People working using the sprayer should strictly comply to all the recommendations
on the package of the spraying agents. In case of poisoning the doctor must be
contacted.
8. It's is forbidden to work using defective sprayer or with any leakage. Do not expose
the sprayer to impact.
9. All the operations should be done after decompression of the sprayer.
10. Thoroughly cleanse the sprayer after each using and before servicing.
11. It's is forbidden to use the sprayer for other purposes than stipulated in the owner
manual.
12. It's forbidden to store the sprayer filled with a liquid and under pressure.
13. It's forbidden to spray with liquids warmer than +40°C, and with easy inflammable
chemicals or substances which can cause an explosion e.g. petrol, solvents.
14. Changes in the sprayer or using it not according to its allocation can result in
poisoning people or animals, polluting the environment, damaging the sprayer
or serious accidents.
15. After finishing work, you should change your clothes (the protective clothes must
be cleaned), wash your hands, face, mouth and throat, and clean your nose.
16. After finishing work, rinse the sprayer using clean water.
17. The user is fully responsible for the damages caused by not complying with these
recommendations.
18. Always check the battery level before starting work.
19. It's forbidden to point the lance of the sprayer and spray the liquid in the direction
of the face.
20. The sprayer while working and storing should be secured from any unauthorized
people, especially children.
21. When using other agents, make sure that it can be used in the sprayer, and that
they are not harmful to the sprayer, people and the environment.
22. CAUTION! The sprayer's control package is splash-proof and has a higher
moisture level, is not resistant to flooding and frequent contact with water.
6. SERVICE AND WARRANTY REPAIRS
1. The guarantee period is 24 months from the date of purchase. The warranty
excludes: pump with engine, control package with battery and charger, for which the
warranty period is 12 months. The tank is covered by a 60-month warranty.
2. Reclamation should be lodged to the seller of the sprayer.
3. CAUTION! Dirty and contaminated with chemicals sprayers, supplied as a
complaint, or sprayers with any content will not be repaired. Thoroughly empty,
rinse and clean them beforehand!
4. The claims will be accepted after showing the defected part or giving the full
description of the fault.
5. The guarantee repairs should be made using always the genuine Marolex parts.
6. Number of repairs after which the seller cannot refuse to exchange the sprayer for
a new one (in case there are still defects) is 3.
7. Operations connected with exploitation of the sprayer and described in the manual
are not treated as guarantee repairs.
8. The producer will not accept the claim if there were changes in pressure regulation
or the storing, operating, maintaining of the product were not according to the manual.
9. Mechanical damages caused by the user cannot be the subject to reclamation. The
damaged parts can be exchanged but the costs are charged.
10. The warranty does not cover damage resulting from the use of an unsuitable
charger.
7. STORAGE AND MAINTENANCE OF THE FX SPRAYER
1. Do not store the sprayer in sunlight or in temperatures below +4°C.
2. After finishing work, thoroughly wash the sprayer using clean water and blow air
through it. Perform maintenance periodically.
After washing the sprayer and blowing the air through it, you should: unscrew the hose
from the handle, remove the filter Fig. 11b. and clean it under running water using a
soft brush. Unscrew the nut from the feeding valve in the handle, take out the valve
piston with a spring Fig. 11c., clean and lubricate it with silicone grease Fig. 2i., put
it back and tighten the nut. Unscrew the nozzle nut Fig. 10a. remove the nozzle and
rinse it thoroughly with water, then lubricate with silicone grease O-ring Fig. 1d. Unlock
and remove the pump filter Fig. 5a, b, c, d. and clean it under running water using a
soft brush, then insert and lock Fig. 5a. Unscrew the tank nut Fig. 7., remove the funnel
with strainer Fig. 9. and rinse with water, then put it back in the tank and screw the nut.

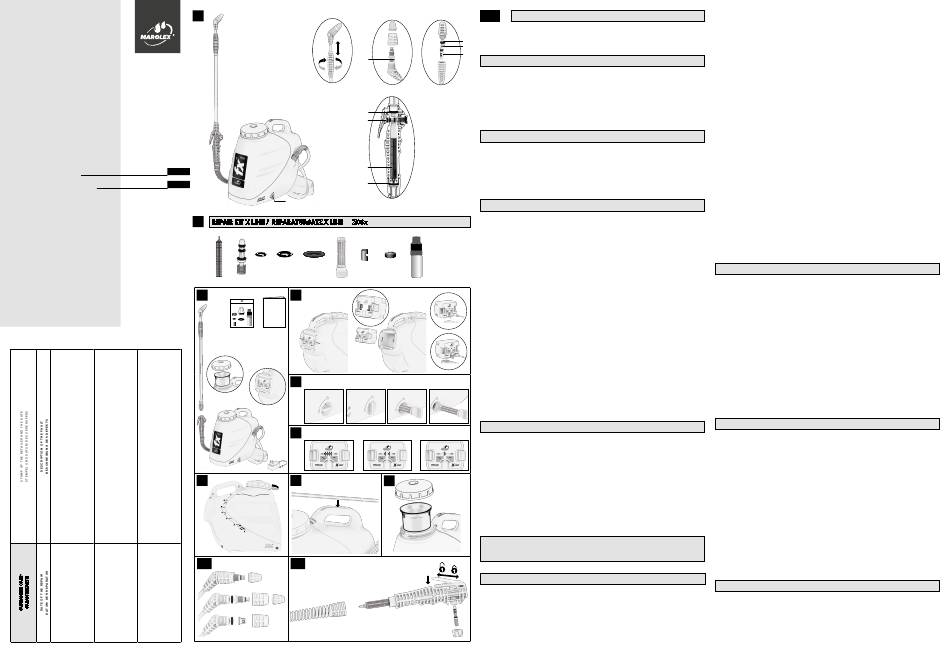

Fig. 1. shows the diagram of the elements to be maintained or which are wasted and
must be replaced by purchasing a repair kit Z08x Fig. 2.
Instructional videos can be found on our website www.marolex.pl
3. Maintenance and repairs should only be carried out with silicone grease.
Using other lubricants will damage the sprayer.
CAUTION! All repair, replacement or maintenance operations concerning the
pump unit, battery and control package may only be carried out at the premises
of Marolex company or authorized services. If you attempt to repair, replace
or maintain above mentioned items, you lose your warranty.
8. GENERAL REMARKS
In the lance handle integrated with the feeding valve is used filter R40 which has to
prevent clogging of the nozzles. All lances produced by Marolex are interchangeable
(the same thread in the feeding valve). It is possible to use additional Marolex
extensions, manufactured in lengths of 60 and 100 cm. For Marolex sprayers fit cone,
deflector, flat stream and adjustable nozzles.
The construction of all Marolex lances allows the use of nozzles from other world nozzle
producers.
