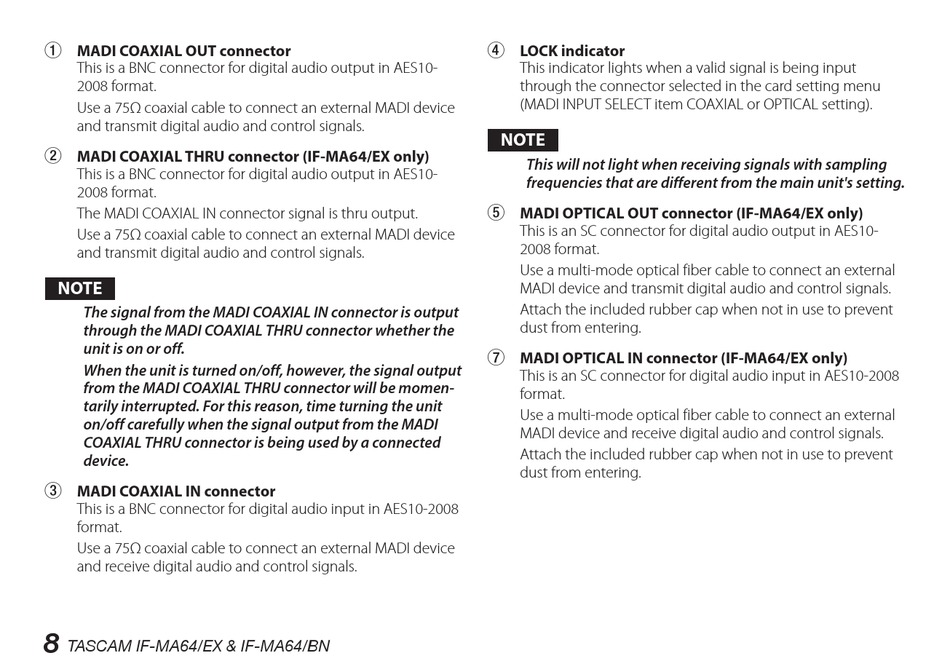

MADI COAXIAL OUT connector
1
This is a BNC connector for digital audio output in AES10-
2008 format.
Use a 75Ω coaxial cable to connect an external MADI device
and transmit digital audio and control signals.
MADI COAXIAL THRU connector (IF-MA64/EX only)
2
This is a BNC connector for digital audio output in AES10-
2008 format.
The MADI COAXIAL IN connector signal is thru output.
Use a 75Ω coaxial cable to connect an external MADI device
and transmit digital audio and control signals.
NOTE
The signal from the MADI COAXIAL IN connector is output
through the MADI COAXIAL THRU connector whether the
unit is on or off.
When the unit is turned on/off, however, the signal output
from the MADI COAXIAL THRU connector will be momen-
tarily interrupted. For this reason, time turning the unit
on/off carefully when the signal output from the MADI
COAXIAL THRU connector is being used by a connected
device.
MADI COAXIAL IN connector
3
This is a BNC connector for digital audio input in AES10-2008
format.
Use a 75Ω coaxial cable to connect an external MADI device
and receive digital audio and control signals.
8
TASCAM IF-MA64/EX & IF-MA64/BN
LOCK indicator
4
This indicator lights when a valid signal is being input
through the connector selected in the card setting menu
(MADI INPUT SELECT item COAXIAL or OPTICAL setting).
NOTE
This will not light when receiving signals with sampling
frequencies that are different from the main unit's setting.
MADI OPTICAL OUT connector (IF-MA64/EX only)
5
This is an SC connector for digital audio output in AES10-
2008 format.
Use a multi-mode optical fiber cable to connect an external
MADI device and transmit digital audio and control signals.
Attach the included rubber cap when not in use to prevent
dust from entering.
MADI OPTICAL IN connector (IF-MA64/EX only)
7
This is an SC connector for digital audio input in AES10-2008
format.
Use a multi-mode optical fiber cable to connect an external
MADI device and receive digital audio and control signals.
Attach the included rubber cap when not in use to prevent
dust from entering.
