Toro 22180 Installationsanleitung

Side Discharge Kit
For 21in/53cm Heavy-Duty Rear Bagger Lawn Mower
Model No. 22180
Installing the Side Discharge
Chute
1. Stop the engine and wait for all moving parts
to stop before leaving the operating position.

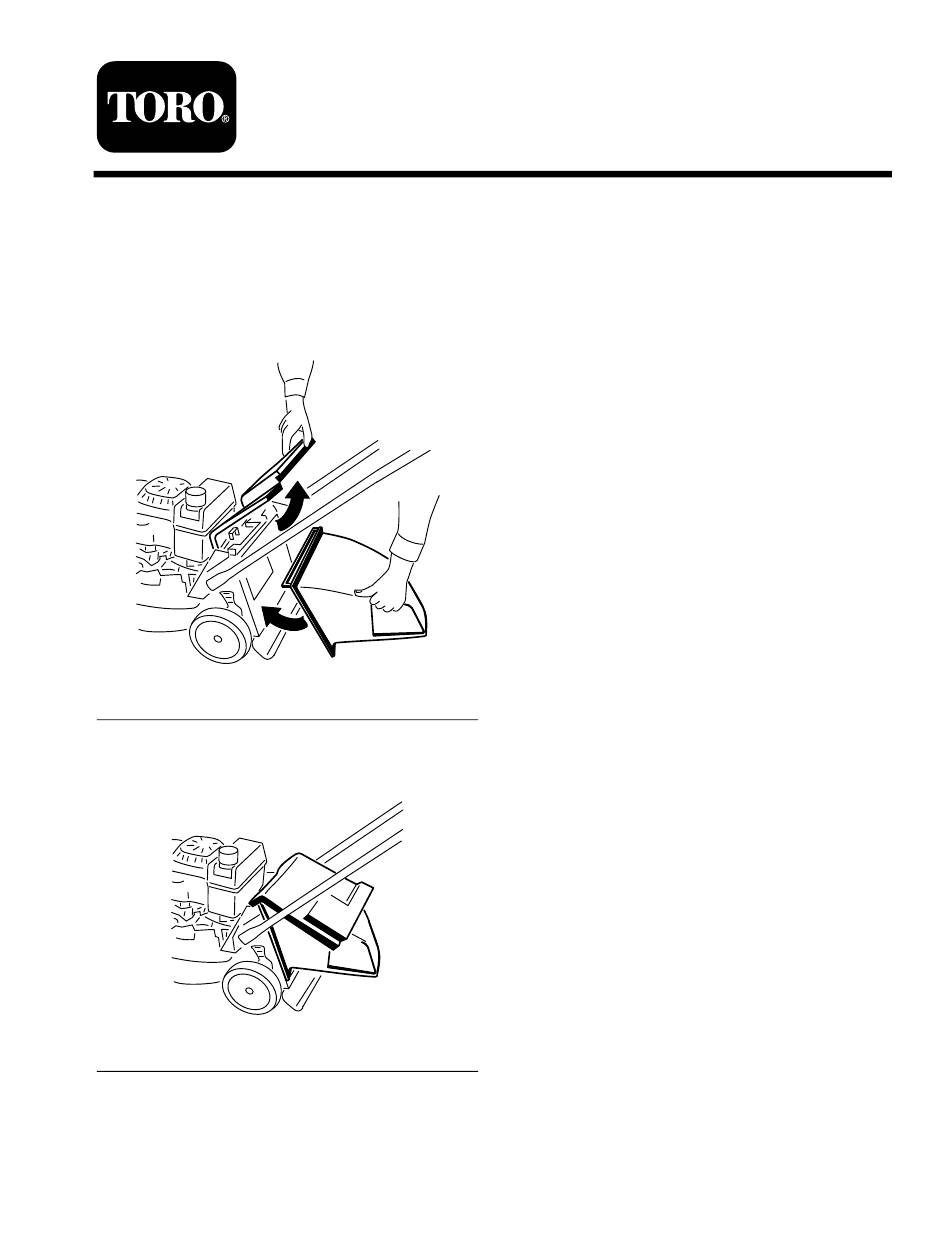

2. Raise and hold up the rear door (Figure 1).
Figure 1
3. Install the side discharge chute (Figure 1).
4. Lower the rear door (Figure 2).
Figure 2
© 2006—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Removing the Side
Discharge Chute
To remove the side discharge chute, reverse the
steps above.
G003833
G003834
Register at www.Toro.com.
Form No. 3355-229 Rev A
