6 E l e c t r i c a l c o n n e c t i o n s
Only authorised, specialist personnel are permitted to open electrical housings and work on
the electrical system after de-energising the equipment. When establishing connections,
make sure the terminal assignments and polarity are correct. Protect the control unit and
electrical components against excess voltage. Additionally, observe the safety instructions in
the installation manual for the FRIWA 25/45 freshwater station.
Risk of fatal electric shock as a result of incorrect electrical connections.
Electrical connections must exclusively be created by electricians
DANGER
approved by energy suppliers and as per the locally applicable
regulations.
Disconnect the supply voltage prior to conducting any work.
The circulation pump is pre-installed and wired ex works.
Connect the power cable of the pump and the temperature sensor cable to the control unit.
To do so, refer to the separate operating manual of the control unit and potentially of the
corresponding circulation pump.

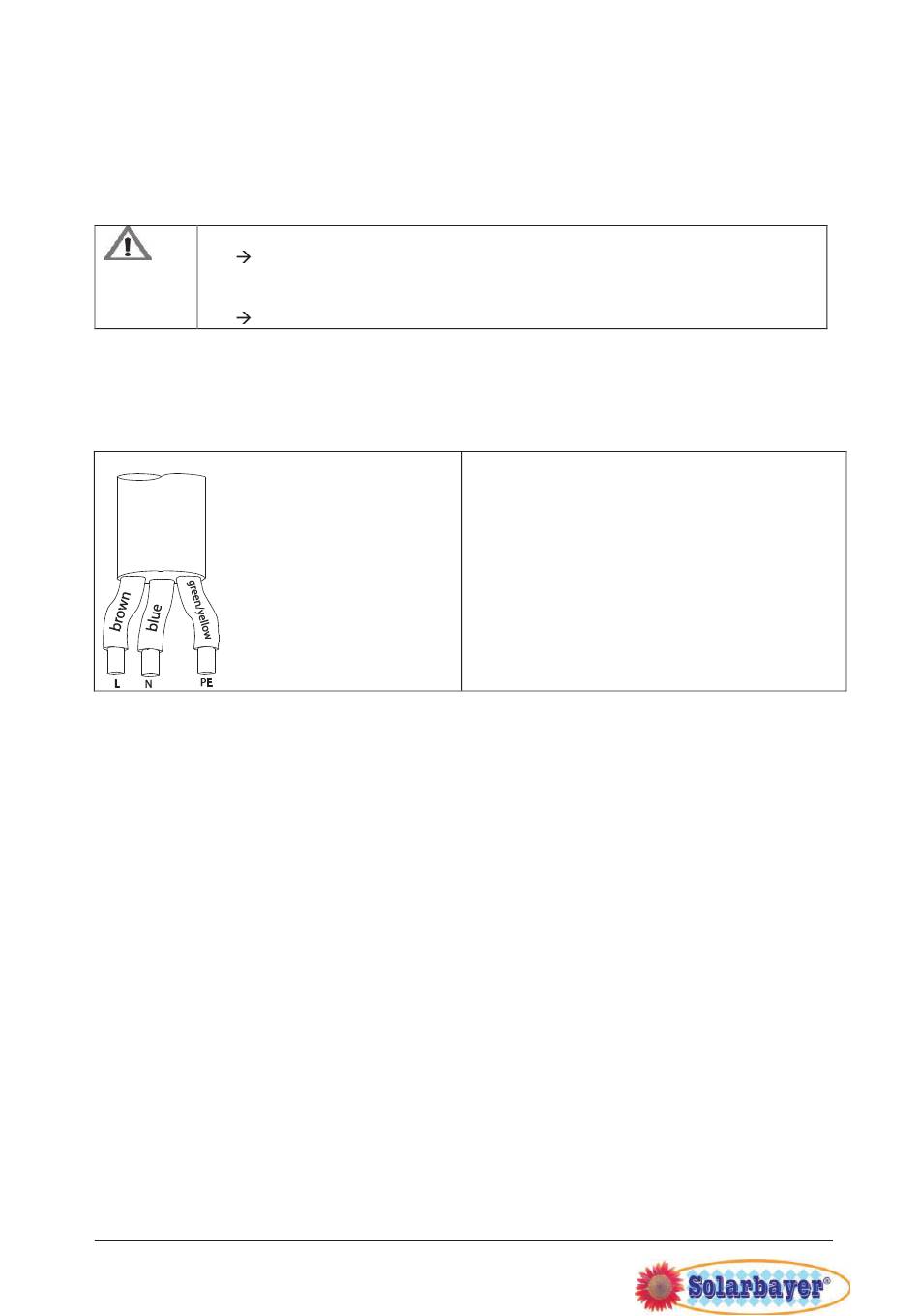

Electrical pump connection:
Art.-Nr. 907.40.92.14
Stand 11/2018
The type of current and voltage of the mains
supply must correspond to the data given on
the identification plate.
L = brown
N = blue
PE = green/yellow
Max. fuse: 10 A, inert.
Earth the pump correctly.
