3. PRODUCT OVERVIEW

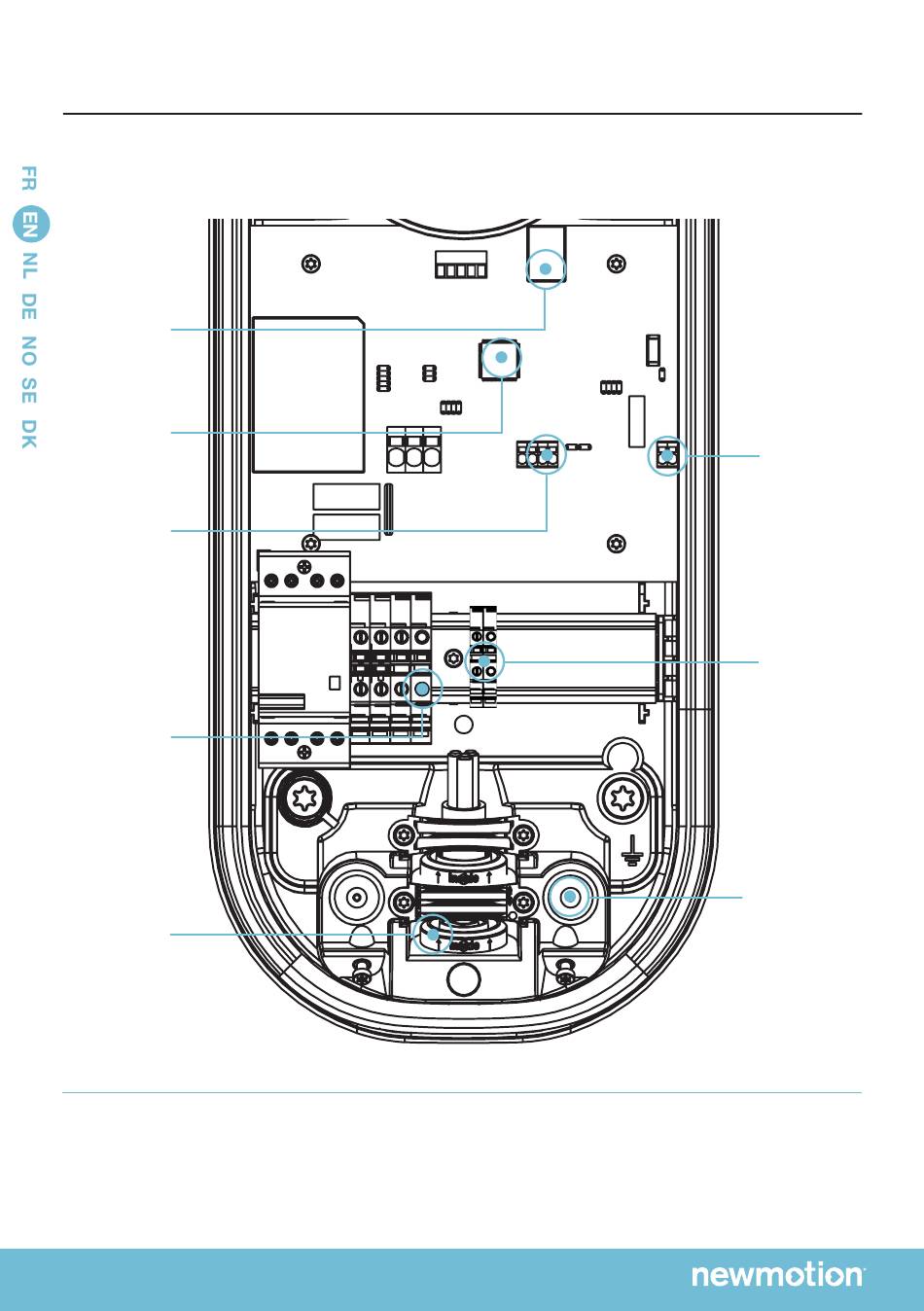

3.4.2 OVERVIEW INSTALLING ACCESSORIES
Wthernet port
for local
configuration
RJ12 - P1 port
for
Load Shedding
module
(11 kW model)
Shunt
connection
(L1 & N from
accessories
cable)
Earthing
accessories
cable
5 wires Ø 2,5mm
accessories cable
inlet
INSTALLATIEHANDLEIDING – P24
INSTRUCTION MANUAL – P24 | P24
VERSION 0129NM02INT01
0520NM19INT03
ON/OFF Peak
connection
(L2 & L3 from
accessories cable)
CT connection for
Load Shedding
(7,4 kW models)
Load Shedding
cable or CT
cable inlet
(CAT5/6)
