Pin Assignment - Sartorius YCC-D09M-M12F-2M Installationsanleitung

7.2

Pin Assignment

7.2.1 Data Cable YCC-D09M-M12F-2M
D-Sub, 9-pin
Pin
TxD/RxD 2
RxD/TxD 3
CTS 7
GND 5
Shield is applied on both sides.
7.2.2 Data Cable YCC-D25M-M12F-2M
D-Sub, 25-pin
Pin
TxD/RxD 2
RxD/TxD 3
CTS 5
GND 7
Shield is applied on both sides.
7.2.3 Data Cable YCC-D09MM-EC-2.9M
D-Sub, 9-pin
Pin
TxD/RxD 2
RxD/TxD 3
CTS 7
DTR 8
GND 5
Assignment 1:1
Shield is applied on both sides.
Installation Instructions YCC-D09M-M12F-2M | YCC-D25M-M12F-2M | YCC-D09MM-EC-2.9M | YCC-USB-C-D09M
7.2.4
Instructions on connecting the data cable with
balance's USB-C port
When the connection is established, the balance's
M12 socket,
USB-C port switches from the Downstream Facing
5-pin
Port (DFP) to the Debug Accessory Mode.
Pin
The serial signals required are connected.
4
NOTICE The YCC-USB-C-D09M data cable does
not convert standard USB-C signals (DFP) into
3
RS232 signals!
2
1 Specifications for the COM-RS232 Interface
Type of interface: Serial interface
Interface operation: Full duplex
Level: RS232
Connection: D-sub connector, 9-pin
M12 socket,

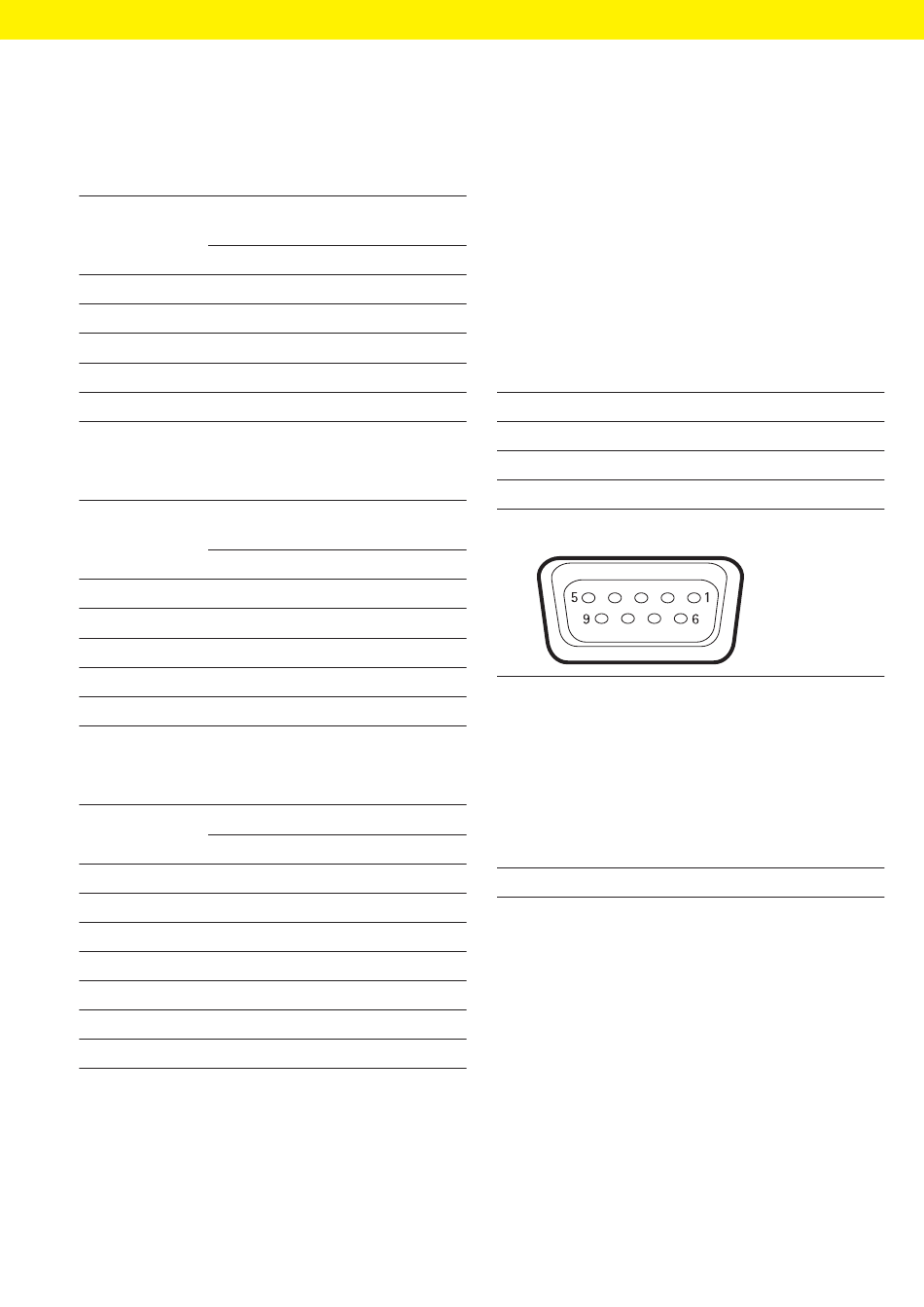

Pin assignment
5-pin
Pin
4
3
2
1
Pin 1: Not assigned
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Not assigned
Pin 5: Internal ground
Pin 6: Not assigned
Pin 7: Clear to Send (CTS)
D-Sub, 9-pin
Pin 8: Request to Send (RTS)
Pin
Pin 9: Not assigned
2
Shield is applied on both sides.
3
7
8
5
Technical Data
Data cable YCC-USB-C-D09M
7
