Installation Instructions
Please Read Before Installing
Overview
The 4 Series Processors, model numbers H4P5-H48-CE,
H4P5-H48-HRL-CE, H4P5-CE, and H4P5-HRL-CE, have
three (3) configurable communication links allowing con-
nection of HomeWorks Wired Keypads, HomeWorks
Wired Maestro Local Lighting Controls, and HomeWorks
®
Wallbox Power Modules. Model numbers H4P5-H48-
HRL-CE and H4P5-HRL-CE have an additional dedicated
link for Hybrid Repeaters, allowing expansion to RF
devices. The central processor provides lighting presets,
astronomic timeclock events, security mode, vacation
mode, conditional logic, and all other HomeWorks pro-
gramming functions.
A maximum of 10 seeTouch
LEDs) may be powered by Link 6 on the 4 Series
Processor. To power additional keypads, or to use
keypads on Links 4 or 5, an additional power supply is
required (Lutron model #s TU240-15DC-9-BL (U.K.) and
TE240-15DC-9-BL (Europe)).
The dedicated Hybrid Repeater Link (Link 8) on H4P5-
H48-HRL-CE and H4P5-HRL-CE processors can provide
power to Hybrid Repeaters. Each Hybrid Repeater counts
as 30 LEDs towards the maximum of 150 LEDs.
Important Notes
Codes: Install in accordance with all local and
national electrical codes.
Power: Two separate power inputs exist on this
processor:
1. Processor power is provided by the 2 conductor
harness that is integral to the HWI-LV24-CE
enclosure. The processor is powered when the
green LED labeled "PWR" is on.
2. Keypads connected to Link 6 are powered by the
supplied plug-in adapter connected to the power
jack labeled "Link 6 15 V
properly when the green "LINK PWR" LED is on.
If the red "LINK SHORT" LED is on, Link 6 or 8
are shorted (between terminal 1 and 2) or
overloaded (exceeding 150 LEDs).
Both Processor power and Link 6/8 power must be
present for the processor and keypads to function
properly.
keypads (equivalent to 150
TM
". Link 6 is powered
4 Series Processor
TM
H4P5-H48-CE, H4P5-H48-HRL-CE
H4P5-CE, H4P5-HRL-CE
12 V 50 Hz 30 VA
H4P5-H48-CE H4P5-H48-HRL-CE
U.K. Plug-in Adapter
TU240-15DC-9-BL
Input: 220-240 V 50 Hz 19 W
Output: 15 V 900 mA
IEC PELV; NEC Class 2

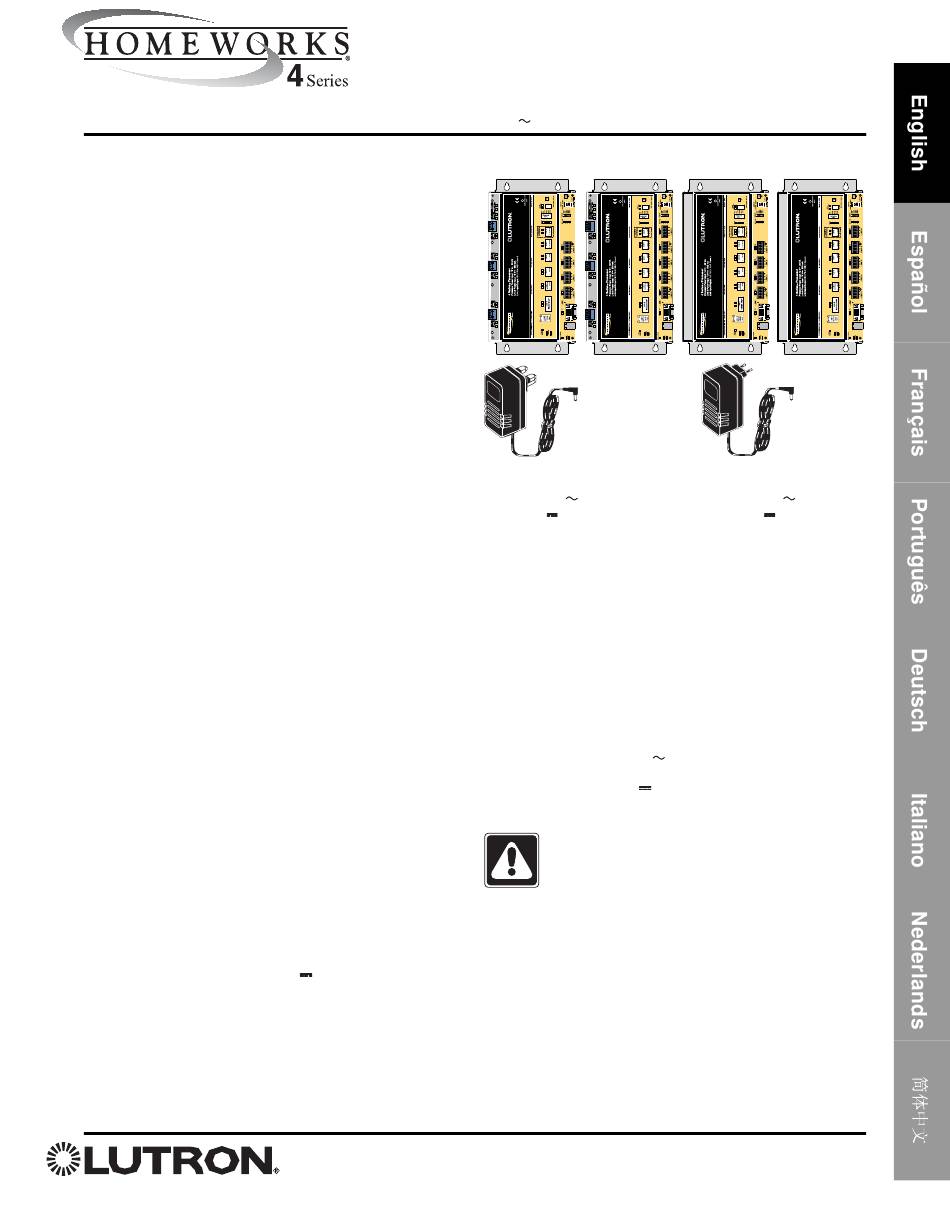

Figure 1 - 4 Series Processors and Adapters
Processor Power: 12 V
Link 6/8 Power: 15 V 900 mA NEC Class 2;
Use only the adapter provided by Lutron with
the 4 Series Processor (Lutron model #s
TU240-15DC-9-BL (U.K.) and TE240-15DC-9-
BL (Europe)).
Environment: Ambient operating temperature:
0-40 °C, 32-104 °F, 0-90% humidity, non-condensing.
Indoor use only.
Cleaning: To clean, wipe with a clean damp cloth. DO
NOT use any chemical cleaning solutions.
H4P5-CE H4P5-HRL-CE
Europe Plug-in Adapter
TE240-15DC-9-BL
Input: 220-240 V 50 Hz 19 W
Output: 15 V 900 mA
IEC PELV; NEC Class 2
50 Hz 30 VA
IEC PELV
1
