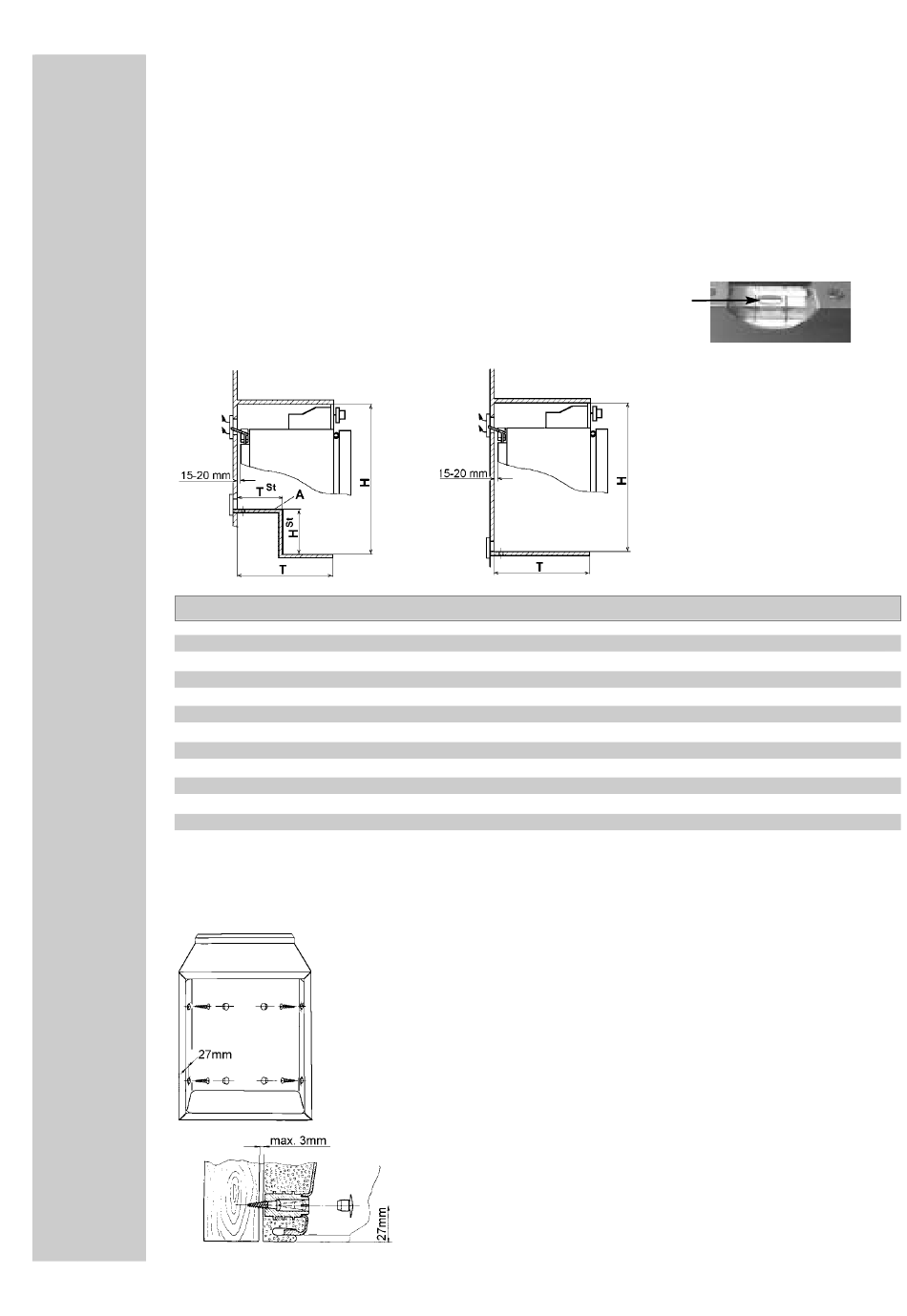

Installation recess

The refrigerator must be installed draught-free in a recess.
The measurements of the recess are given in the table below.
Step (A) is only required for cabinets with a step. Push the appliance far enough into
the recess until the front edge of the refrigerator casing is flush with the front of the
recess. Allow a gap of 15-20 mm between the back wall of the recess and the
refrigeration unit. The floor of the recess must be level, allowing the appliance to be
pushed easily into its correct position. The floor must be substantial enough to bear the
weight of the appliance.
Ensure that the refrigerator is installed level in the recess.
Recess measurements :
Model
RM 6290
RM 6291
RM 6401
RM 7270
RM 7290
RM 7360
RM 7370
RM 7400
RM 7540
RM 7550
6.6

Securing the refrigerator

Width of recess = W
Height H
825 mm
825 mm
825 mm
825 mm
825 mm
825 mm
825 mm
825 mm
825 mm
825 mm
Width of recess = W
Width B
529 mm
529 mm
529 mm
490 mm
529 mm
490 mm
490 mm
529 mm
529 mm
529 mm
In the sidewalls of the refrigerator, there are four plastic
sleeves with screws for securing the refrigerator. The
sidewalls or rails attached for securing the refrigerator
must be designed in such a way that the screws will
remain firmly in place even when under increased load
(while the vehicle is moving).
Always insert screws through the sleeves provided;
otherwise, structural parts embedded in the foam,
such as cables, etc., may be damaged.
Once the refrigerator is in its final position, secure the
screws into the wall of the recess.
The screws must penetrate through the sheet metal
casing of the refrigerator.
23
Depth T Height HSt
515 mm 220 mm
515 mm 220 mm
515 mm -
515 mm 220 mm
515 mm 220 mm
515 mm -
580 mm 220 mm
515 mm -
570 mm 220 mm
570 mm -
DepthTSt
235 mm
235 mm
-
235 mm
235 mm
-
235 mm
-
235 mm
-
