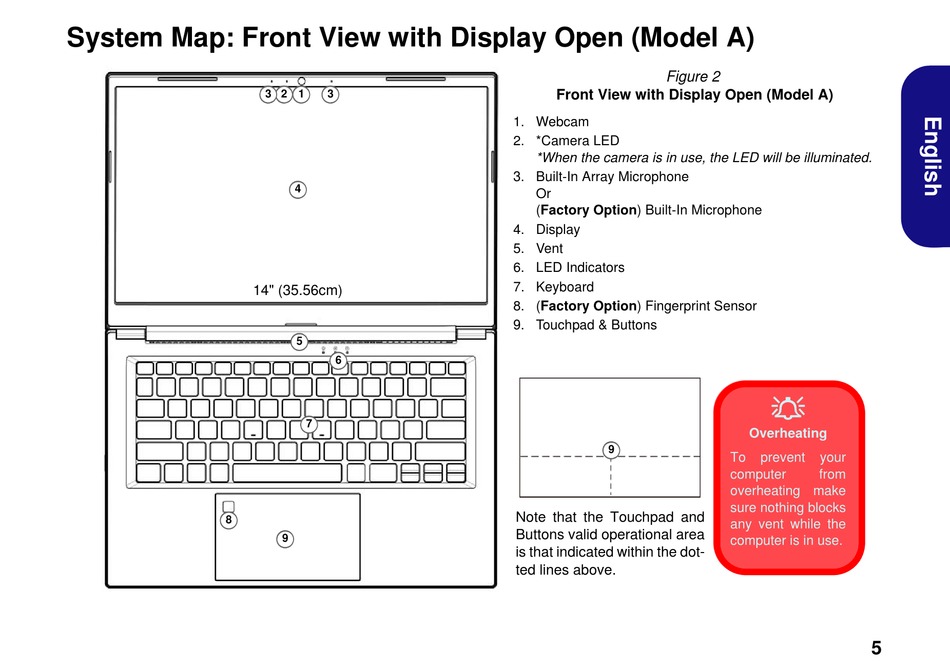

System Map: Front View with Display Open (Model A)
8
3
2
1
3
4
14" (35.56cm)
5
6
7
9
Figure 2
Front View with Display Open (Model A)
1. Webcam
2. *Camera LED
*When the camera is in use, the LED will be illuminated.
3. Built-In Array Microphone
Or
(Factory Option) Built-In Microphone
4. Display
5. Vent
6. LED Indicators
7. Keyboard
8. (Factory Option) Fingerprint Sensor
9. Touchpad & Buttons
9
Note that the Touchpad and
Buttons valid operational area
is that indicated within the dot-
ted lines above.
Overheating
To
prevent
your
computer
from
overheating make
sure nothing blocks
any vent while the
computer is in use.
5
