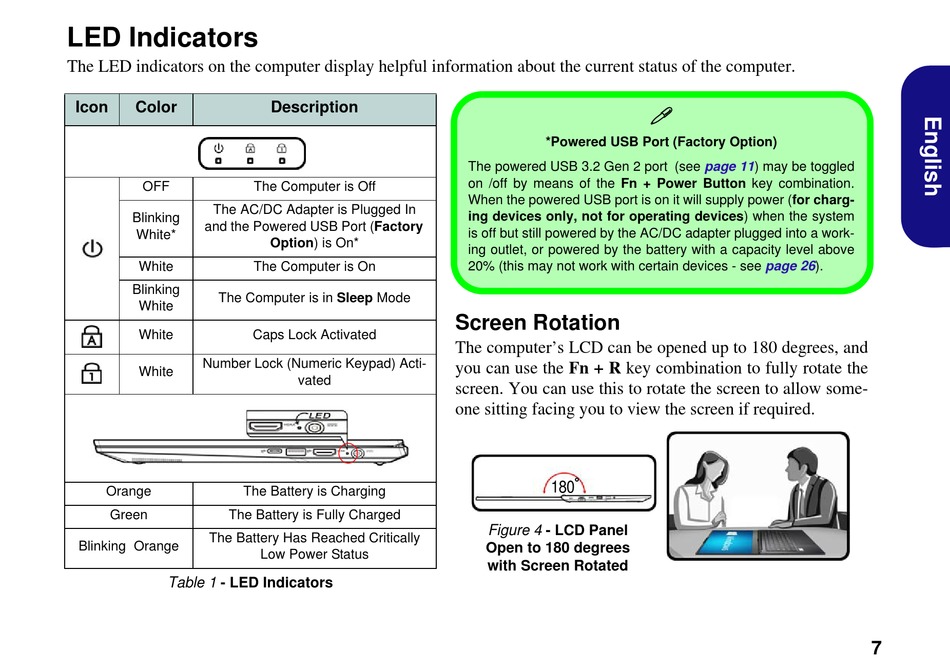

LED Indicators
The LED indicators on the computer display helpful information about the current status of the computer.
Icon
Color
OFF
The AC/DC Adapter is Plugged In
Blinking
and the Powered USB Port (Factory
White*
White
Blinking
The Computer is in Sleep Mode
White
White
Number Lock (Numeric Keypad) Acti-
White
Orange
The Battery is Charging
Green
The Battery is Fully Charged
The Battery Has Reached Critically
Blinking Orange
Table 1 - LED Indicators
Description
The Computer is Off
Option) is On*
The Computer is On
Caps Lock Activated
vated
Low Power Status
*Powered USB Port (Factory Option)
The powered USB 3.2 Gen 2 port (see
on /off by means of the Fn + Power Button key combination.
When the powered USB port is on it will supply power (for charg-
ing devices only, not for operating devices) when the system
is off but still powered by the AC/DC adapter plugged into a work-
ing outlet, or powered by the battery with a capacity level above
20% (this may not work with certain devices - see
Screen Rotation
The computer's LCD can be opened up to 180 degrees, and
you can use the Fn + R key combination to fully rotate the
screen. You can use this to rotate the screen to allow some-
one sitting facing you to view the screen if required.
180
ﾟ
Figure 4 - LCD Panel
Open to 180 degrees
with Screen Rotated
page
11) may be toggled
page
26).
7
