System Map: Front View with Display Open (Model B)

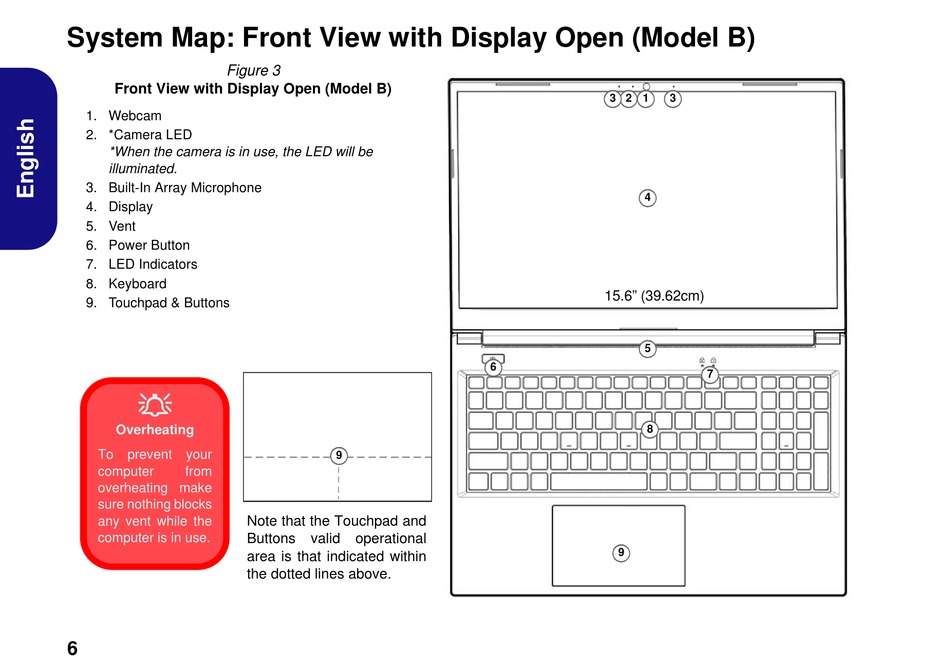

Figure 3
Front View with Display Open (Model B)
1. Webcam
2. *Camera LED
*When the camera is in use, the LED will be
illuminated.
3. Built-In Array Microphone
4. Display
5. Vent
6. Power Button
7. LED Indicators
8. Keyboard
9. Touchpad & Buttons

Overheating
To prevent your
computer from
overheating make
sure nothing blocks
any vent while the Note that the Touchpad and
computer is in use. Buttons
area is that indicated within
the dotted lines above.
