1 System Description

The entire system consists of instrument, docking station, checking tiles and software for
data transfer and analysis.

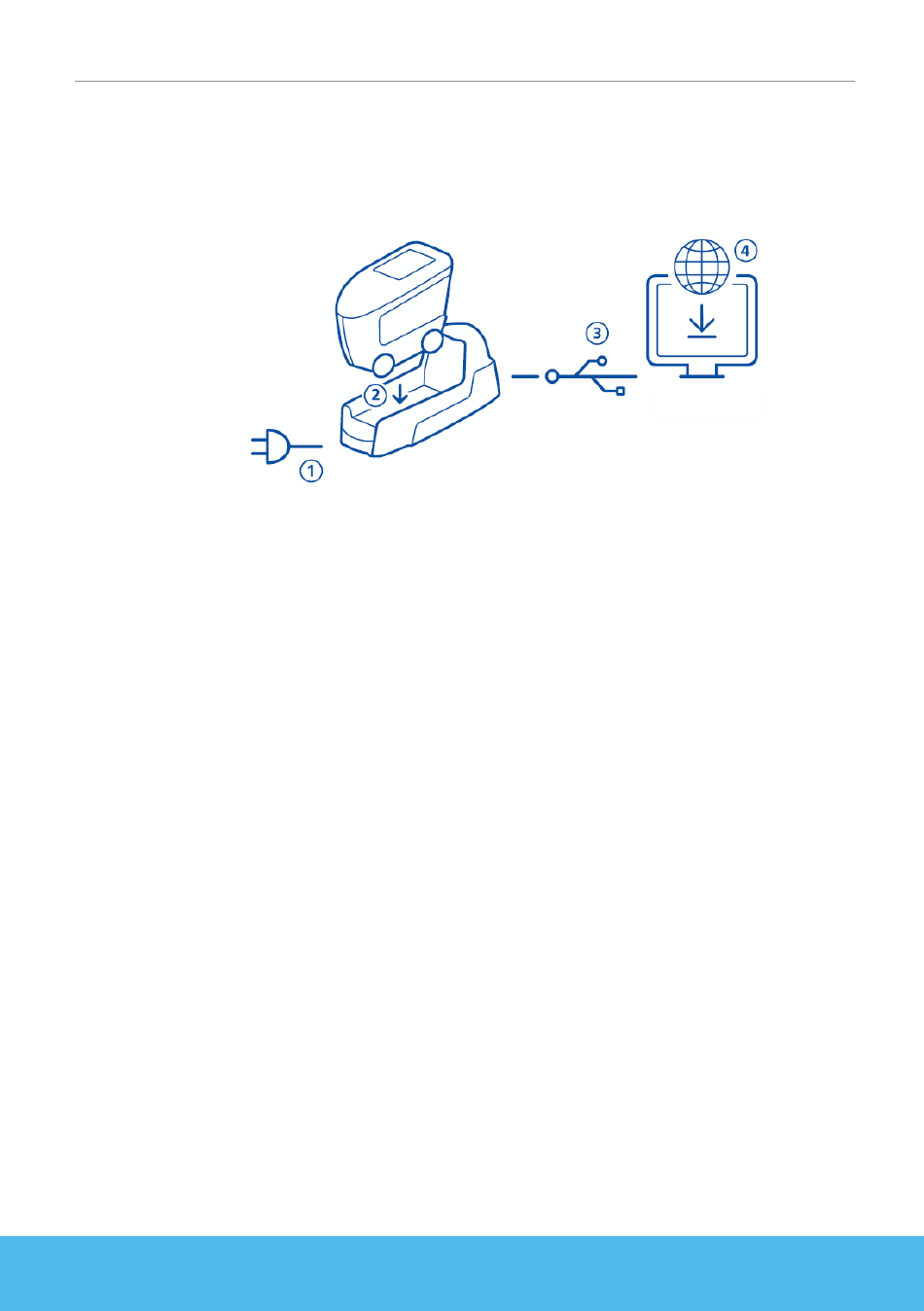

1. Connect docking station with power supply (1).
2. Place instrument in the docking station (2).
3. Docking station automatically charges battery pack
in docking station and in instrument.
4. Connect docking station with PC via USB cable (3).
5. Download and install "smart-chart" software (4).
6. Turn instrument on by pressing the Operate button.
