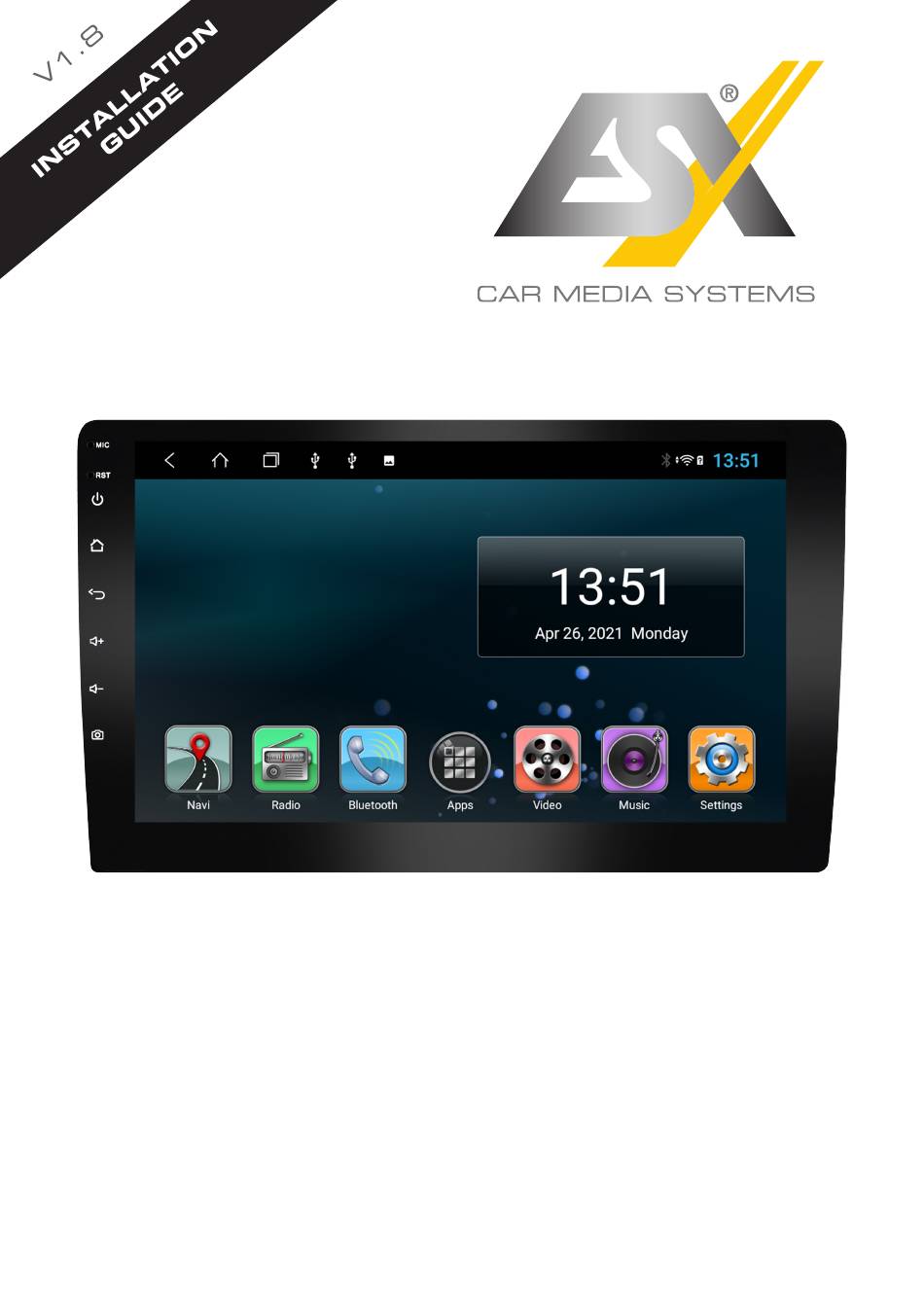

- Seite 1 VN1050-MA-DBJ-4G VN1050-MA-RM-4G VN1050-MA-FT-4G SMART NAVICEIVER MOBILE INTERNET READY V I S I O N A N D R O I D S E R I E S ™...
- Seite 2 IMPORTANT NOTES This guide is an aid for the professional installation of the device. Please note the following notes before installation: • Always handle all parts of the device and the components of your vehicle with care. • Under all circumstances observe the regulations of the vehicle manufacturer and do not make any changes to the vehicle which could impair driving safety.
-
Seite 3: Reset Button
MICRO SD SLOT FOR NAVIGATION SOFTWARE You can insert the MicroSD card of the navigation software here. Please only use the upper MicroSD card slot. The lower MicroSD card slot is only suitable for media. RESET BUTTON If the device stops responding to input, the system is overloaded or crashed. Then reboot the system by pressing the reset button (RST) on the front panel. - Seite 4 SCOPE OF DELIVERY VN1050-MA-DBJ-4G ITEM FIGURE QUANTITY ISO system cable set for Fiat Ducato platform Please note the information on page 10 VNA-EB-DBJ-1DIN for Fiat Ducato platform Installation set VNA-LFB-FD6 Adapter for analog steering wheel remote control VNA-ANT9 Antenna adapter...
- Seite 5 SCOPE OF DELIVERY VN1050-MA-FT-4G ITEM FIGURE QUANTITY System cable set for Ford vehicles with CAN bus decoder SCOPE OF DELIVERY BASIC DEVICE ITEM FIGURE QUANTITY Main device Monitor AV cable set 1 with all audio and video connections as well as connection for external microphone (20-pin connector) AV cable set 2...
- Seite 6 SCOPE OF DELIVERY BASIC DEVICE ITEM FIGURE QUANTITY USB ports (8-pin connector) 4G/LTE dongle (6-pin connector) GPS antenna WIFI antenna DAB antenna 4G/LTE antennas...
-
Seite 7: Connection Assignment
WIRING DIAGRAM WiFi antenna 4G/LTE antennas Inputs for AV cable sets 20-pin system socket (G and D can be assigned with fuse for later accessories) DAB antenna GPS antenna Radio antenna Connection assignment 1 CVBS-OUT1 2 CVBS-OUT2 3-4 NC 5 C-POW 6 NC 7 GND 8 NC 9 GND 10 NC... -
Seite 8: General Installation Instructions
Lay the supplied cable sets and antennas in the vehicle. Please note the information on the next page. Then connect all cable sets, antennas and dongles to the ESX main device as described on page 7. Then plug in the cable plug from the radio slot of the vehicle on the ESX main unit or on its vehicle-specific system cable set. - Seite 9 Kleben Sie das Erdungsblatt der Verstärkereinheit auf den Metallteil auf der Frontsäule. GENERAL INSTALLATION INSTRUCTIONS Reinigen Sie die Windschutzscheibe mit auübersicht einem geigneten Reinigungstuch. enne sollte aus Sicherheitsgründen auf der Beifahrerseite GPS antenna rt werden. The GPS antenna must be glued horizontally to the front of the dash- Remove the film on board.
- Seite 10 ESX Naviceiver. For example, after removing the original radio, the on-board electronics cause an error message and the odometer read- ing starts to flash.
- Seite 11 VNA-EB-DBJ-1DIN Einbau der 1-DIN Blende INSTALLATION INSTRUCTIONS VN1050-MA-DBJ-4G usbau der Ablagefächer ie Fächer können, mit leichtem Druck der Finger an den Seiten (rote Kreise), herausgezogen werden. Montagevorbereitung s empfiehlt sich das obere Fach zuerst zu entfernen. Bevor die neue Blende in den Radioschacht eingebaut werden kann bedarf es einiger Vorbereitungen.
- Seite 12 Mounting brackets 1-DIN Screw the two enclosed mounting brackets Slide the ESX main device into the low- onto the main unit on the left and right. Use er 1-DIN radio slot of the vehicle and then the enclosed screws for this.
-
Seite 13: Assembling The Device
ASSEMBLING THE DEVICE Slide the monitor onto the bracket on the main unit and release the two retaining brackets on the side by sliding them outwards. Plug in the connector of the monitor to the main unit. IMPORTANT NOTE: If the monitor does not work after connecting it to the main device, the connector of the con- necting cable may not be properly engaged. - Seite 14 SETUP THE 4G/LTE INTERNET CONNECTION First lay the two 4G/LTE antennas inside the dashboard towards the windshield, one antenna for the left and one for the right. Ideally, you should stick the antennas to the windshield to ensure optimal recep- tion.
- Seite 15 SETUP THE 4G/LTE INTERNET CONNECTION Then turn on the device to test the 4G/LTE connection. After the device has started, enter After successful entry, the SIM card is your 4-digit PIN code of the SIM card unlocked. If the device is successfully here.
- Seite 16 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de © All rights reserved. Subject to technical changes and errors.
