Playback volume limitation
provides enough output power for elevated listening volume. But you can adjust,
The
how loud the
shall playback when the volume control on the top is set to maximum.
To setup a limited maximum volume,
offers a hidden control (17) below its backcover.
To set the maximum allowed volume, open the backcover (unscrew with a coin) and locate the
small volume limiter knob.
For adjusting the maximum allowed volume, playback a typical audio track by the
and
turn the volume control on the top to maximum position. The hidden control (17) on the backside
of the
can now be adjusted as much as you like it useful for a maximum volume. Your
child shall only operate the normal volume knob on the top, so it cannot overdrive your limited
setting. You have the control, which volume can be emitted by this device.
Please always keep the backpanel screwed tight, if you offer the
to your children for
playback.

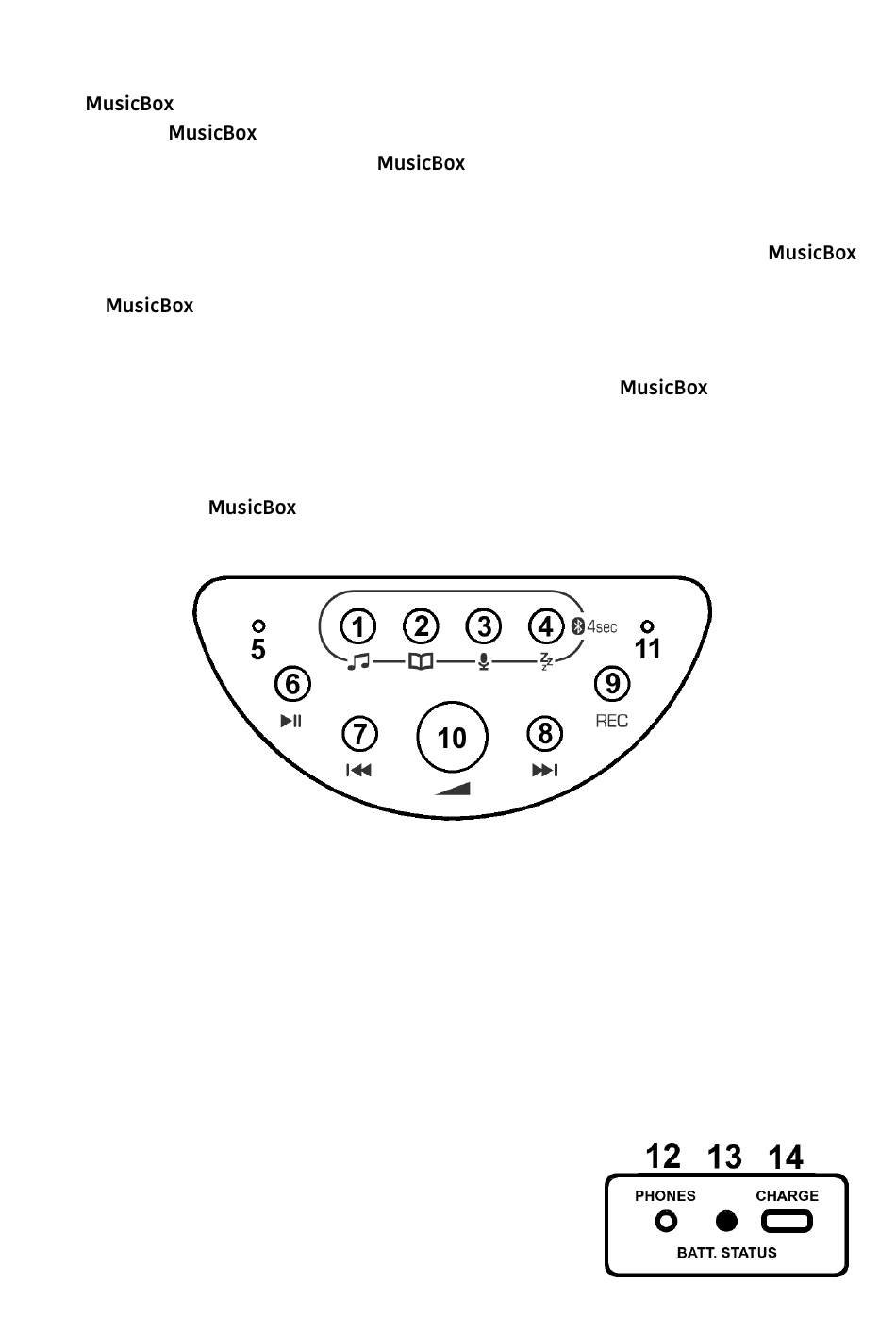

Controls and connectors
All controls of the
can be found on its top control panel. The speaker is placed on the
front under the grille cover. The connectors are placed on the backside.
Power-on and -off is operated by the volume knob (10).
The buttons behind the volume knob are for the selection of the playback content category: 1 =
music (green), 2 = playbook (white), 3 = microphone recordings (purple) and to select sleep
mode and the Bluetooth function.(4, blue)
Right to the buttons, you can find the operation indicator LED (11), which changes its indication
colour according to the chosen operation mode.
Left from the buttons there is a small opening for the built-in microphone (5).
The buttons left and right from the volume knob control the playback functions for the chosen
audio track: 6 = Play/Pause (yellow), 7 = Rücksprung/Rücklauf (black), 8 = Skip/Vorlauf (black)
as well as the recording function (9, red).
The connection panel on the rear offers the headphones
output (3.5mm stereo phono socket) (12), the charging
indication LED (13) and the charging socket (5V, USB C)
(14).
14
