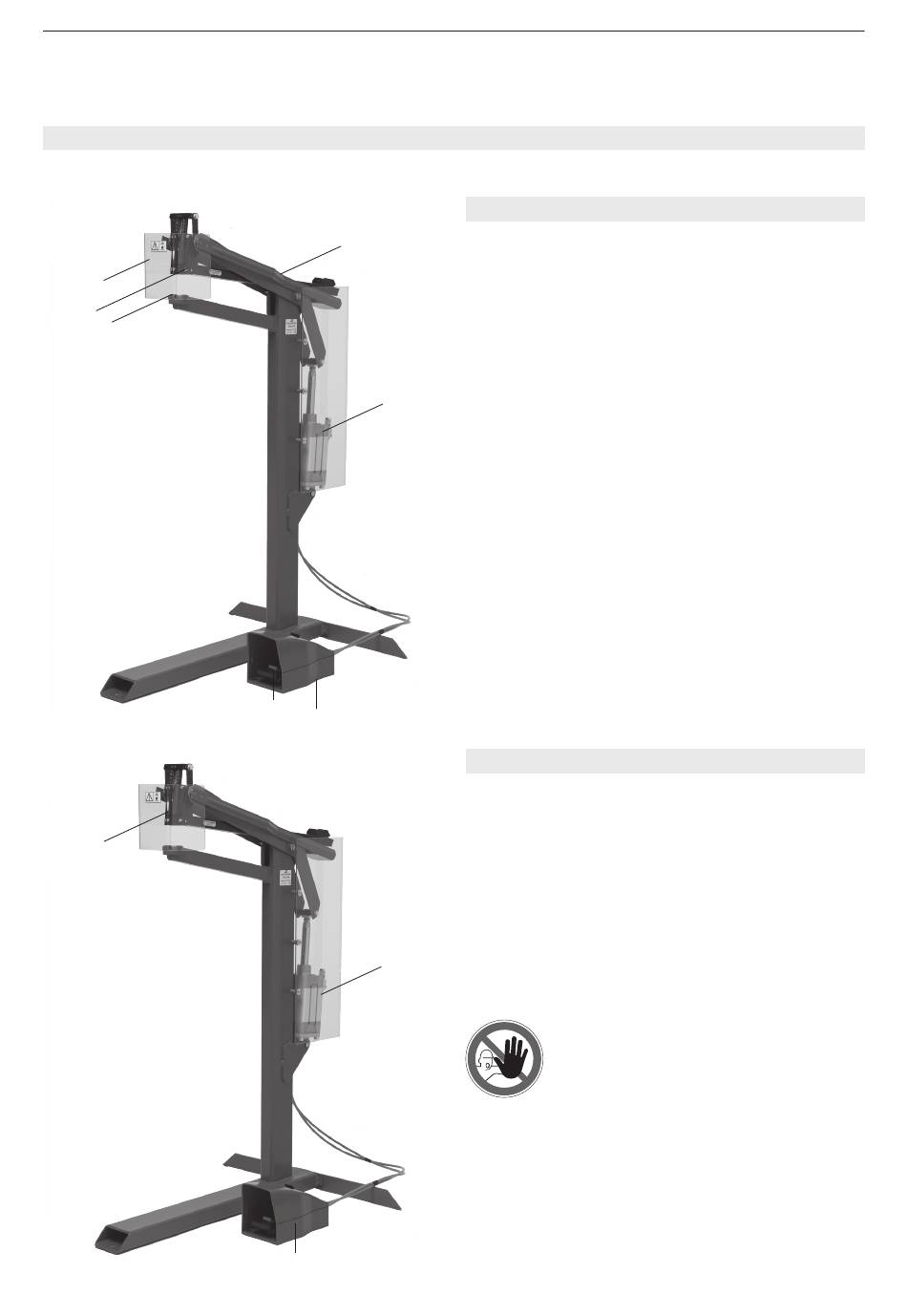

Fig. 1
3
Fig. 2
05.20

DESCRIPTION

6
7
4
5
1
2

4.1 DESIGN

1 Protector
2 Stapling head
3 Anvil
4 Safety latch
5 Foot valve
6 Pusher
7 Pneumatic cylinder

4.2 FUNCTION

1. The pressure cylinder (Fig. 2/1) is activated by the
foot valve (Fig. 2/2).
2. When you press the foot valve the cylinder pres-
ses the stapling head (Fig.2/3) against the manu-
ally positioned carton.
3. The stapling head automatically pushes a staple
through the carton and the staple clinches against
the anvil.
4. When you release the foot valve the stapling
head is returned and the industrial stapler is ready
for next stapling.
Warning: before stapling, ensure that
no part of your body is underneath
the protector.
