Before carrying out any maintenance
tasks on the industrial stapler always
first disconnect it from the air supply.

7.1 LUBRICATION

The linkage bearings are greased at delivery.
At regular intervals (monthly) lubricate them with oil.
Also lubricate the moving parts in the stapling head
with a few drops of oil.

7.2 CLEANING THE INDUSTRIAL STAPLER

This industrial stapler does not require special servi-
cing. It only needs regular cleaning with a non-aggres-
sive (non-corrosive) cleaning agent. Do not remove
any parts for cleaning purposes!
Check the proper functioning of all safety
devices daily. Make especially sure that:
– the foot valve safety latch and the protector move
freely without binding or sticking.
– all screws and nuts are securely tightened.

7.3 REMOVING JAMMED STAPLES

Before carrying out any maintenance
tasks on the industrial stapler always
first disconnect it from the air supply.
– Pull the pusher back to take the pressure off the
staple strip.
– Slightly loosen the five screws (Fig. 11/1 and 11/2)
that hold the front plate one turn.
– Remove the jammed staple downwards.
– Retighten the five screws.
10

PREVENTIVE AND CORRECTIVE MAINTENANCE

1
1

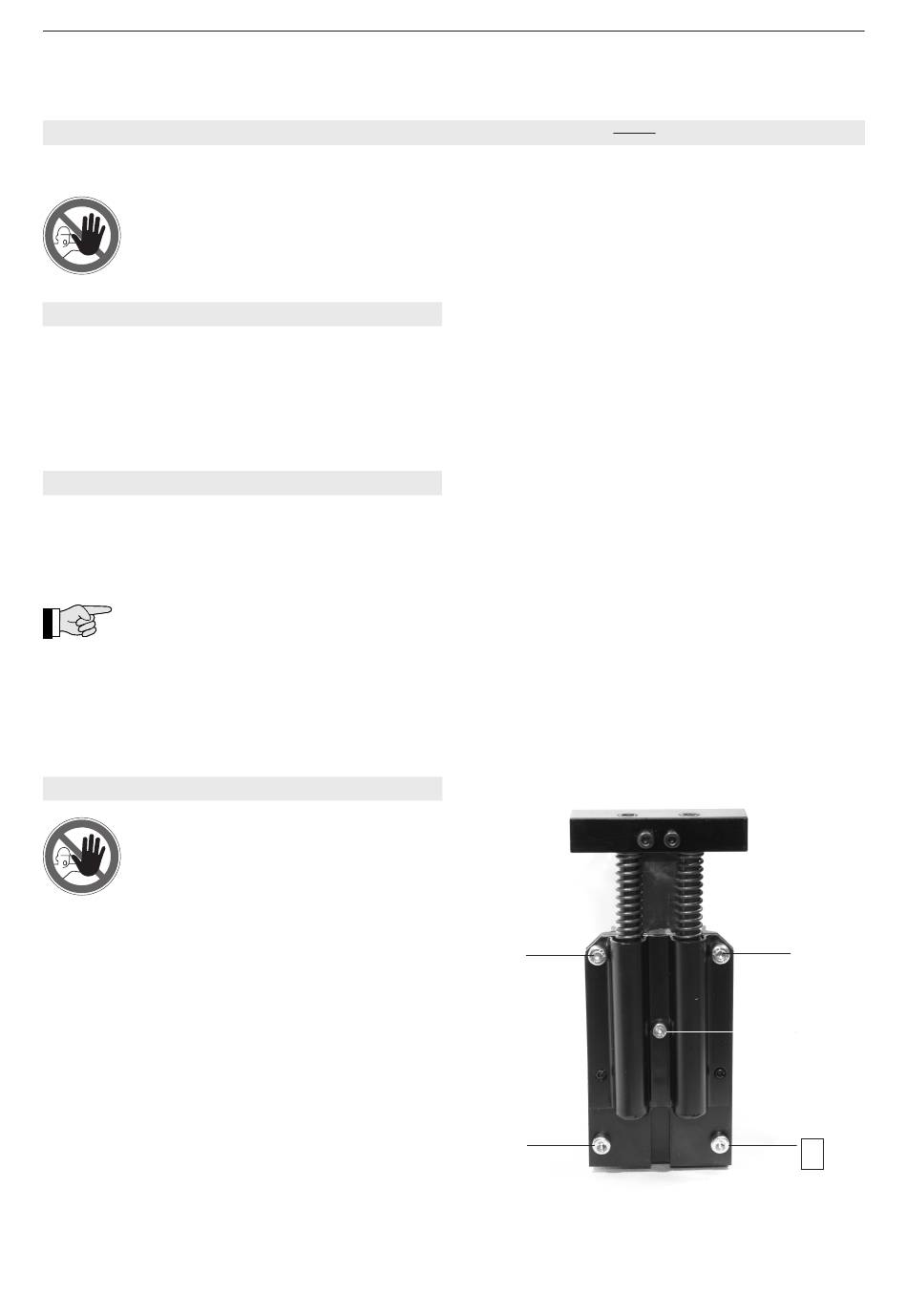

Fig. 11
1
2
1 1
