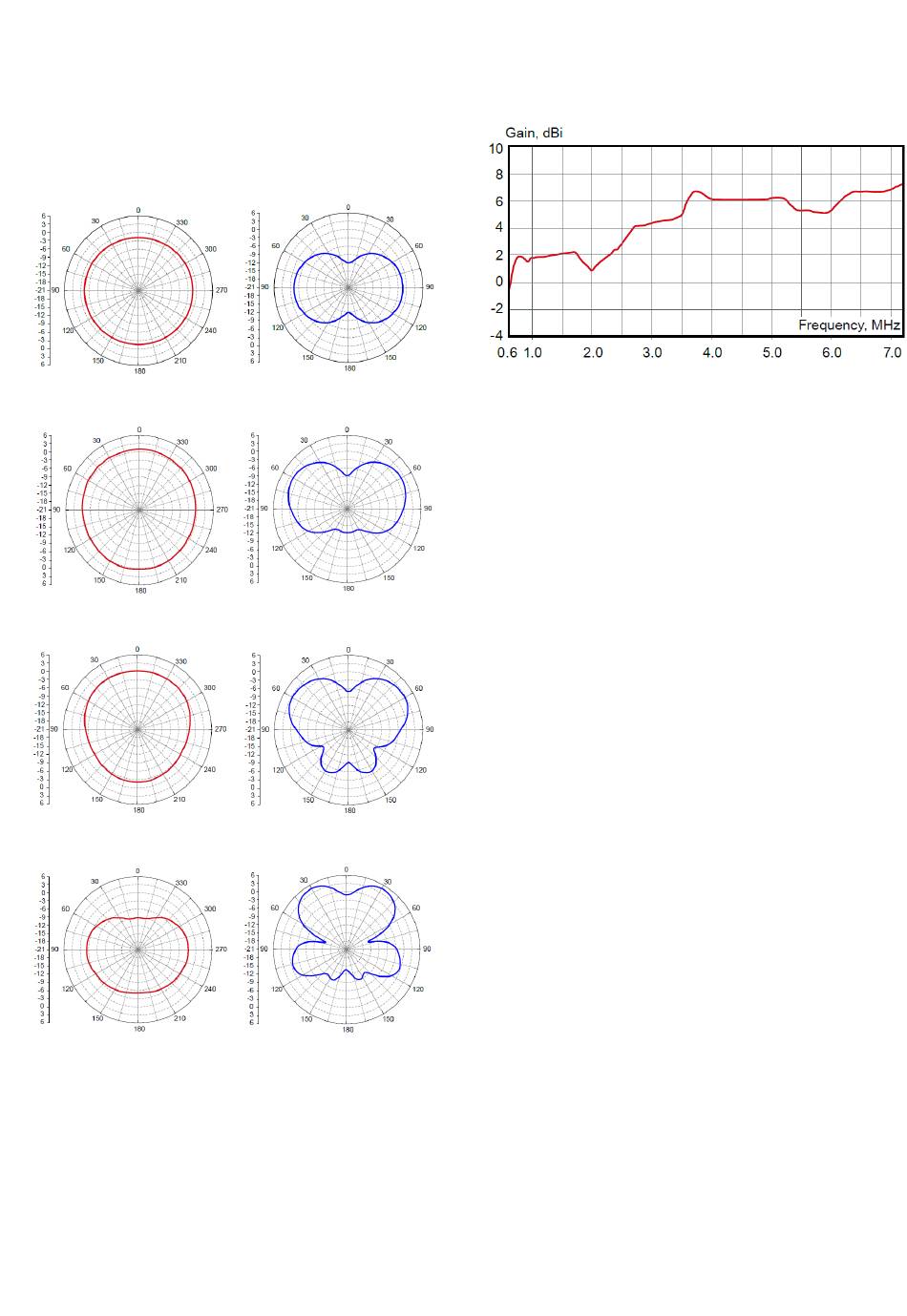

Radiation pattern
Horizontal radiation pattern
Amplitude [dB]
Elevation [deg]
600 MHz
2200 MHz
2600 MHz
3800 MHz
Vertical radiation pattern
Amplitude [dB]
Elevation [deg]
7
Antenna gain
The picture shows the peak antenna gain measured with the antenna on
the bracket supplied without connecting cables:
