SIMPLE HI
assembly instructions 05/2021
TOOLS:
allen key SW4 und SW5 (enclosed), crosstip screwdriver
8x XS bolts
8x connector housing
8x grub screws
1x countersunk bolt (M8x50)
24x confirmat screws

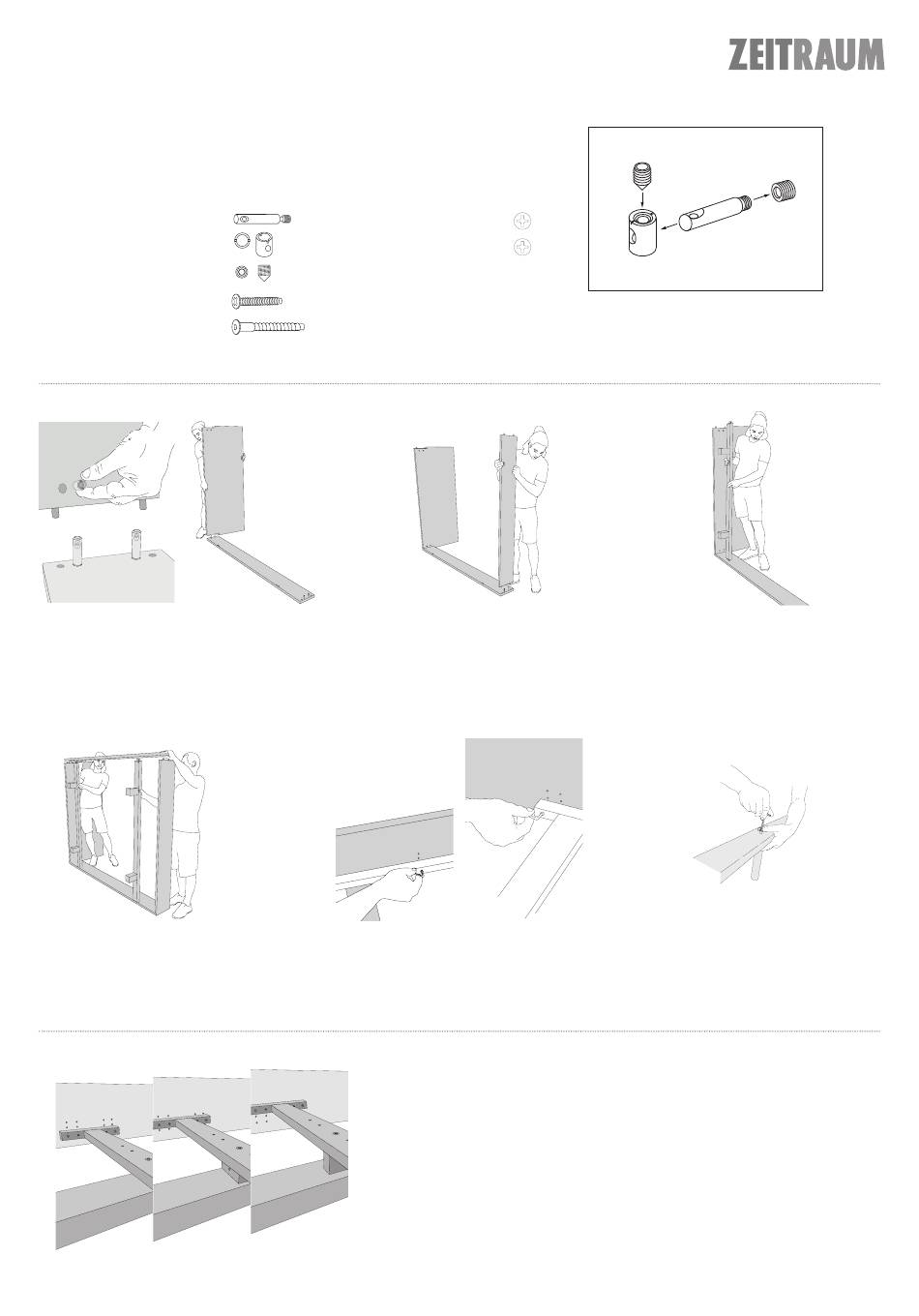

1. Screw the bolts into the long sides and insert
the connector housing into the head and foot
sections. Align bolts and housing correctly!
4. Connect and fix the second sidepiece.
ZEITRAUM GmbH
Äußere Münchner Straße 2
•
2x countersunk bolts (5x60)
2x countersunk bolts (5x80)
2x center feet (13/17 cm), adjustable
2x distance block
Please assemble the bed on a soft surface (e.g. a carpet or blanket) to avoid damages.
2. Attach the head and foot sections and fix
them with grub screws.
5. Fix the side supports using confirmat
screws. For mattresses 140 cm or wider,
fasten the center rail.
without spacer block: insertion depth 14,5 cm
horizontal spacer block: insertion depth 12,5 cm
standing spacer block: insertion depth 10,5 cm
Use the countersunk screws in the correct length
(5x60/80) to fix the spacer block.
D-82515 Wolfratshausen
Tel + 49 (0) 8171 – 418130
•
•
Watch this video for further information on the metal fitting:
https://www.youtube.com/watch?v=ioIUTDqtvgE
3. Attach the two bed feet to the cross-
bars and mount them to the bed side.
6. Choose the correct center feet and
connect it to the center rail with the
countersunk screw (M8x50). Mind the
right length.
