Scope of delivery
Air jack
Operation manual
Technical specifications
Item No.
Max lifting
capacity
40,000kg
30936005
20,000kg
General
Read and keep the operating instructions.
For the sake of simplicity, the compressed air jack is only called jack in the following.
These operating instructions belong to the device. It contains important information on the commissioning, han-
dling, maintenance and disposal of the jack.
Read the operating instructions carefully, especially the safety instructions, before you put the jack into operation.
Failure to follow this instruction manual may result in injury or damage to the jack.
These operating instructions were created on the basis of the standards and rules valid within the European Un-
ion.
Explanation of symbols
Declaration of Conformity: Products marked with this symbol comply with all applicable regulations of the Euro-
pean Economic Area.

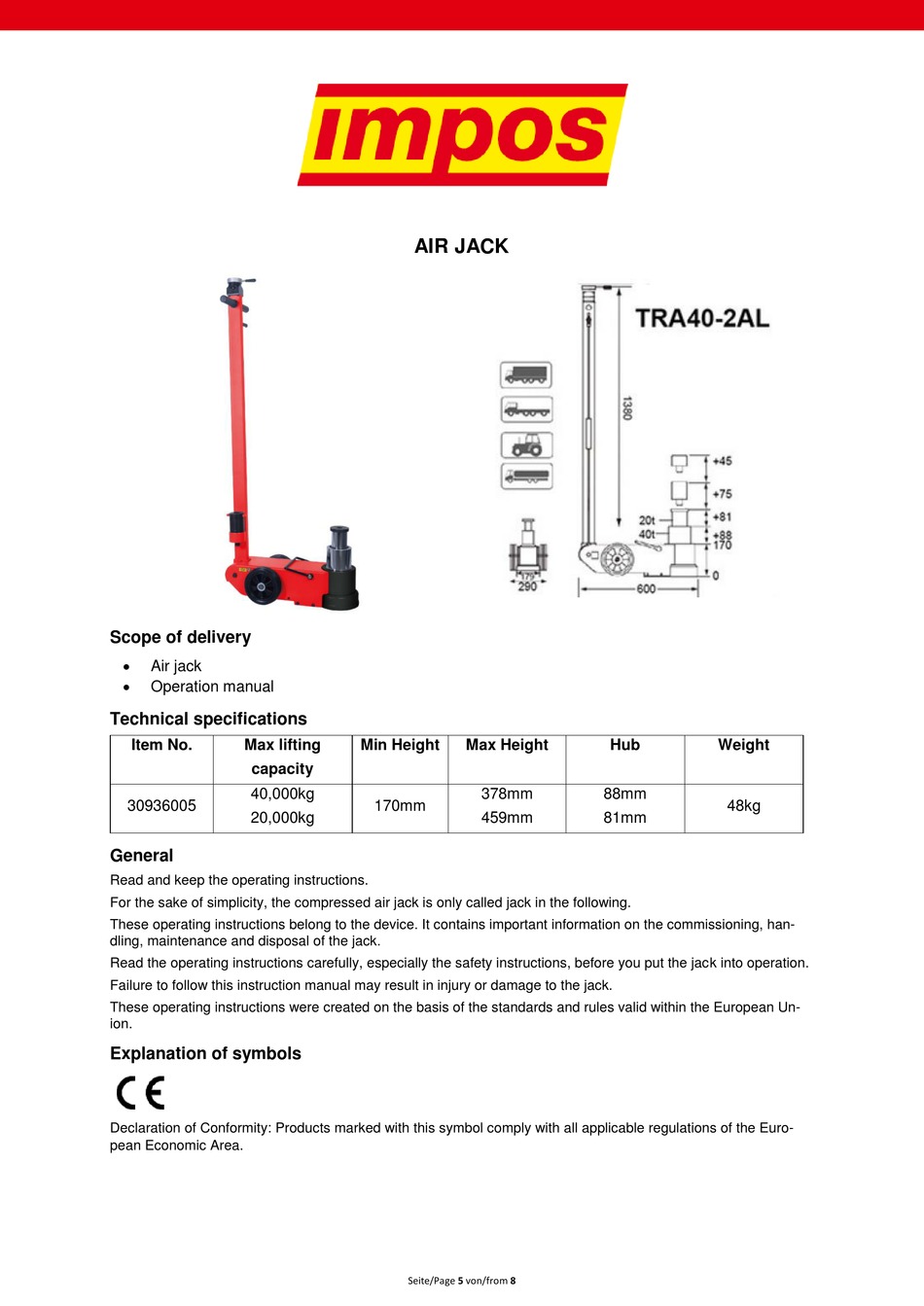

AIR JACK
Min Height
Max Height
378mm
170mm
459mm
Seite/Page 5 von/from 8
Hub
Weight
88mm
48kg
81mm
