3. Layout, LED's & Jumper Setting

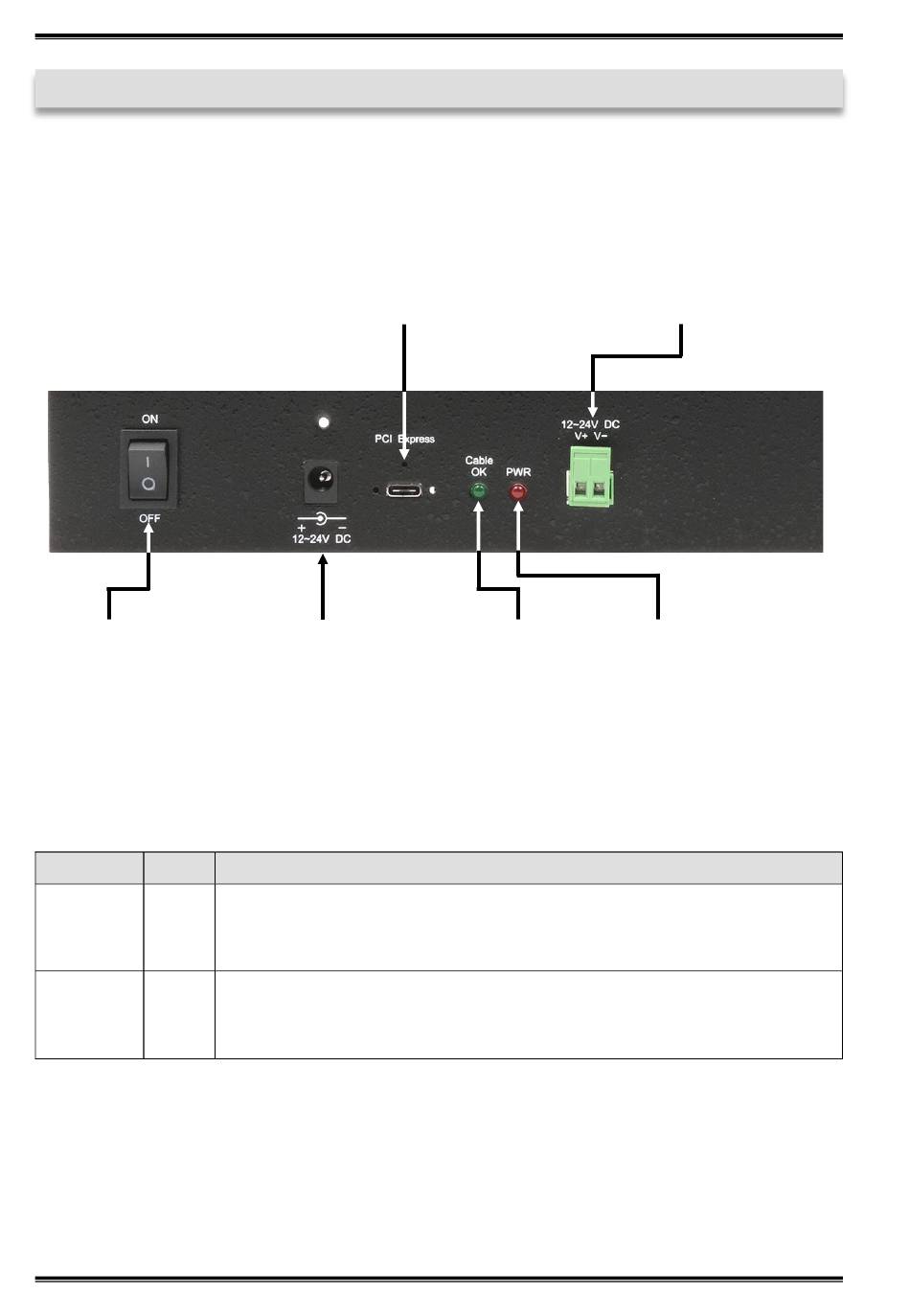

3.1 Layout

Side view:
On-/Off Switch

3.2 LED's

LED's:
LED Name Color
Cable OK Green
PWR Red
© Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved
USB-C-Port for connecting the
PCIe-Host-Adapter-Card
12-24V DC connector for
enclosed Power Supply
Steady On: Connection to the PCIe-Host-Adapter-Card was established correctly
Off: No connection to the PCIe-Host-Adapter-Card
Steady On: The EX-1018 is supplied with power and is ready for operation
Off: The EX-1018 is not supplied with power
12-24V Terminal Block
for optional available
Status LED
LED Function
10
EX-1018
Power Supply
Power LED
