Kicker 49ST4TW Benutzerhandbuch Seite 8

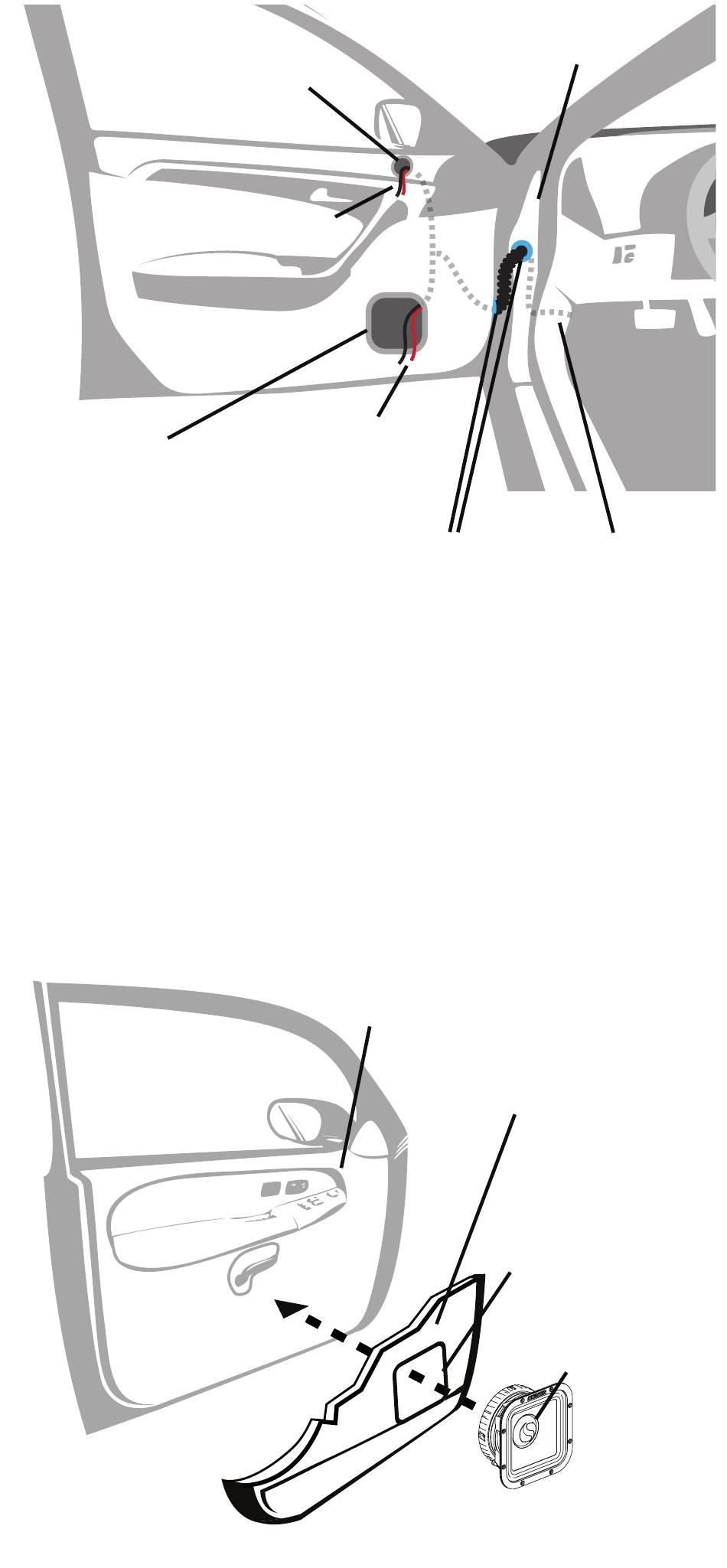

tweeter mounting hole
to tweeter lead wires
woofer mounting hole
If the speaker cut-out locations require you
to cut metal, avoid structural metal and
braces. If the door body and panel cannot
support the weight of the speaker, an
optional reinforcing ring made of suitable
material may be fastened or adhered to the
door body.
English
to woofer
terminals
rubber grommets
door
door jamb
from amplifier or
source unit
door
panel
speaker
cut-out
ST Speaker
8
