WARNING
•
Read the user manual carefully before using the product and
keep it for future reference.
•
Make sure the parts are not damaged before assembly.
•
Make sure the installation is correct and tighten in place before
use.
•
Please contact the distributor if you need any assistance.
Mounting the Jogger Wheel (jogger configuration)
If the drawbar or the buggy wheels are mounted on the bicycle trailer, first
dismantle these elements. The jogger set consists of two wheel arms, a
jogger wheel and a catch strap. The two wheel outriggers are mounted in
a similar way to the drawbar. The left-hand outrigger is inserted into the
receptacle of the drawbar and the right-hand outrigger is inserted into an
identically constructed receptacle on the right-hand side.

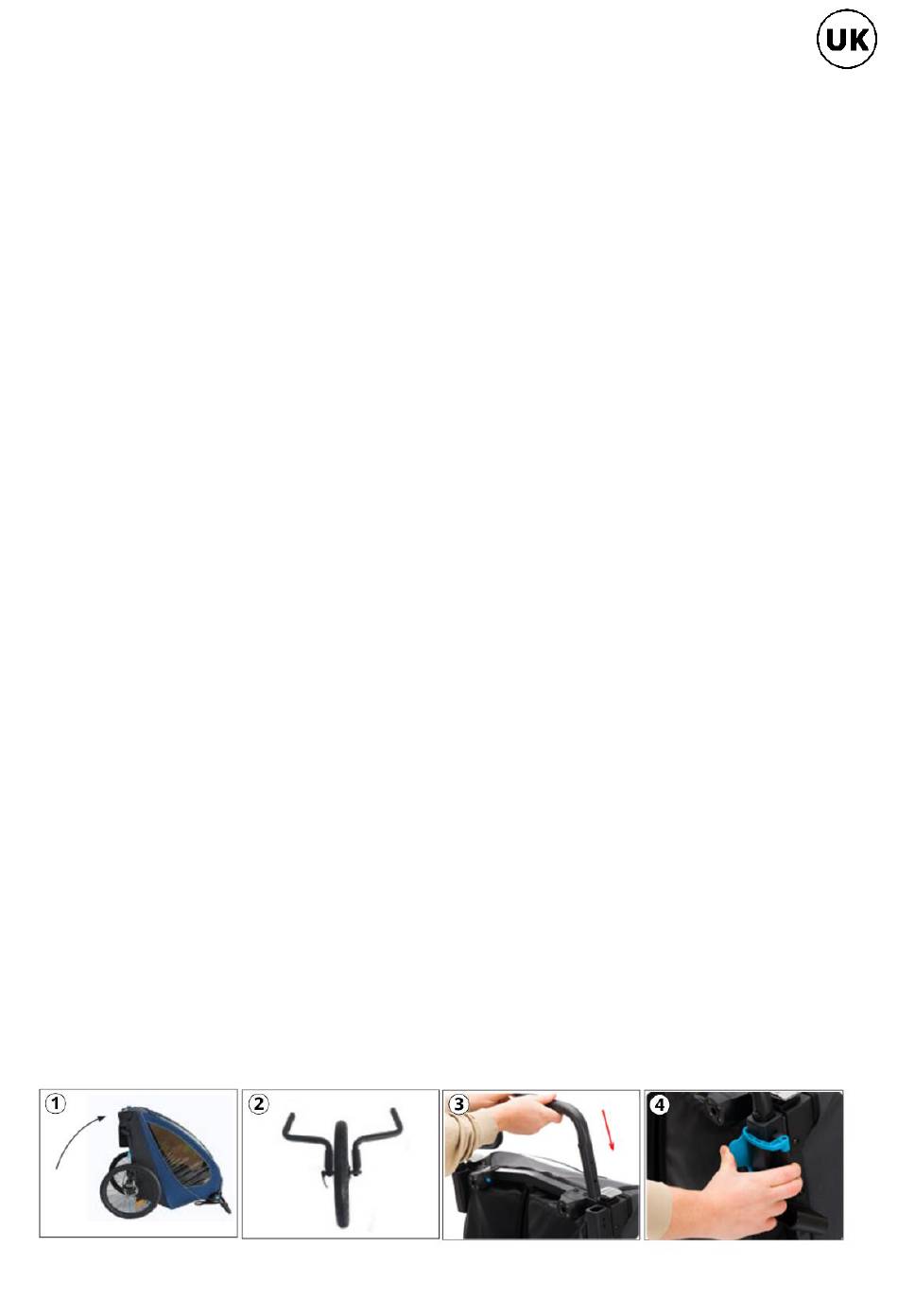

1.
Lift the trailer at the front or tilt it backwards.
2.
Now insert the jogger wheel into the dropouts of the wheel arms
and do not tighten the axle nut completely.
3.
open and remove the blue clips. Then insert the wheel arms into
the receptacles. The blue adjustment wheels must point
downwards.
4.
Fix the wheel arms with the help of the blue clamps. To do this,
insert both steel bolts of the clamp into the holes on the side of
the bicycle trailer and close the clamp. Then tighten the axle
nut, close the quick-release lever. Check that the wheel and
outriggers are fixed by pulling on them.
Note: Opening and closing the clamp is not smooth and requires a certain
amount of force. This is necessary to guarantee a secure hold of the
clamp.
WARNING! The jogger wheel and the wheel outriggers must be
correctly fixed after assembly. Riding with an incorrectly fastened
jogger set can lead to accidents with life-threatening injuries. If in
doubt, contact a specialist workshop!
Tip: If the trailer does not drive exactly straight ahead in the jogger
configuration, the track can be adjusted by turning the adjusting rings on
the dropouts.
