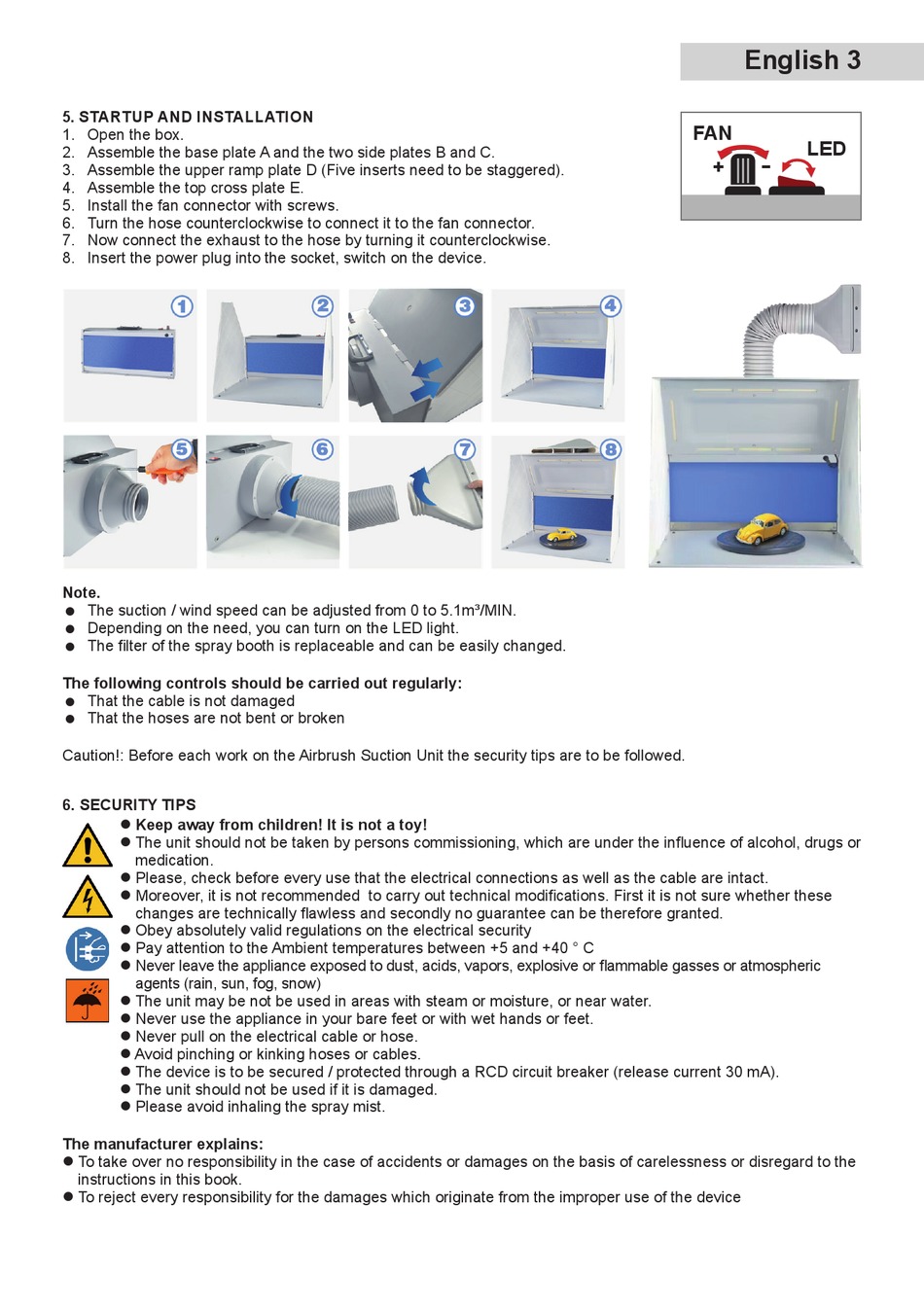

5. STARTUP AND INSTALLATION

1. Open the box.
2. Assemble the base plate A and the two side plates B and C.
3. Assemble the upper ramp plate D (Five inserts need to be staggered).
4. Assemble the top cross plate E.
5. Install the fan connector with screws.
6. Turn the hose counterclockwise to connect it to the fan connector.
7. Now connect the exhaust to the hose by turning it counterclockwise.
8. Insert the power plug into the socket, switch on the device.
Note.
The suction / wind speed can be adjusted from 0 to 5.1m³/MIN.
Depending on the need, you can turn on the LED light.
The filter of the spray booth is replaceable and can be easily changed.
The following controls should be carried out regularly:
That the cable is not damaged
That the hoses are not bent or broken
Caution!: Before each work on the Airbrush Suction Unit the security tips are to be followed.

6. SECURITY TIPS

l Keep away from children! It is not a toy!
l The unit should not be taken by persons commissioning, which are under the influence of alcohol, drugs or
medication.
l Please, check before every use that the electrical connections as well as the cable are intact.
l Moreover, it is not recommended to carry out technical modifications. First it is not sure whether these
changes are technically flawless and secondly no guarantee can be therefore granted.
l Obey absolutely valid regulations on the electrical security
l Pay attention to the Ambient temperatures between +5 and +40 ° C
l Never leave the appliance exposed to dust, acids, vapors, explosive or flammable gasses or atmospheric
agents (rain, sun, fog, snow)
l The unit may be not be used in areas with steam or moisture, or near water.
l Never use the appliance in your bare feet or with wet hands or feet.
l Never pull on the electrical cable or hose.
l Avoid pinching or kinking hoses or cables.
l The device is to be secured / protected through a RCD circuit breaker (release current 30 mA).
l The unit should not be used if it is damaged.
l Please avoid inhaling the spray mist.
The manufacturer explains:
l To take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard to the
instructions in this book.
l To reject every responsibility for the damages which originate from the improper use of the device
English 3
FAN
LED
-
+
