Connection of relay
Pins 10 and 12 are 2 contacts of a relay.

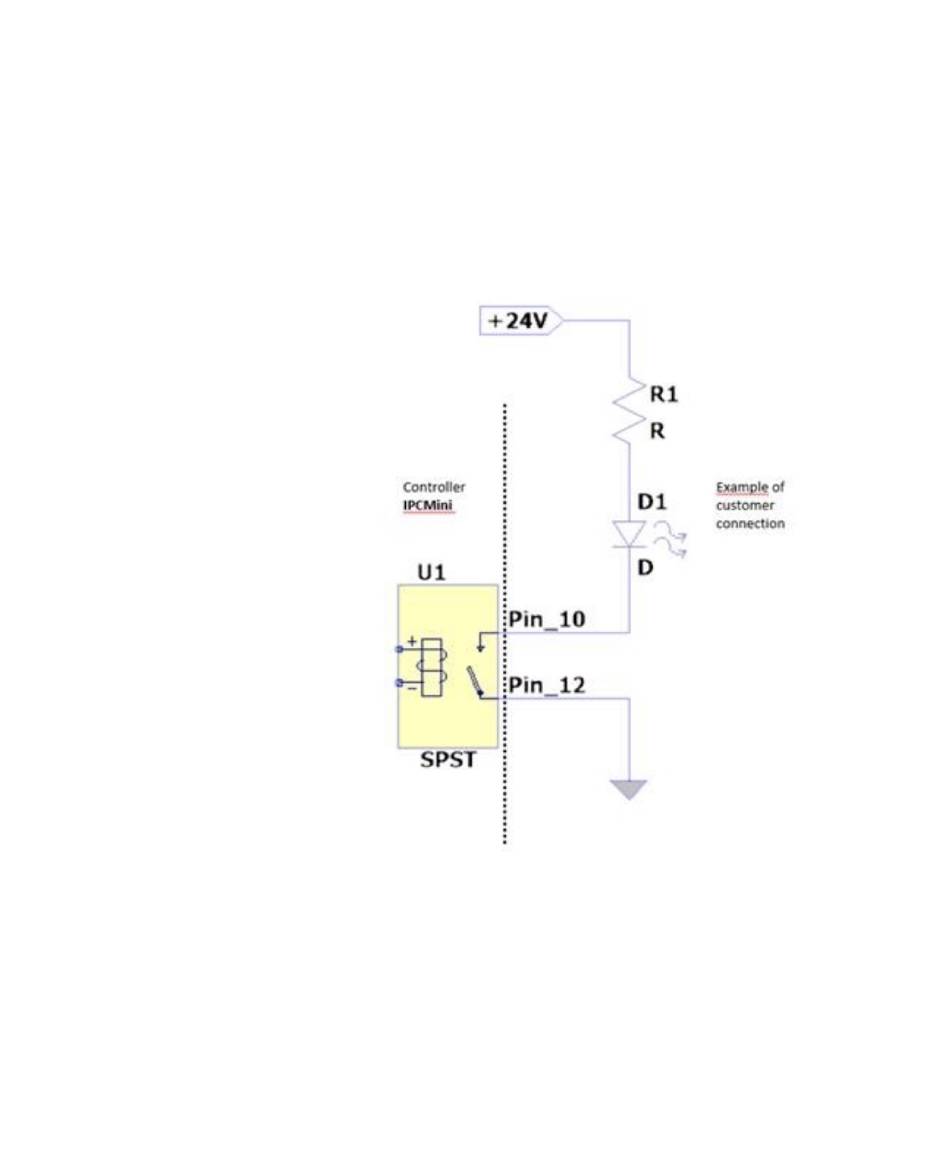

This is an example how to connect the relay to a LED that turns on when the set
point value is reached.
Figure 52
When the set point value is reached, the relay closes.
Current must not exceed 100 mA.
186
Agilent IPCMini Ion Pump Controller User Manual
