HO740 interface fitting instruction

attention!
the following procedures must only be carried out
on condition that the mains (line) power cable is not
connected to the HaMEG instrument and no con-
nection is established at the measurement inputs.
attention!
to avoid damage of the interface during removal
and fitting by electrostatic discharge, please touch
a metal part of the HaMEG instrument for potential
equalisation between oscilloscope and your body.
Abide this connection during the fitting/removing.
Hold the interface by its IEEE-488 socket only.

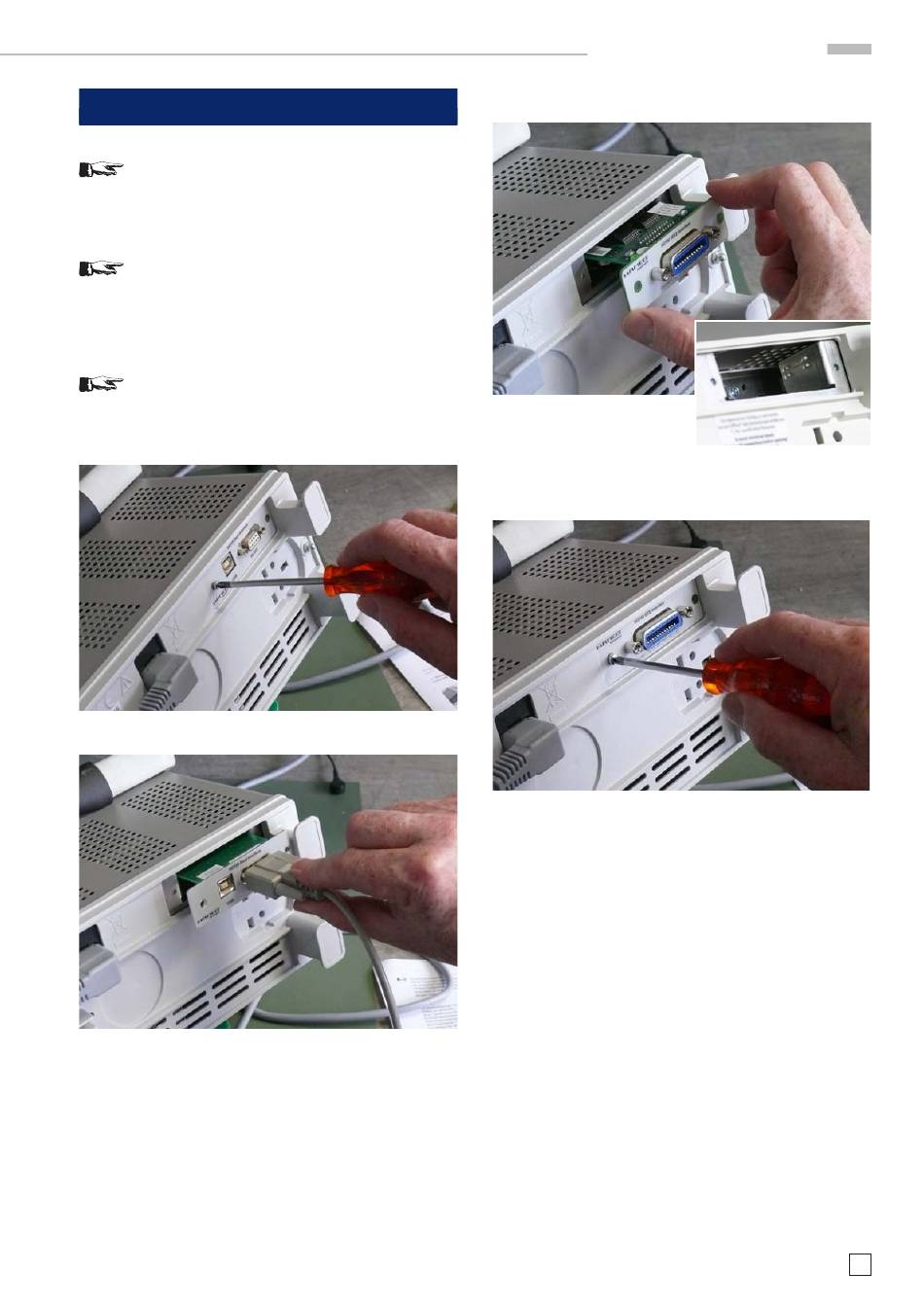

Removal of the installed interface:
Fig. 2.1: remove both fastening screws
Fig. 2.2: Pull out the interface.
f i t t i n g I n s t r u c t i o n
Fitting the interface HO740:
Fig. 2.3: Insert the interface
HO740 in the opening in such a
way, that the board is inserted in
the guidance - visible on both sides – and push it in completely.
Fig. 2.4: Fit the interface with the previously (Fig. 2.1) removed
fastening screws.
