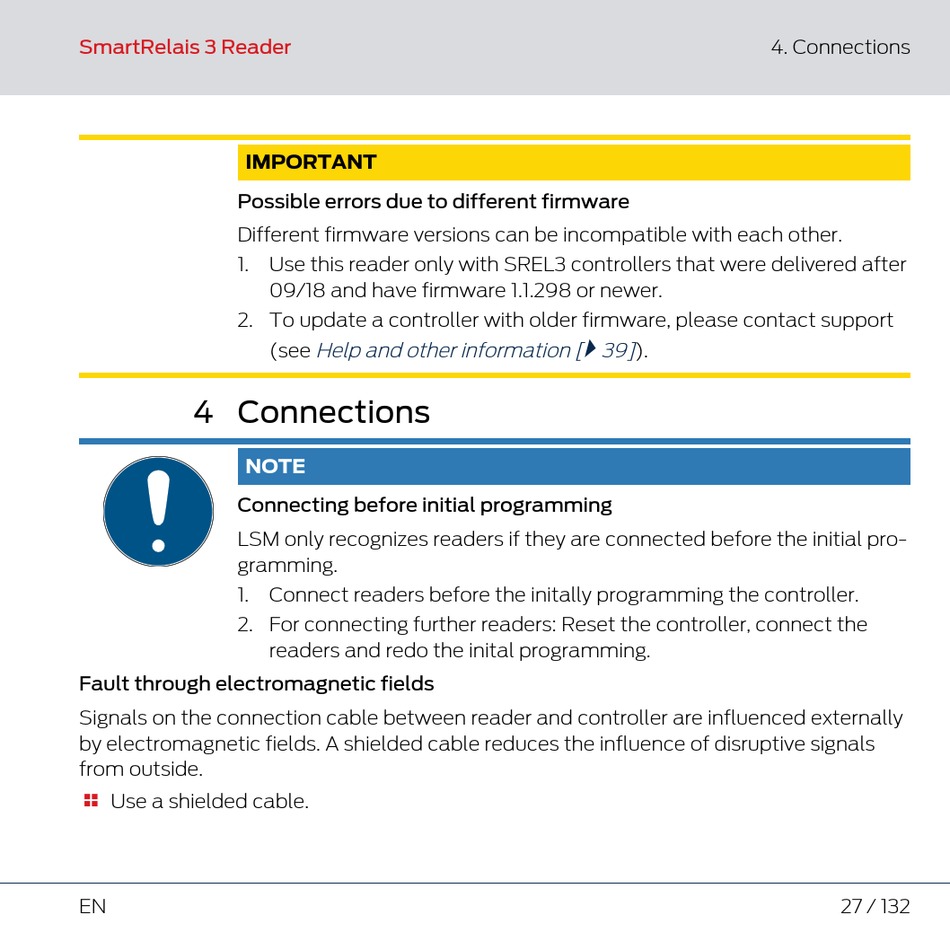

Connections - Simons Voss Technologies SmartRelais 3 Reader Kurzanleitung

SmartRelais 3 Reader
IMPORTANT
Possible errors due to different firmware
Different firmware versions can be incompatible with each other.
1. Use this reader only with SREL3 controllers that were delivered after
2. To update a controller with older firmware, please contact support

4 Connections

NOTE
Connecting before initial programming
LSM only recognizes readers if they are connected before the initial pro-
gramming.
1. Connect readers before the initally programming the controller.
2. For connecting further readers: Reset the controller, connect the
Fault through electromagnetic fields
Signals on the connection cable between reader and controller are influenced externally
by electromagnetic fields. A shielded cable reduces the influence of disruptive signals
from outside.
Use a shielded cable.

EN
09/18 and have firmware 1.1.298 or newer.
Help and other information [
(see
readers and redo the inital programming.
}
39]
).
4. Connections
27 / 132
