Dip-Switches; Pushbutton - Regin PDT 2 Serie Anleitung

Status LEDs

Pushbutton

DIP-switch
Sensor 1
1 2 3 4
1 2 3 4 5
+
24V AC/DC
or DC ±15 %
-

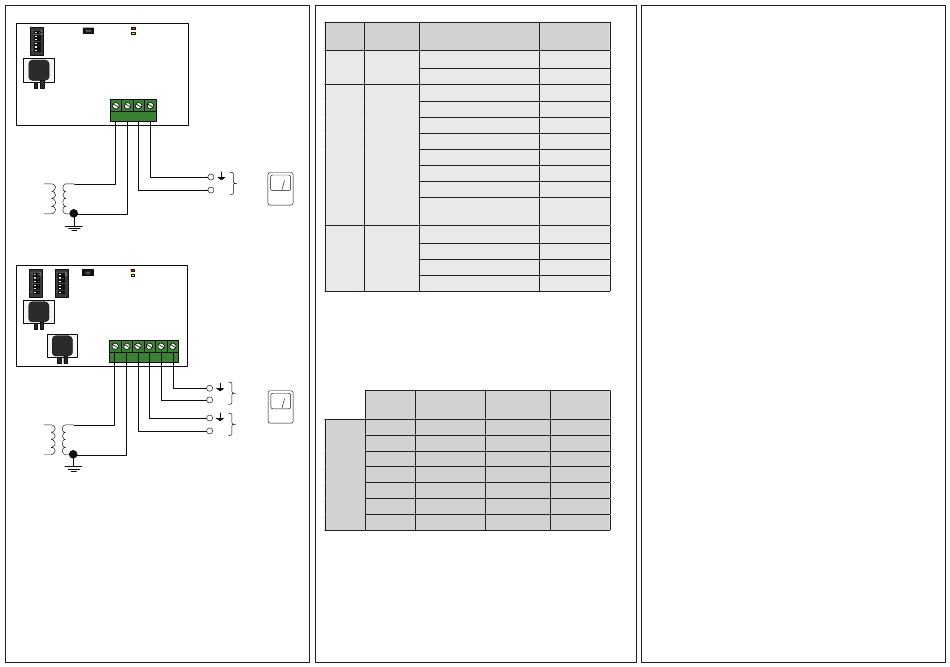

Wiring for models with one sensor
Status LEDs
Pushbutton
DIP-switches 1 (left) and 2 (right)
Sensor 1
1 2 3 4 5 6
1 2 3 4 5 6
Sensor 2
+
24V AC/DC
or DC ±15 %
-
Wiring for models with two sensors

DIP-switches

The transmitter features one or two groups of DIP-switches for setting
up suitable pressure range, output function and damping time factor.
If the DIP-switch settings are changed, all changes will take place
immediately.
If a factory reset is performed, the pressure sensors will be reset to
the factory calibration.
DIP- Parameter Key pattern
switch
1 Output
function
2, 3 Pressure
and 4 range
AO1
+
0...10 V
or
4...20 mA
5 and Damping
6 time factor
Table 1
*
Factory setting
Pressure ranges
DIP-switches 2, 3 and 4 are used to select the current pressure range
of the transmitter (see above). Depending on the sensor model(s) in the
device, the different range settings will yield the following outputs (Pa):
AO2
+ Pressure
range
AO1
Range 1
+
0...10 V
or
Range 2
4...20 mA
Range 3
Output
Range 4
(Pa)
Range 5
Range 6
Range 7
Table 2
Parameter
setting
*
OFF
0...10 V
ON 4...20 mA
*
2 = OFF, 3 = OFF, 4 = OFF
Range 1
2 = ON, 3 = OFF, 4 = OFF Range 2
2 = OFF, 3 = ON, 4 = OFF Range 3
2 = ON, 3 = ON, 4 = OFF Range 4
2 = OFF, 3 = OFF, 4 = ON Range 5
2 = ON, 3 = OFF, 4 = ON Range 6
2 = OFF, 3 = ON, 4 = ON Range 7
2 = ON, 3 = ON, 4 = ON Not used in
this version
*
5 = OFF, 6 = OFF
1 s
5 = ON, 6 = OFF 2 s
5 = OFF, 6 = ON 4 s
5 = ON, 6 = ON 8 s
1250 Pa 2500 Pa 7500 Pa
sensor sensor sensor
0...50 0...100 0...1000
0...100 0...300 0...2000
0...300 0...500 0...3000
0...500 0...1000 0...4000
0...700 0...1500 0...5000
0...1000 0...2000 0...6000
0...1250 0...2500 0...7500
Presigo PDT...(-2)
Pushbutton
Quick press: Zero-set pressure sensors.
Disconnect the pressure ports before zeroing. Let the unit warm
up for 10 minutes before attempting the procedure. Zeroing usu-
ally takes a few seconds. The yellow LED will light up while the
zeroing operation is in progress.
If the yellow LED starts blinking during the zeroing procedure,
the unit has failed to zero-set properly. If so, ensure that the
pressure ports are open and unobstructed and then power-cycle
the unit and try again.
If the procedure still fails, a sensor error is present and the unit
must then be replaced.
Long press (10 s): Reset to factory settings.
The red and yellow LEDs will flash alternating for the duration of
the operation. The unit will then reset and restart.
Status LED
The red status LED will light up at power-on and go out shortly
thereafter when the on-board sensory circuitry is ready for opera-
tion.
Blinking red LED after power-up: The unit has lost important
system settings and must be taken back to the factory for repro-
gramming.
Steady red LED during normal operation: The unit is dam-
aged and should be returned or discarded.
CE
This product carries the CE mark. More information is available
at www.regincontrols.com
Contact
AB Regin, Box 116, 428 22 Kållered, Sweden
Tel: +46 31 720 02 00, Fax: +46 31 720 02 50
www.regincontrols.com, info@regincontrols.com
