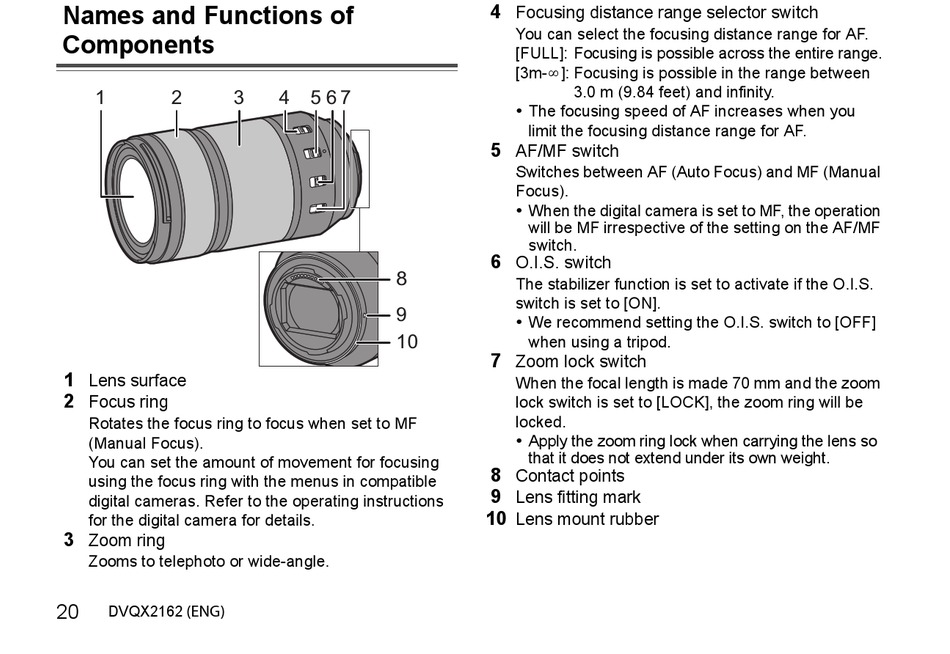

Names and Functions of
Components
1 2
1
Lens surface
2
Focus ring
Rotates the focus ring to focus when set to MF
(Manual Focus).
You can set the amount of movement for focusing
using the focus ring with the menus in compatible
digital cameras. Refer to the operating instructions
for the digital camera for details.
3
Zoom ring
Zooms to telephoto or wide-angle.
20
DVQX2162
(ENG)
3 4 5 6 7
8
9
10
4
Focusing distance range selector switch
You can select the focusing distance range for AF.
[FULL]: Focusing is possible across the entire range.
[3m-¶]: Focusing is possible in the range between
3.0 m (9.84 feet) and infinity.
The focusing speed of AF increases when you
0
limit the focusing distance range for AF.
5
AF/MF switch
Switches between AF (Auto Focus) and MF (Manual
Focus).
When the digital camera is set to MF, the operation
0
will be MF irrespective of the setting on the AF/MF
switch.
6
O.I.S. switch
The stabilizer function is set to activate if the O.I.S.
switch is set to [ON].
We recommend setting the O.I.S. switch to [OFF]
0
when using a tripod.
7
Zoom lock switch
When the focal length is made 70 mm and the zoom
lock switch is set to [LOCK], the zoom ring will be
locked.
Apply the zoom ring lock when carrying the lens so
0
that it does not extend under its own weight.
8
Contact points
9
Lens fitting mark
10
Lens mount rubber
