Introduction
PIR-910 motion detector adopts unique design with dual infrared
sensors and intelligent analysis algorithm which effectively identify
interference signal from body movement signals. It can reduce
false alarm rate caused by pets under 25kgs or other interfering
objects. The detector is suitable for lobby, hallway detection with
a detective range of 0-8 m at front. With low power feedback
function, the users will get SMS alert or push message for low
battery if the detector has been connected to a GSM or Wi-Fi
alarm system.

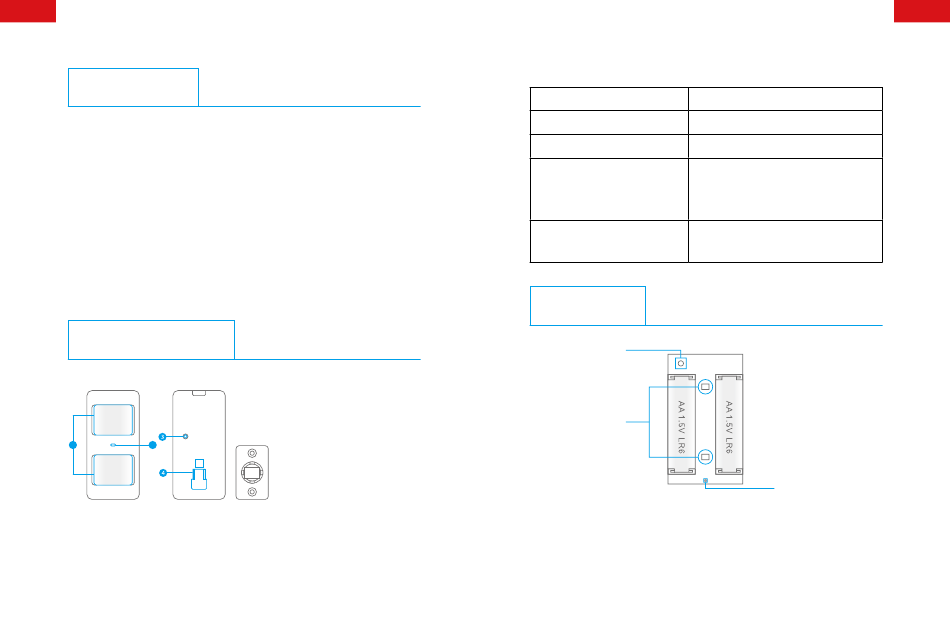

Product Overview

1 2
1. Detection window
2. Status indicator
3. Test button
4. Bracket slot

Status Indication

Display
Blinks continuously Self testing
Blinks once Intrusion detected
Testing mode is finished, the
Blinks twice detector enters power-saving
mode
Low battery, please replace the
Blinks once every 3 seconds
battery as soon as possible

PCB Layout

Tamper switch
Infrared sensor
Infrared sensor: It detects the infrared rays released by human
body motion, please don't touch the surface and always keep it
clean.
EN
Meaning
Status indicator
