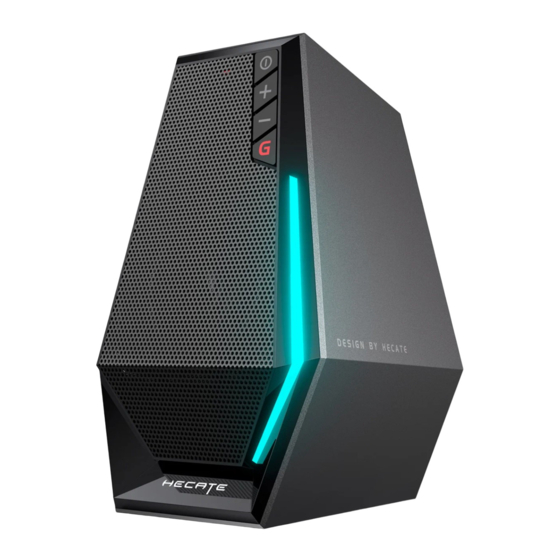

EDIFIER HECATE G1500 Bedienungsanleitung

EN 1. Important safety instruction
• Please read the instructions carefully. Keep it in safe place for future reference.
• Use only accessories approved by the manufacturer.
• Install the instrument properly by following the instructions in the device connection section.
• Using the product in a 0-35°C environment is recommended. Shipping and storing the product
in a 0-35°C environment is recommended.
• To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
• Do not use this product near water. Do not immerge the product into any liquid or have it
exposed to dripping or splashing.
• Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other
devices that generate heat).
• Do not place any object filled with liquids, such as vases on the product; neither should any
open fire, such as lighted candles be placed on the product.
• Do not block any ventilation openings. Do not insert any object into ventilation openings or slots.
It may cause fire or electric shock.
• Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is
recommended).
• Do not force a plug into the jack. Before connection, check for blockage in the jack and whether
the plug matches the jack and is oriented to the right direction.
• Keep the provided accessories and parts (such as screws) away from children to prevent from
being swallowed by mistake.
• Do not open or remove the housing yourself. It may expose you to dangerous voltage or other
hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to
liquid splash or foreign object falling in, exposure to rain or moisture, product not working or
being dropped, etc.), the repair has to be performed by an authorized service professional
immediately.
• Before cleaning the product with dry cloth, always turn off the product and disconnect the
power plug first.
• Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product
surface. Use only neutral solvent or clear water for cleaning.
• The product must be used at an altitude of lower than 2000m.
Excessively loud music may lead to hearing loss. Please keep the volume in a
safe range.
Correct Disposal of this product. This marking indicates that this product should
not be disposed with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
For wireless product:
1. Wireless product may generate shortwave radio frequencies and interfere with the normal use
of other electronic devices or medical equipment.
2. Turn off the product when it's disallowed. Do not use the product in medical facilities, on airplane,
at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
3. Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may
affect the normal operation of the pacemaker or other medical devices.
2. Product Description and Accessories
L
6
Note: Images are for illustrative purposes only and may differ from the actual product.
3. Power Connection
4. Power ON/OFF
5. Audio Input
●
Bluetooth input
• Press the " " button to switch to Bluetooth mode, blue LED will blink.
• Select "HECATE G1500" in your device setting to connect.
• Blue LED will be solid when connected.
x1
Bluetooth input
●
AUX input
• Press the " " button to switch to AUX mode.
• Connect the speaker to audio sources using the AUX audio cable.
• Green LED indicates AUX mode.
x1
AUX input
●
USB audio streaming input
• Press the " " button to switch to USB audio streaming mode.
• Connect the speaker to audio sources using the USB audio cable.
• Red LED indicates USB mode.
x1
USB audio streaming input
6. Controls
x1
2s
x1
2s
x1
2s
x1
2s
x2
7. Specifications
Power output: R/L: 2.5W + 2.5W
Frequency response: R/L: 93Hz-20KHz
Declaration for EU
Frequency Band: 2.402GHz ~ 2.480GHz
RF Power output: ≤10 dBm (EIRP)
There is no restriction of use.
8. Troubleshooting
No sound
• Check if the speaker is ON.
• Turn up the volume by using the volume control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
• Check if there is a signal output from the audio source.
Cannot connect via Bluetooth
• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes,
Bluetooth will not connect. Disconnect from any Bluetooth device by pressing the "
button twice, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within
the range.
• Try another Bluetooth device for connection.
The G1500 does not turn on
• Check if USB power cable is connected.
Noise coming from speakers
• EDIFIER speakers generate little noise, while the background noise of some audio devices
may be too high. Please unplug audio cables and turn the volume up, if no sound can be
heard at 1 meter away from the speaker, then there is no defect.
To learn more about EDIFIER, please visit www.edifier.com
For Edifier warranty questions, please visit the relevant country page on www.edifier.com and review
the section titled Warranty Terms.
USA and Canada: https://support.edifier-online.com/hc/en-us
South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese)
for local contact information.
For more information, please visit our website:
Model: EDF701005
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
© 2022 Edifier International Limited. All rights reserved.
Printed in China
www.hecategaming.com
Designed by DONGGUAN EDIFIER ESPORTS TECHNOLOGY CO., LTD.
NOTICE:
For the need of technical improvement and system upgrade, information contained herein may be
subject to change from time to time without prior notice.
Products of EDIFIER will be customized for different applications. Pictures and illustrations shown
on this manual may be slightly different from actual product. If any difference is found, the actual
product prevails.
G A M I N G
Brand card
R
Input mode switch
USB/AUX/Bluetooth
Power on/off
Volume up
Volume up gradually
Volume down
Volume down gradually
Sound mode switch
Music/Game/Movie
Light effects on/off
*Retain memory without power cut off
Light effects switch
S P E A K E R S
Manual
7
R
8
9
Brand sticker
USB Power Plug
L
Input: 5V
2s
R
R
Indicator light
Power on/off
Volume up
Volume down
Multi-function "G" button
Connect to active speaker
AUX input
USB audio streaming input
Connect to passive speaker
User manual
1A
Power on/off
Setting Bluetooth
Bluetooth
My Device
HECATE G1500
L
L
7
8
AUX
USB
"
