Installation in Conformance with EMC Regulations
6-6
Downloaded from www.Manualslib.com
♦ Every SIMOVERT
MASTERDRIVES has shield
clamps to connect the signal
cable shields.
Serrated bar
Connect serrated bars
at both ends to the
cabinet housing
through the largest
possible surface area!

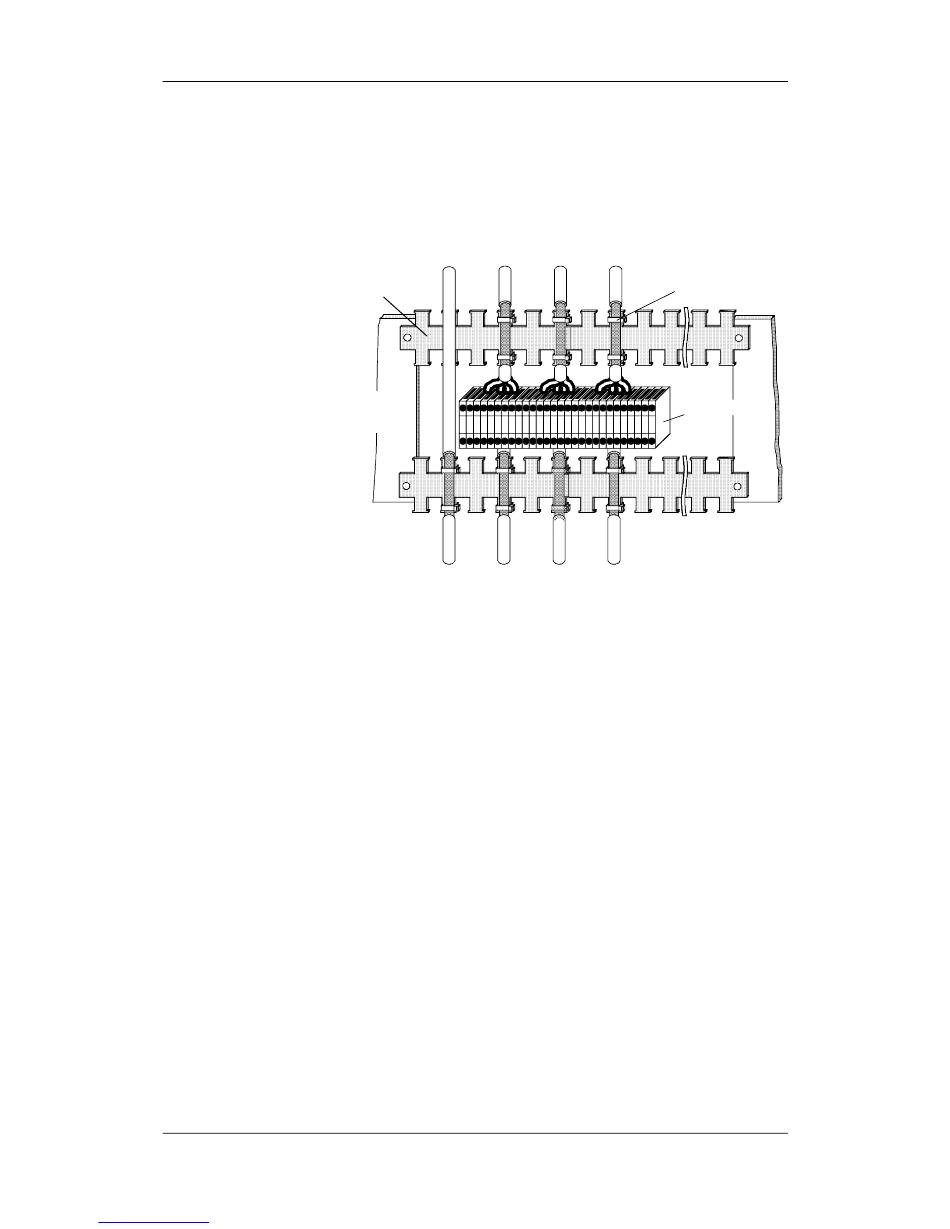

Fig. 6-5
Wherever possible, intermediate terminals should not be used as they
reduce the shielding effect!
manuals search engine
♦ For chassis units (sizes ≥ E),
the shields can be additionally
connected using cable
connectors at the shield
connecting locations.
Connecting signal cable shields in the cabinet
Operating Instructions
08.2009
Cable connector
Intermediate terminals
6SE7087-6JD50 Siemens AG
SIMOVERT MASTERDRIVES
