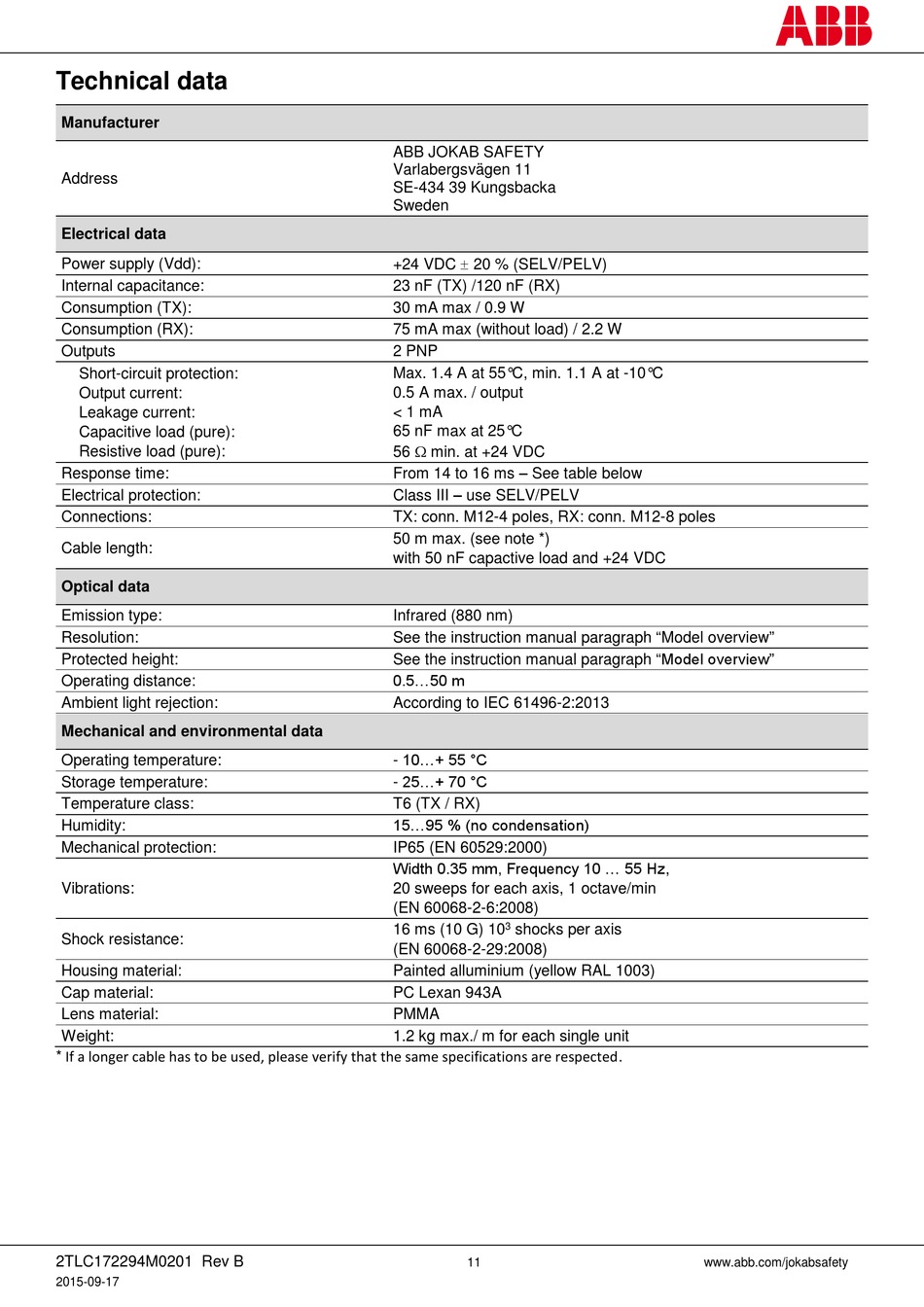

Technical data

Manufacturer
Address
Electrical data
Power supply (Vdd):
Internal capacitance:
Consumption (TX):
Consumption (RX):
Outputs
Short-circuit protection:
Output current:
Leakage current:
Capacitive load (pure):
Resistive load (pure):
Response time:
Electrical protection:
Connections:
Cable length:
Optical data
Emission type:
Resolution:
Protected height:
Operating distance:
Ambient light rejection:
Mechanical and environmental data
Operating temperature:
Storage temperature:
Temperature class:
Humidity:
Mechanical protection:
Vibrations:
Shock resistance:
Housing material:
Cap material:
Lens material:
Weight:
* If a longer cable has to be used, please verify that the same specifications are respected.
2TLC172294M0201 Rev B
2015-09-17
ABB JOKAB SAFETY
Varlabergsvägen 11
SE-434 39 Kungsbacka
Sweden
+24 VDC  20 % (SELV/PELV)
23 nF (TX) /120 nF (RX)
30 mA max / 0.9 W
75 mA max (without load) / 2.2 W
2 PNP
Max. 1.4 A at 55°C, min. 1.1 A at -10°C
0.5 A max. / output
< 1 mA
65 nF max at 25°C
56  min. at +24 VDC
From 14 to 16 ms – See table below
Class III – use SELV/PELV
TX: conn. M12-4 poles, RX: conn. M12-8 poles
50 m max. (see note *)
with 50 nF capactive load and +24 VDC
Infrared (880 nm)
See the instruction manual paragraph "Model overview"
See the instruction manual paragraph "Model overview"
0.5...50 m
According to IEC 61496-2:2013
- 10...+ 55 °C
- 25...+ 70 °C
T6 (TX / RX)
15...95 % (no condensation)
IP65 (EN 60529:2000)
Width 0.35 mm, Frequency 10 ... 55 Hz,
20 sweeps for each axis, 1 octave/min
(EN 60068-2-6:2008)
16 ms (10 G) 10 3 shocks per axis
(EN 60068-2-29:2008)
Painted alluminium (yellow RAL 1003)
PC Lexan 943A
PMMA
1.2 kg max./ m for each single unit
11 www.abb.com/jokabsafety
