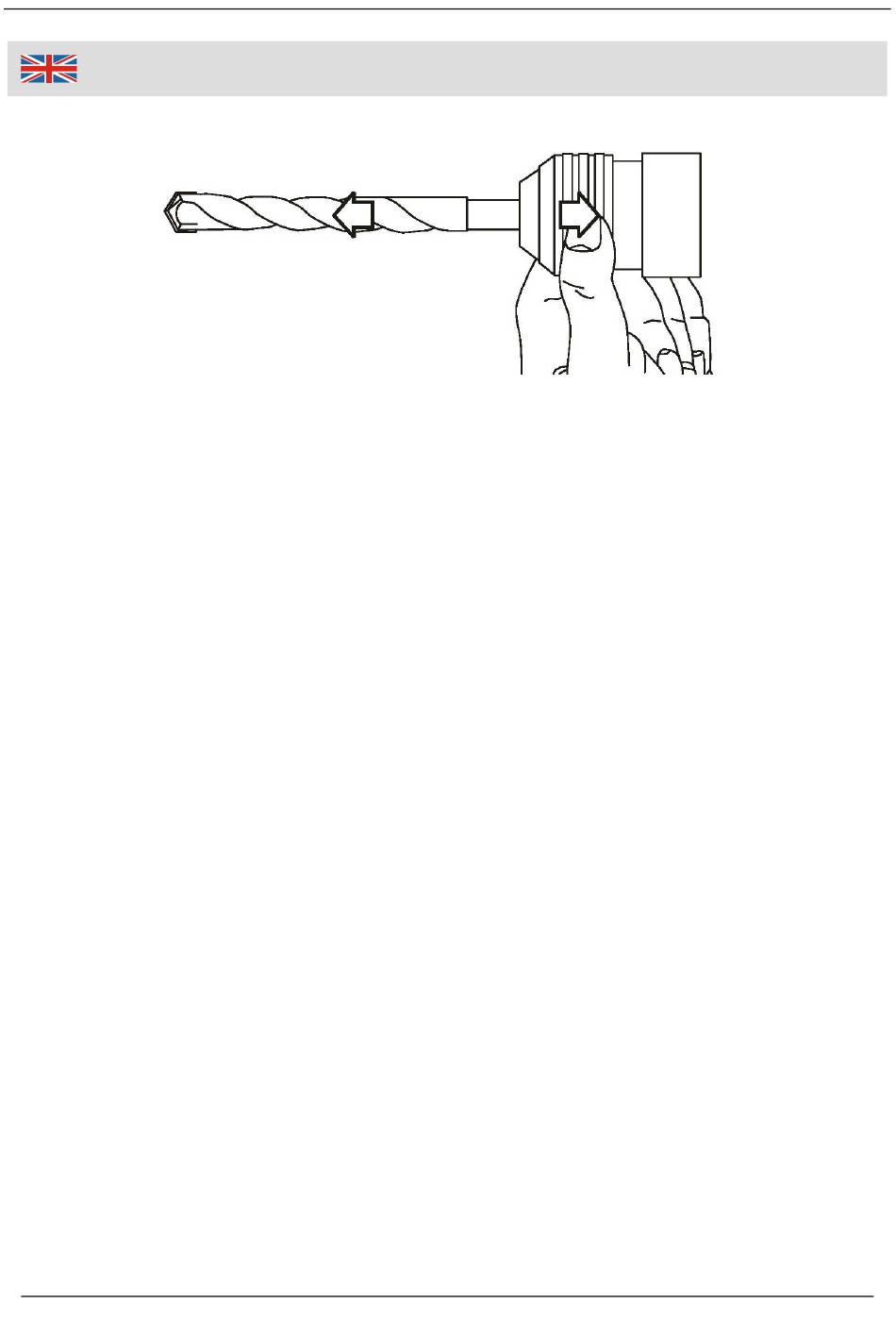

Auxiliary Handle

For your own safety, always use the auxiliary handle (7) with the pneumatic
rotary hammer.
It is attached to the cylindrical part on the front of the housing and can be
adjusted steplessly in various positions.
Twist the handle one turn counter clockwise. It now can be adjusted to the
desired working angle. Then twist it clockwise hand-tight to lock it into position
and make sure it cannot loosen during operation.

Depth Limiter

1. Press and hold the unlocking switch at the topside of the auxiliary handle
(7) and insert the depth limiter into the corresponding opening.
2. Set the desired depth and release the unlocking switch to lock the depth
limiter in its position.

ON/OFF Switch

Connect the power cord to a power outlet. The power LED (5a) shines green.
Press the ON/OFF switch (3) to operate the pneumatic rotary hammer.
Release the ON/OFF switch to turn it off.

Operating Modes

Caution! Only change the operating mode (drilling/impact drilling/chiselling)
when the machine is at a complete standstill.
Use the mode switch (2) to select the desired operating mode of the
pneumatic rotary hammer.
Depress the unlocking switch (12) at the mode switch (2) and turn the mode
switch to select the desired operating mode:
Operation
10
