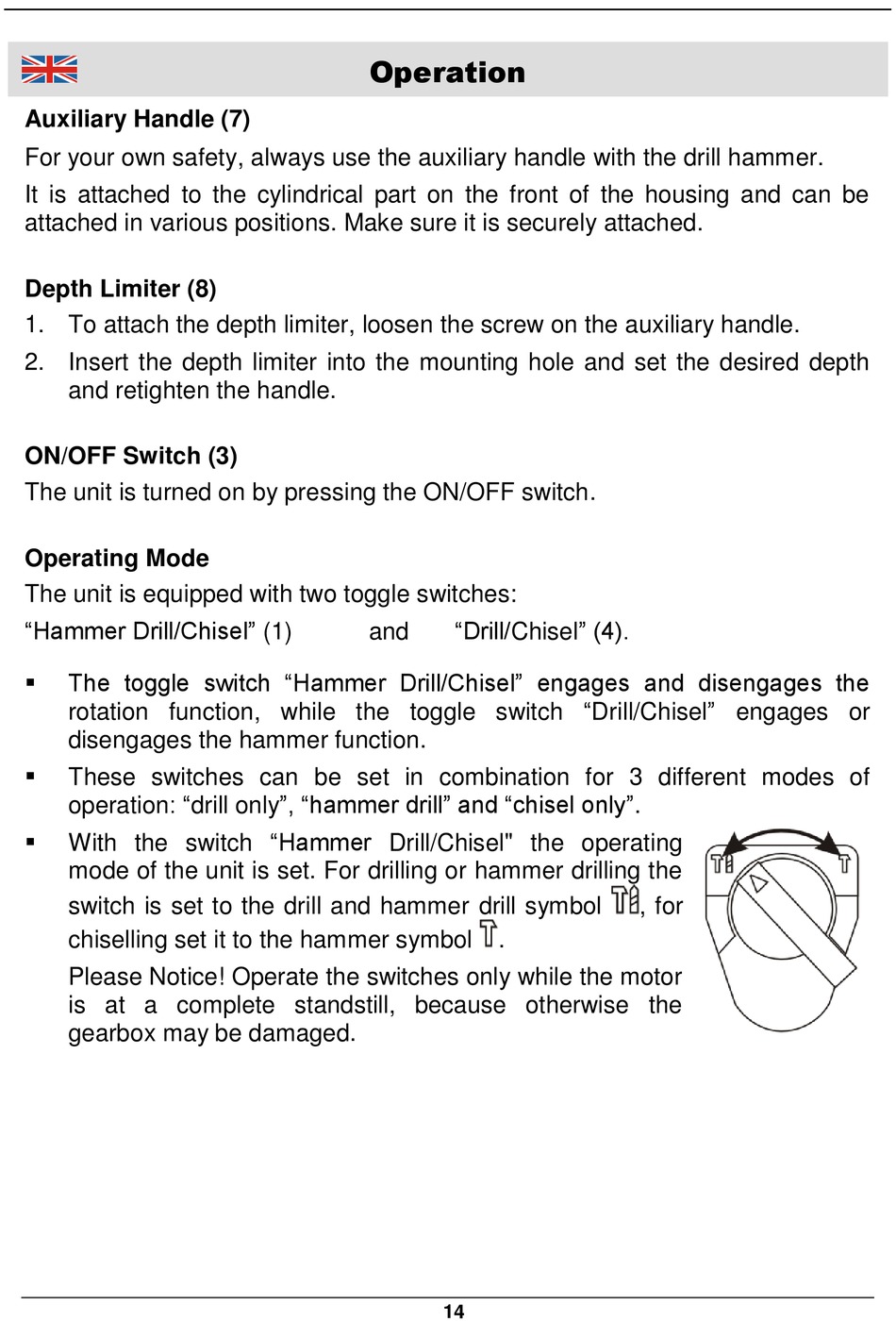

Auxiliary Handle; Depth Limiter; On/Off Switch; Operating Mode - Westfalia 34 07 45 Bedienungsanleitung

Auxiliary Handle (7)

For your own safety, always use the auxiliary handle with the drill hammer.
It is attached to the cylindrical part on the front of the housing and can be
attached in various positions. Make sure it is securely attached.

Depth Limiter (8)

1. To attach the depth limiter, loosen the screw on the auxiliary handle.
2. Insert the depth limiter into the mounting hole and set the desired depth
and retighten the handle.

ON/OFF Switch (3)

The unit is turned on by pressing the ON/OFF switch.

Operating Mode

The unit is equipped with two toggle switches:
"Hammer Drill/Chisel" (1)
 The toggle switch "Hammer Drill/Chisel" engages and disengages the
rotation function, while the toggle switch "Drill/Chisel" engages or
disengages the hammer function.

These switches can be set in combination for 3 different modes of
operation: "drill only", "hammer drill" and "chisel only".
With the switch "Hammer Drill/Chisel" the operating

mode of the unit is set. For drilling or hammer drilling the
switch is set to the drill and hammer drill symbol
chiselling set it to the hammer symbol
Please Notice! Operate the switches only while the motor
is at a complete standstill, because otherwise the
gearbox may be damaged.
Operation
"Drill/Chisel" (4).
and
.
14
, for
